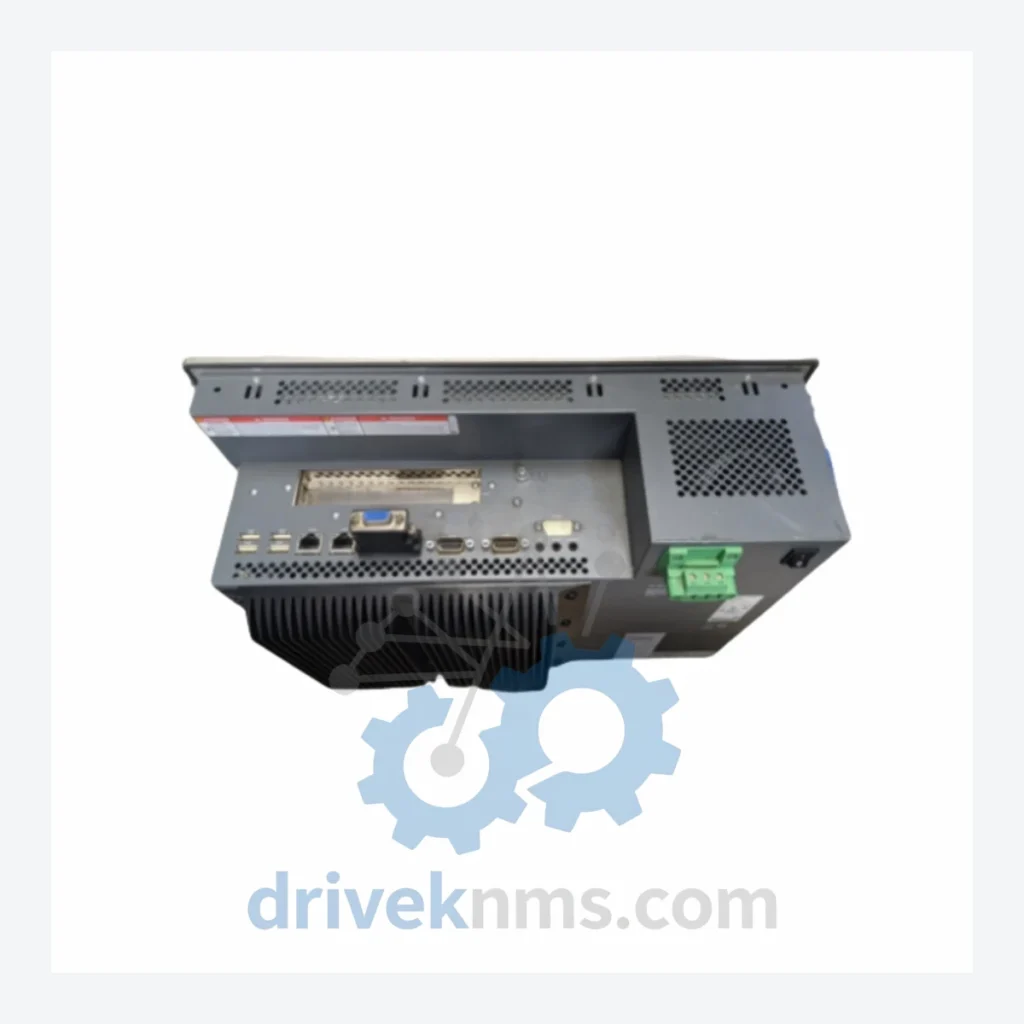

Pro-face PFXPF160DA33P00N00

Technical Dossier

Product Details And Specifications

Pro-face SP5000 Series Technical Notes

The Pro-face SP5000 series represents one of the most widely deployed Human-Machine Interface (HMI) platforms in global heavy industry. Manufactured by Schneider Electric's Pro-face division (formerly Digital Electronics Corporation), the SP5000 family is installed across petrochemical refineries, nuclear power auxiliary systems, chemical processing plants, and continuous manufacturing lines throughout Asia, Europe, and North America. Its modular architecture — separating the display unit from the logic unit — made it a preferred platform for system integrators requiring flexible panel configurations without full controller replacement. The series supports multi-protocol communication, enabling integration with Mitsubishi, Siemens, Omron, Rockwell, and Modbus-based PLCs, which accounts for its broad installed base across mixed-vendor automation environments.

SP5000 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the Pro-face SP5000 ecosystem. Units are classified by functional role:

Display Front Units (Touch Panel)

• PFXPF160DA33P00N00: 15-inch TFT color touch display front unit, 1024×768 XGA, IP65 front face, for SP5000 split-body configuration
• PFXPF120DA33P00N00: 12.1-inch TFT color touch display front unit, 800×600 SVGA, IP65 front face, SP5000 compatible
• PFXPF100DA33P00N00: 10.4-inch TFT color touch display front unit, 640×480 VGA, analog resistive touch, SP5000 series
• PFXPF080DA33P00N00: 8.4-inch TFT color touch display front unit, 800×600 SVGA, SP5000 split-body front panel
• PFXPF057DA33P00N00: 5.7-inch STN color touch display front unit, 320×240 QVGA, compact panel mount, SP5000 series

Logic/Communication Units (PS Series)

• PFXPS1600WA: SP5000 logic unit, 800MHz CPU, 256MB RAM, 512MB flash, dual Ethernet, USB host/device
• PFXPS1600WB: SP5000 logic unit enhanced variant, expanded protocol support, PROFIBUS-DP slave option
• PFXPS1600CA: SP5000 logic unit with CompactFlash slot, legacy communication card support
• PFXPS1600CB: SP5000 logic unit, CF slot, extended temperature range (-10°C to +55°C operating)

Communication Option Cards

• PFXZCBDP1: PROFIBUS-DP slave communication card for SP5000 PS logic unit
• PFXZCBDN1: DeviceNet slave communication card, SP5000 option slot compatible
• PFXZCBCC1: CC-Link slave communication card for SP5000 series
• PFXZCBFL1: FL-net (OPCN-2) communication card, SP5000 compatible

Power Supply & Accessories

• PFXZPBAT1: Lithium backup battery for SP5000 PS logic unit, 3.6V, clock and SRAM retention
• PFXZPBAT2: Extended-life lithium battery pack, SP5000 series, 5-year rated service life
• PFXZCFMEM1G: 1GB CompactFlash memory card, SP5000 PS unit compatible, industrial-grade
• PFXZPANEL1: Replacement gasket/seal kit for SP5000 PF display front units, IP65 maintenance

Quality Control for the SP5000 Range

SP5000 modules undergo a structured multi-stage inspection protocol at DriveKNMS prior to shipment. Display front units (PF series) are tested for touch panel linearity across the full active area using automated grid-point calibration, backlight uniformity (measured at ≥80% of rated luminance), and pixel integrity screening. The proprietary backplane connector between PF and PS units — a known wear point in high-cycle-replacement environments — is inspected under magnification for pin deformation and contact oxidation.
