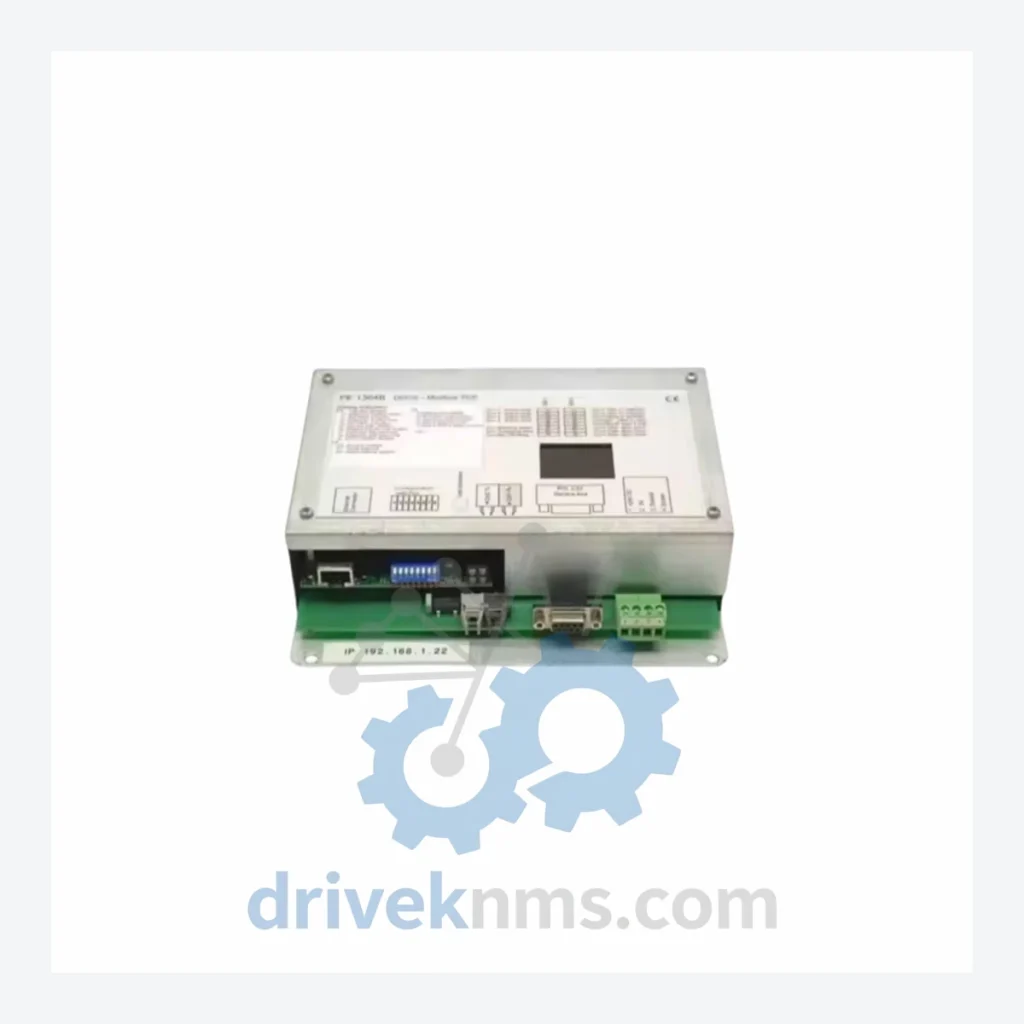

PROCESSELEKTRONIK PE1364B DDCS-MODBUS TCP Protocol Converter – Obsolete Spare Part

When a PE1364B fails in a running production line, the consequences are rarely limited to a single module replacement. This unit serves as the communication bridge between DDCS-based drive systems — typically ABB ACS/DCS series drives — and Modbus TCP supervisory networks. Its failure severs the data link between the drive layer and the control layer entirely. For facilities that have not secured a replacement unit, the realistic outcome is either an unplanned production halt or a forced migration to a modern drive architecture — a project that routinely costs hundreds of thousands to several million dollars in engineering, commissioning, and lost output. DriveKNMS holds verified stock of the PE1364B. This is not a commodity item. Availability is finite.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on known product function and interface type. No parameters have been fabricated.

Solving the Discontinued Hardware Crisis

The PE1364B occupies a role that cannot be substituted with a generic Modbus gateway. DDCS is a proprietary ABB fiber-optic protocol used in legacy drive systems deployed widely through the 1990s and 2000s. The PE1364B was one of a narrow set of third-party devices capable of bridging DDCS drives into standard Ethernet-based Modbus TCP supervisory architectures — making it a critical integration component in plants that chose not to use ABB's own communication modules.

With PROCESSELEKTRONIK having discontinued this product line, there is no direct factory replacement. Plants still operating ABB drives with DDCS interfaces face a hard choice: locate remaining stock of the PE1364B, or undertake a full drive replacement program. The latter is not a maintenance decision — it is a capital project. For a mid-size production line with 10–20 drive nodes, a full migration typically involves new drives, new cabling infrastructure, updated PLC programming, and extended commissioning downtime. Total cost routinely exceeds USD 500,000 before accounting for lost production.

Extending the operational life of existing DDCS-based drive systems by 5 to 10 years through strategic spare part procurement is, by any financial measure, the lower-risk path. A single PE1364B unit — properly sourced and validated — can sustain an entire drive communication network for years. The asset protection logic is straightforward: the drives themselves are mechanically sound; the communication layer is the vulnerability. Addressing that vulnerability with a verified spare costs a fraction of the alternative.

For plant managers facing pressure to modernize aging automation infrastructure, the most defensible near-term position is to secure critical interface components now, while stock exists in the secondary market, and defer capital-intensive system replacement until it is operationally justified — not forced by a single component failure.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all obsolete and legacy components before shipment:

• Step 1 – Visual and Physical Inspection: Full external inspection for mechanical damage, corrosion on connector pins, and board-level contamination. Units with oxidized or pitted contacts are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are a primary failure mode in electronics manufactured in the 1990s–2000s. Each unit is assessed for capacitor condition; units showing visible bulging, leakage, or ESR anomalies are flagged.
• Step 3 – Firmware Version Verification: Where accessible, firmware version is documented and cross-referenced against known compatible versions for the target drive system.
• Step 4 – Functional Communication Test: DDCS and Modbus TCP interfaces are tested for signal integrity and correct protocol response where test infrastructure permits.
• Step 5 – Packaging and ESD Protection: Units are packed in anti-static shielding bags with desiccant and rigid outer packaging to prevent transit damage.

Condition is disclosed accurately at time of quotation: new-in-box (NIB), unused surplus, or professionally refurbished. No unit is represented as new unless it is confirmed factory-sealed.

Key Features for System Maintenance

• Drop-in replacement: The PE1364B installs into the existing mounting position and connects to existing DDCS fiber and Ethernet cabling without hardware modification.
• No reprogramming required: The unit operates as a transparent protocol bridge. Drive parameters and Modbus register mappings configured in the original installation remain valid.
• Avoids engineering reconstruction costs: Replacing this unit does not trigger a requirement to re-engineer the drive communication architecture, update PLC logic, or recertify the control system.
• Preserves existing drive investment: ABB drives with DDCS interfaces represent significant capital investment. The PE1364B allows those drives to remain in service and in communication with modern supervisory systems.
• Reduces unplanned downtime exposure: Holding a verified spare eliminates the sourcing lead time — which for obsolete components can range from weeks to months — from the failure-to-recovery timeline.

FAQ

What warranty applies to an obsolete part like the PE1364B?
DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New-in-box surplus units carry a 180-day warranty. Warranty covers functional failure under normal operating conditions and excludes physical damage caused after delivery.

How do I confirm the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for manufacturer markings, PCB labeling, and component consistency. We do not source from unverified brokers. Provenance documentation is provided where available. If you require additional authentication steps, contact us before purchase.

Should I buy more than one unit?
For any system where the PE1364B is a single point of failure in the drive communication network, holding at least one cold spare is a minimum prudent position. For facilities with multiple DDCS-to-Modbus nodes, a proportional spare ratio should be considered. Once secondary market stock is exhausted, no further sourcing options exist.

Can DriveKNMS source other PROCESSELEKTRONIK or DDCS-related components?
Yes. Contact us with your full bill of materials for legacy drive system components. We maintain sourcing relationships across the secondary market for discontinued industrial automation parts.
