ProSoft MVI56-DNP DNP3 Network Interface Module – Obsolete ControlLogix Spare Part

Technical Dossier

Product Details And Specifications

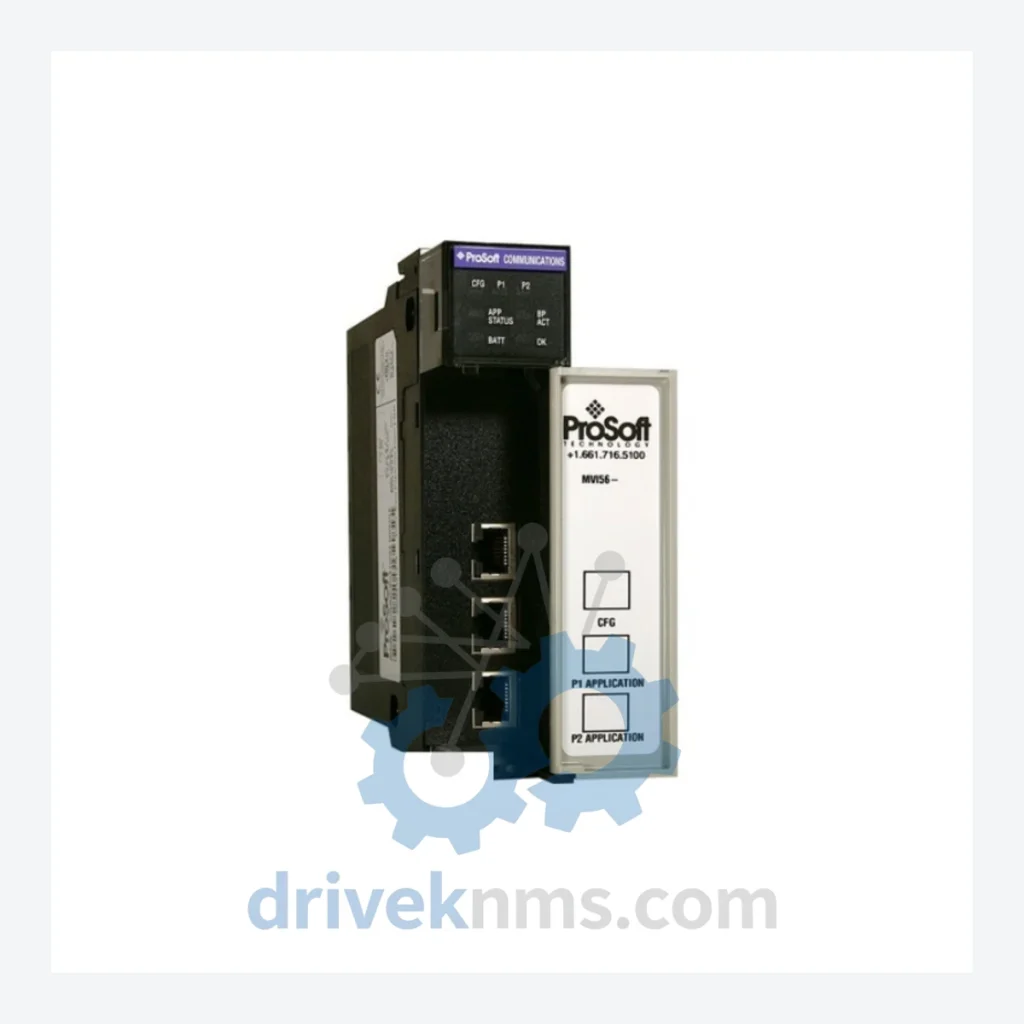

ProSoft MVI56-DNP DNP3 Network Interface Module – Obsolete ControlLogix Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The MVI56-DNP was purpose-built for DNP3 communication in utility, water treatment, oil & gas, and substation automation environments where the protocol is mandated by grid operators and regulatory bodies. DNP3 is not a generic industrial protocol — it carries time-stamped event data, supports unsolicited reporting, and handles data integrity requirements that Modbus or EtherNet/IP cannot replicate without significant re-engineering.

Facilities running Allen-Bradley ControlLogix systems with MVI56-DNP modules face a specific problem: the module's discontinuation does not retire the protocol requirement. Grid interconnection agreements, NERC CIP compliance frameworks, and legacy RTU field devices continue to demand DNP3 communication. Replacing the MVI56-DNP with a next-generation alternative requires firmware re-mapping, updated ladder logic, re-commissioning of all connected field devices, and in many cases, re-certification of the communication link with the utility operator. That process takes months and carries six-figure engineering costs at minimum.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

How to extend your ControlLogix / DNP3 infrastructure lifespan by 5–10 years:

Condition & Reliability Assurance

Discontinued modules sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a 5-step QA protocol to every MVI56-DNP unit before dispatch review:

1. Electrolytic Capacitor Inspection: Capacitor aging is the primary failure mode in modules manufactured before 2015. Each unit undergoes ESR (Equivalent Series Resistance) measurement on all electrolytic capacitors. Units showing degradation are rejected.
2. Firmware Version Verification: The installed firmware revision is read and documented. Customers receive the exact firmware version with their shipment to ensure compatibility with their existing RSLogix / Studio 5000 project.
3. Pin and Connector Corrosion Check: Backplane connector pins and serial port terminals are inspected under magnification for oxidation, mechanical deformation, and contamination. Affected pins are cleaned or the unit is rejected.
4. Functional Communication Test: Each module is powered in a ControlLogix test chassis and a live DNP3 master/slave communication session is established and verified before release.
5. Static-Safe Packaging: Units are shipped in anti-static bags with foam cushioning inside double-wall cartons. Shipping damage is the second most common cause of DOA modules from unqualified suppliers.

Key Features for System Maintenance

• Drop-in replacement: The MVI56-DNP installs directly into any 1756 ControlLogix chassis slot. No chassis modification, no new wiring infrastructure.
• No reprogramming required: With a retained .cfg configuration file, the replacement module loads the existing DNP3 channel and data map configuration. The PLC program does not require modification.
• Avoids engineering reconstruction costs: Migrating from MVI56-DNP to any alternative platform requires protocol translation layer development, I/O remapping, and field device re-commissioning. A like-for-like spare eliminates all of that.
• Preserves regulatory compliance: In utility and water/wastewater environments, the DNP3 communication link is often part of a certified SCADA architecture. Changing the module type may trigger re-certification. A direct replacement does not.
