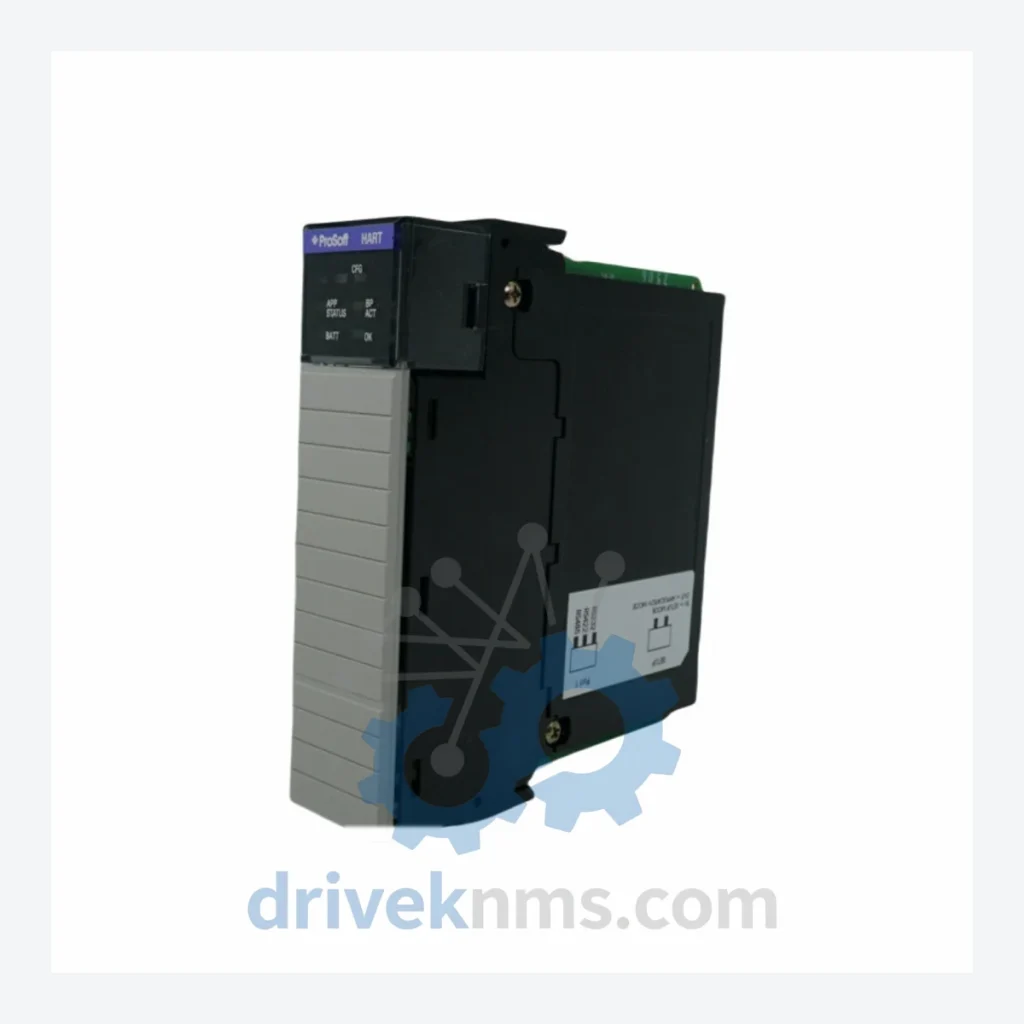

ProSoft MVI56-HART Communication Module – Obsolete ControlLogix Spare Part

Technical Dossier

Product Details And Specifications

ProSoft MVI56-HART Communication Module – Obsolete ControlLogix Spare Part

When a HART communication module fails on a ControlLogix-based process control system, the consequences extend far beyond a single instrument loop. A full platform migration — from engineering assessment and hardware procurement to PLC reprogramming, loop re-commissioning, and operator retraining — routinely costs manufacturing facilities between $500,000 and several million USD, depending on system scale. The MVI56-HART is no longer in active production. Finding a verified, functional unit through standard distribution channels is no longer straightforward. DriveKNMS maintains physical stock of this module, sourced through controlled industrial asset recovery channels, for facilities that cannot afford the disruption of a forced upgrade.

Technical Specifications

Solving the Discontinued Hardware Crisis

The MVI56-HART was deployed extensively in oil & gas, chemical processing, water treatment, and pharmaceutical manufacturing facilities where HART-enabled field instruments — pressure transmitters, flow meters, valve positioners — required direct in-rack integration with a ControlLogix controller. The module handled HART primary variable polling, device status monitoring, and multi-drop network management without requiring a separate HART multiplexer or gateway infrastructure.

With ProSoft Technology having discontinued this product line, facilities running this module face a hard choice: locate a verified replacement unit, or undertake a full HART integration redesign. The redesign path typically involves replacing the MVI56-HART with a newer gateway architecture, rewriting ladder logic or function block routines, re-mapping all HART device tags, and re-validating instrument loops — a process that in regulated industries such as pharmaceuticals or upstream oil & gas can require months of engineering work and formal change control documentation.

For plant managers and reliability engineers operating facilities where this module is embedded in a validated or long-running control architecture, the calculus is straightforward: a verified spare unit at a fraction of the redesign cost preserves operational continuity, protects the existing validated configuration, and defers capital expenditure to a planned maintenance window rather than an emergency shutdown.

How to extend your ControlLogix-based HART system life by 5–10 years:

• Maintain a minimum two-unit spare inventory. A single spare is a single point of failure. For critical process loops, two units on the shelf is the baseline for a defensible maintenance strategy.
• Document your current firmware and configuration files. Before any module swap, archive the existing RSLogix 5000 / Studio 5000 project file and the ProSoft Configuration Builder (PCB) configuration. This eliminates re-engineering time during an emergency replacement.
• Audit HART device revisions against module compatibility. As field instruments are replaced over time, newer HART device revisions may interact differently with legacy master modules. Periodic compatibility audits prevent silent communication degradation.
• Negotiate long-term supply agreements for critical obsolete parts. Spot-market pricing for discontinued modules increases as remaining inventory globally contracts. Locking in supply now, at current pricing, is a measurable cost-avoidance action.
• Schedule module health checks during planned shutdowns. Electrolytic capacitor degradation and connector oxidation are the primary failure modes for modules of this age. Proactive inspection during scheduled downtime prevents unplanned outages.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality process to all obsolete and legacy modules before shipment:

1. Visual and mechanical inspection: Enclosure integrity, PCB surface condition, connector pin examination for oxidation, corrosion, or mechanical deformation.
2. Electrolytic capacitor assessment: Modules of this production era are susceptible to capacitor aging. Units showing evidence of capacitor bulge, leakage, or ESR deviation are quarantined and not offered for sale.
3. Firmware version verification: Where accessible, firmware revision is documented and disclosed to the buyer prior to shipment to confirm compatibility with the target system.
4. Functional bench test: Communication and backplane interface functionality is verified under controlled conditions prior to packaging.
5. Secure anti-static packaging: All units are packaged in ESD-protective materials with humidity indicator cards for long-distance or long-term storage shipments.

Key Features for System Maintenance

• Drop-in replacement: The MVI56-HART installs directly into an existing 1756 ControlLogix chassis slot. No chassis modification, no new wiring infrastructure.
• No PLC reprogramming required: A replacement unit with a restored PCB configuration file restores full operation without changes to the controller program — preserving your validated logic and avoiding change control triggers.
• Avoids engineering reconstruction costs: Replacing this module with a verified spare eliminates the need for HART gateway redesign, tag remapping, and loop re-commissioning — costs that routinely reach tens of thousands of dollars in engineering labor alone.
• Supports multi-drop HART topologies: Maintains existing field wiring architecture; no instrument rewiring required.

FAQ

What warranty applies to this obsolete module?
DriveKNMS provides a 90-day functional warranty on all tested units. Warranty covers failure under normal operating conditions and excludes damage from incorrect installation or electrical overstress.

How do I confirm the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for label authenticity, PCB markings, and component consistency against known-good reference units. We do not sell units that fail authentication checks. Documentation of inspection results is available upon request.

Should I purchase more than one unit?
For any process-critical application, yes. Global inventory of discontinued ProSoft MVI56-series modules is finite and contracting. Facilities that have secured two or more spares have eliminated the risk of an unplanned production halt due to module unavailability. We recommend assessing your MTBF data and planned system retirement timeline when determining quantity.

Can you source specific firmware revisions?
We will disclose the firmware revision of available units prior to order confirmation. If a specific revision is required for compatibility, contact us before purchasing.
