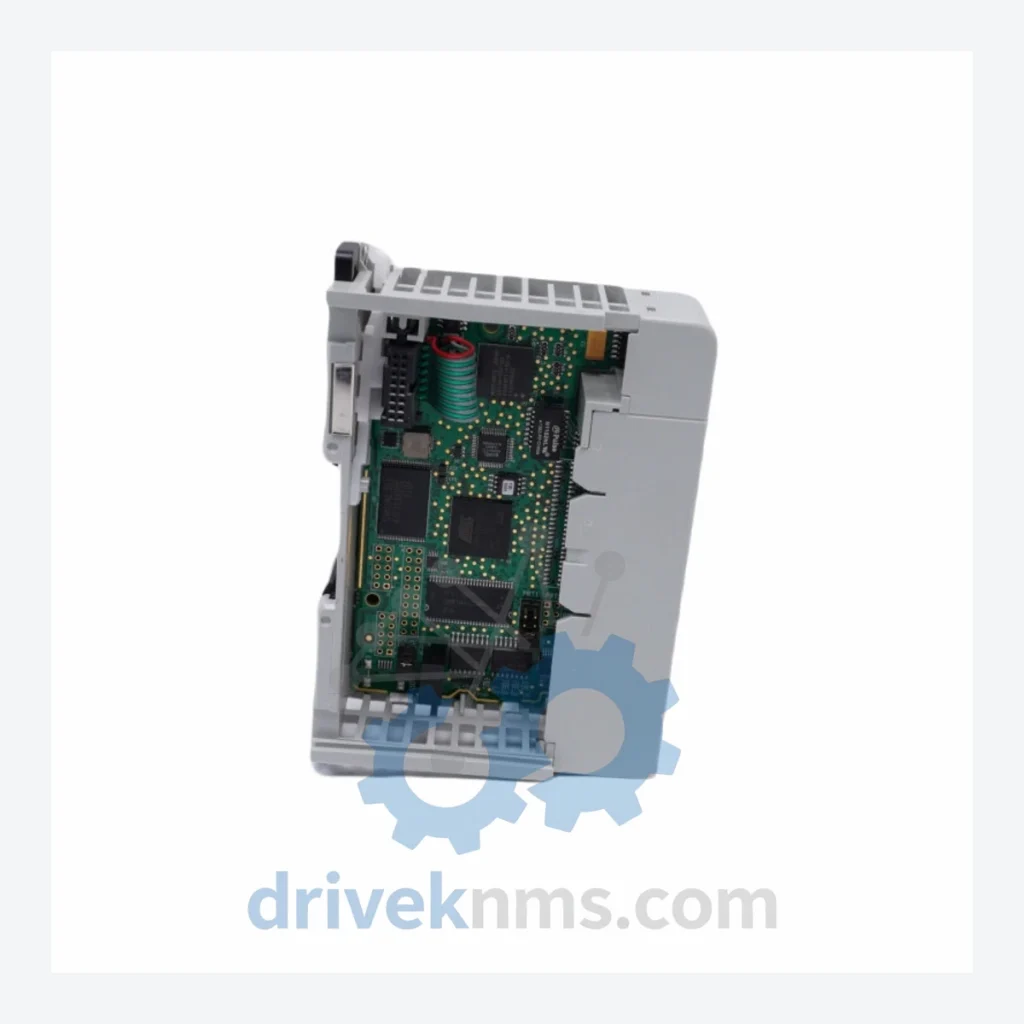

ProSoft MVI69L-MBS Modbus Serial Communication Module – Obsolete CompactLogix Spare Part

Technical Dossier

Product Details And Specifications

ProSoft MVI69L-MBS Modbus Serial Communication Module – Obsolete CompactLogix Spare Part

When a ProSoft MVI69L-MBS fails on the production floor, the consequences extend far beyond a single module replacement. For plants running Allen-Bradley CompactLogix-based control architectures with legacy Modbus RTU/ASCII serial device networks — meters, drives, analyzers, and remote I/O — this module is the communication backbone. Its failure severs the data path between the PLC and field devices, forcing a choice between an unplanned shutdown and an emergency system redesign. A full migration to a modern communication platform, including engineering hours, new hardware, re-commissioning, and production downtime, routinely exceeds six figures. DriveKNMS maintains verified stock of the MVI69L-MBS specifically to eliminate that forced decision. Securing a spare now is not a procurement exercise — it is asset protection.

Technical Specifications

Solving the Discontinued Hardware Crisis

The MVI69L-MBS occupies a specific and non-trivial role in CompactLogix control systems: it provides a native 1769 backplane interface for Modbus serial device networks without requiring any external gateway hardware. Plants that built their automation architecture around this module — connecting legacy energy meters, variable frequency drives, flow analyzers, and third-party RTUs via RS-485 — cannot simply swap in a modern Ethernet-based alternative without modifying PLC ladder logic, updating I/O mapping, and re-validating the entire control loop.

ProSoft Technology has discontinued the MVI69L-MBS. The OEM no longer manufactures or supports this part. For facilities operating under FDA validation, ISO process controls, or safety-certified environments, re-engineering the communication layer is not a routine maintenance task — it triggers a formal change control process that can take months and cost more than the original system installation. The only operationally viable path for most plants is to maintain a physical spare of the MVI69L-MBS itself. One module on the shelf eliminates the re-engineering risk entirely and extends the productive life of the existing control system by years.

For plant managers facing capital budget pressure, the arithmetic is straightforward: the cost of a verified spare MVI69L-MBS is a fraction of the engineering and downtime cost of a forced migration. Facilities that have adopted a proactive spare-parts strategy for discontinued communication modules consistently report 5 to 10 additional years of productive asset life from their existing CompactLogix infrastructure — without a single line of PLC code changed.

Condition & Reliability Assurance

Discontinued modules sourced from the secondary market carry real risk. DriveKNMS applies a structured 5-step inspection protocol before any MVI69L-MBS unit is offered for sale:

• Electrolytic Capacitor Assessment: Capacitors are the primary failure point in aged electronics. Each unit is inspected for bulging, leakage, and ESR deviation from specification.
• Firmware Version Verification: The installed firmware version is confirmed and documented. Mismatched firmware between a replacement module and the host CompactLogix project can cause silent communication errors.
• Pin and Connector Inspection: All backplane connector pins are examined under magnification for corrosion, mechanical deformation, and oxidation that would cause intermittent contact faults.
• Functional Communication Test: Where test equipment permits, the module's serial port and backplane communication are verified against known-good parameters.
• Physical and Label Integrity Check: Unit condition, serial number traceability, and label authenticity are documented prior to shipment.

Key Features for System Maintenance

• Drop-in Replacement: The MVI69L-MBS installs directly into the 1769 CompactLogix backplane. No hardware modifications to the rack or chassis are required.
• No PLC Reprogramming Required: A replacement unit of the same part number restores communication without changes to the existing ladder logic or ProSoft Configuration Builder project file, provided firmware versions are matched.
• Avoids Engineering Redesign Costs: Substituting a gateway or Ethernet-based alternative requires I/O remapping, logic modification, and system re-validation. A like-for-like MVI69L-MBS replacement eliminates all of that cost.
• Supports Long-Term Spare Parts Strategy: For facilities with multiple CompactLogix systems using Modbus serial devices, holding two or more MVI69L-MBS units in bonded inventory is a recognized best practice for business continuity planning.

FAQ

What warranty applies to a discontinued module?
DriveKNMS provides a limited warranty on all units sold. Warranty terms are confirmed at the time of quotation and vary based on unit condition (new surplus vs. refurbished). Contact us for specifics before purchase.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for label authenticity, serial number format, and physical construction consistent with genuine ProSoft Technology manufacturing. We do not sell units that fail this check.

Should I buy more than one unit?
For any production-critical system running a discontinued communication module, holding at least one cold spare is the minimum prudent position. For multi-line facilities or systems where downtime cost exceeds USD 10,000 per hour, two or more spares is the standard recommendation among reliability engineers.

Can this module work with my existing ProSoft Configuration Builder project?
In most cases, yes — provided the replacement unit carries the same or compatible firmware version. DriveKNMS documents the firmware version of each unit prior to shipment so you can verify compatibility before installation.
