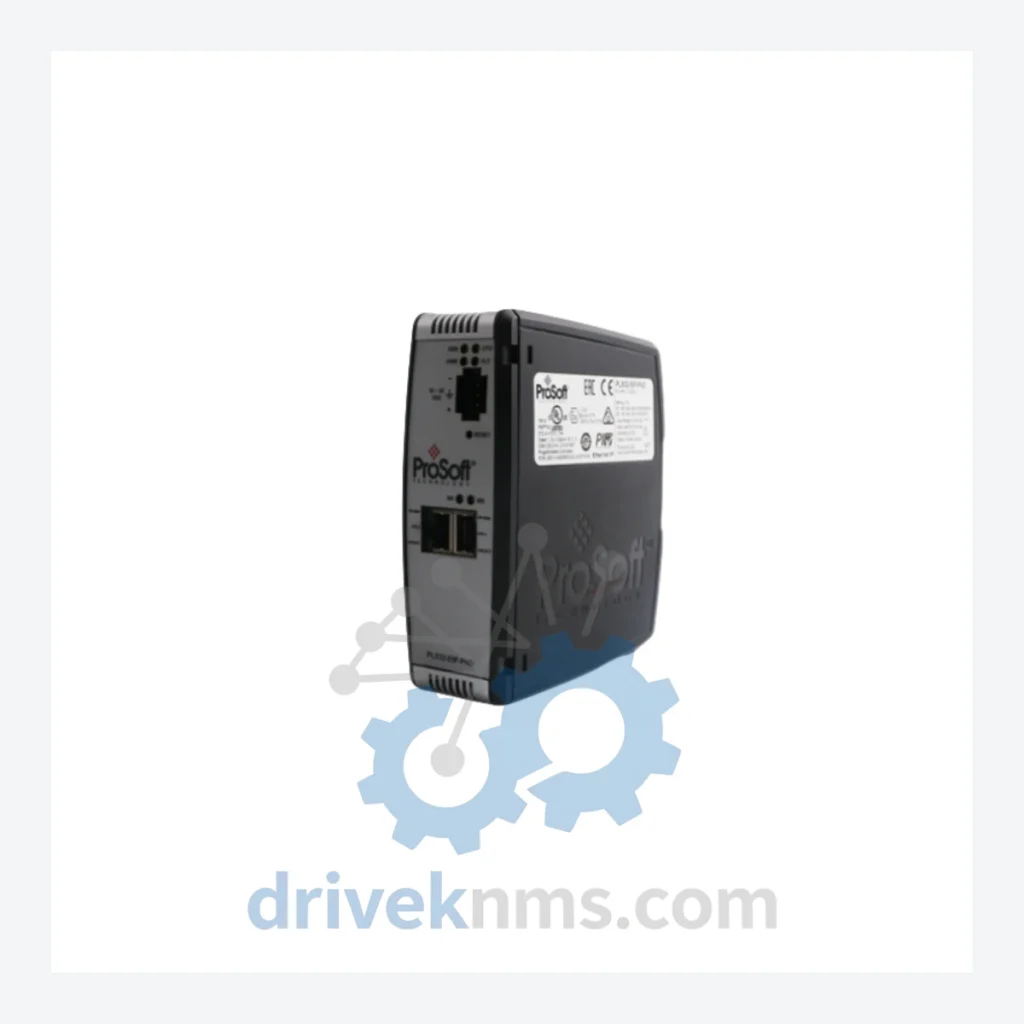

ProSoft PLX32-EIP-PND Communication Gateway – Obsolete EtherNet/IP to PROFINET Spare Part

Technical Dossier

Product Details And Specifications

ProSoft PLX32-EIP-PND Communication Gateway – Obsolete EtherNet/IP to PROFINET Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The PLX32-EIP-PND was widely deployed in hybrid automation environments where Rockwell Automation controllers needed to communicate with Siemens-based PROFINET field devices — or vice versa. These installations are common in automotive body shops, food and beverage packaging lines, and chemical processing plants where multi-vendor equipment coexists on a single production floor.

With the PLX32-EIP-PND now discontinued, plant engineers face a procurement dead end through standard distribution channels. The module's configuration data — including tag mappings, I/O sizes, and connection parameters — is embedded in the existing PLC program. Replacing it with a different gateway model requires rewriting those program blocks, re-mapping every I/O tag, and conducting a full Factory Acceptance Test (FAT). In a 24/7 operation, scheduling that work alone can take 6 to 18 months.

Sourcing an identical PLX32-EIP-PND eliminates that engineering burden entirely. The replacement drops into the existing DIN-rail slot, accepts the same configuration file, and restores communication without touching a single line of PLC code. For maintenance managers operating under capital expenditure freezes, this is not a workaround — it is the only financially defensible path.

How to extend your automation asset life by 5–10 years using critical spare parts:

Condition & Reliability Assurance

Every PLX32-EIP-PND unit shipped by DriveKNMS passes a structured 5-step quality verification process before dispatch:

1. Visual and mechanical inspection: Housing integrity, DIN-rail clip condition, and RJ45 port pin alignment are checked against OEM tolerances.
2. Electrolytic capacitor assessment: Aging capacitors are the primary failure mode in gateway electronics stored beyond 5 years. Each unit undergoes ESR (Equivalent Series Resistance) testing to identify degraded capacitors before they cause field failure.
3. Firmware version verification: The installed firmware is documented and cross-referenced against known compatibility matrices for common EtherNet/IP and PROFINET stack versions.
4. Pin and connector corrosion inspection: All I/O connectors and communication ports are inspected under magnification for oxidation, tin whisker growth, and contact resistance anomalies.
5. Functional power-on test: Where test infrastructure permits, units are powered and communication link establishment is verified on both network interfaces.

Units are classified as New (factory-sealed), Refurbished (tested and reconditioned to functional specification), or Used-Tested (pulled from service, fully tested). Condition is stated explicitly on every quotation and invoice.

Key Features for System Maintenance

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Can you supply the configuration software?
ProSoft Configuration Builder (PCB), the software used to configure PLX32-series gateways, is available from ProSoft Technology's website. We can advise on version compatibility for your specific firmware revision.
