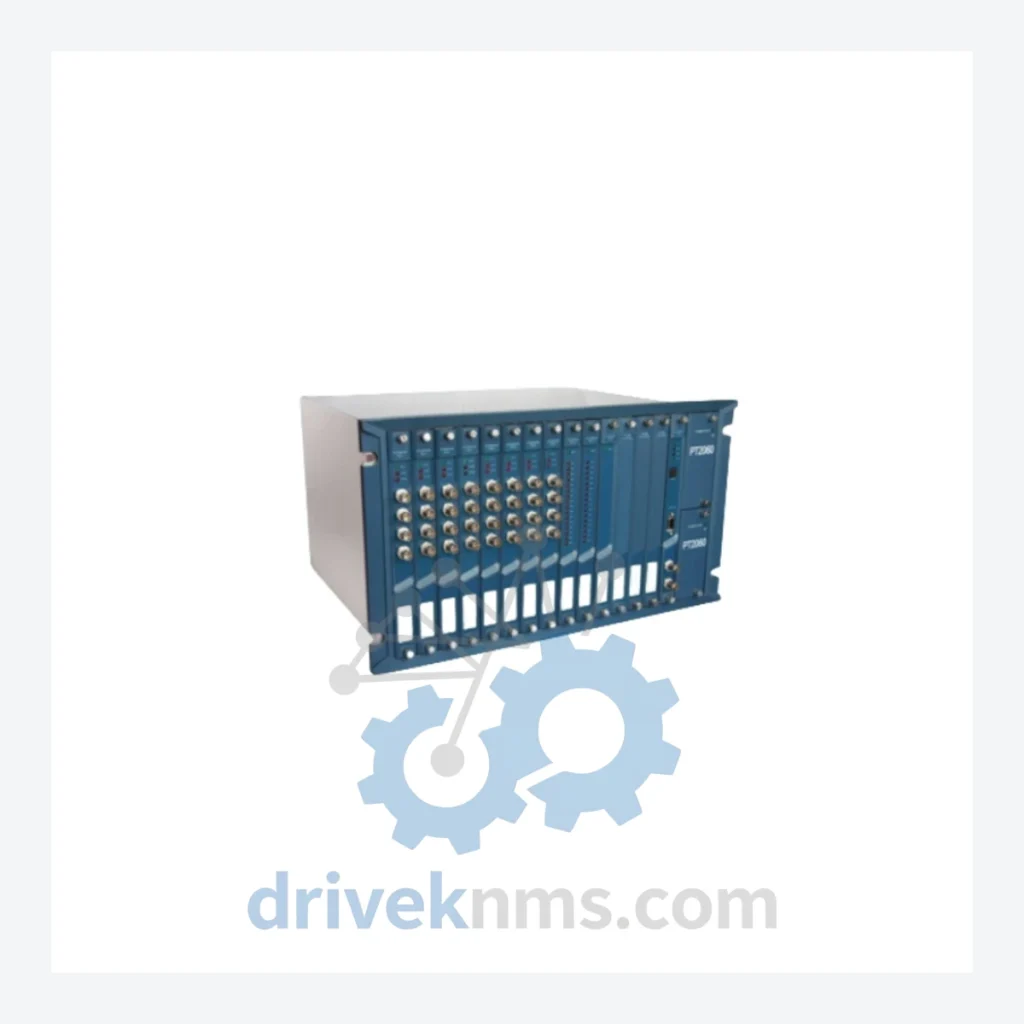

ProvibTech PT2060 Monitors

Technical Dossier

Product Details And Specifications

ProvibTech PT2060 Series: Comprehensive Module Range and Technical Overview

The ProvibTech PT2060 series is a line of continuous vibration monitoring modules engineered for permanent installation in rotating machinery protection systems. Deployed across petrochemical refineries, offshore platforms, nuclear auxiliary systems, and heavy industrial compressor trains, the PT2060 platform occupies a critical position in the global condition monitoring infrastructure. Its modular rack-based architecture allows plant engineers to configure channel-specific monitoring for displacement, velocity, and acceleration signals, making it a standard reference in API 670-compliant machinery protection installations. The series is compatible with eddy-current proximity probes, seismic velocity transducers, and accelerometers, covering the full spectrum of rotating equipment diagnostics from low-speed turbines to high-speed centrifugal compressors.

The Evolution of PT2060 Architecture

The PT2060 platform was developed by ProvibTech (formerly a division of Provibtech S.A.) as a direct-mount, DIN-rail and rack-compatible monitoring solution targeting the mid-tier machinery protection market. Early revisions of the PT2060 used analog signal conditioning with discrete relay outputs, conforming to the 4–20 mA transmission standard prevalent in 1990s DCS integration. Subsequent hardware revisions introduced configurable alarm setpoints via front-panel DIP switches, followed by later firmware-enabled digital configuration interfaces. The /40 channel designation in the PT2060/40 refers to the 4–20 mA output channel count and relay configuration specific to that module variant. As Bently Nevada 3500 and Emerson CSI systems expanded their market share, ProvibTech positioned the PT2060 as a cost-effective alternative with equivalent API 670 compliance. The series entered its mature phase in the 2010s; current installations are predominantly in brownfield sites where replacement with newer platforms (such as the ProvibTech PT8800 or third-party systems) is cost-prohibitive. Long-term maintenance support, including spare channel cards and relay output boards, remains the primary commercial driver for this series.

PT2060 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the ProvibTech PT2060 series, classified by functional category:

Vibration Monitor Modules

• PT2060/40: 4-channel 4–20 mA output vibration monitor, relay alarm, rack-mount
• PT2060/20: 2-channel vibration monitor module, dual relay output, DIN-rail compatible
• PT2060/80: 8-channel expansion vibration monitor, high-density rack configuration
• PT2060/41: 4-channel monitor with ATEX-rated enclosure for hazardous area Zone 1
• PT2060/42: 4-channel monitor with extended temperature range (-40°C to +70°C)
• PT2060/43: 4-channel monitor with Modbus RTU communication output
• PT2060/44: 4-channel monitor with HART protocol overlay on 4–20 mA loop

Proximity Probe / Displacement Input Modules

• PT2060/10: Single-channel eddy-current proximity probe interface, 5 mm or 8 mm probe compatible
• PT2060/11: Dual-channel proximity probe module, differential shaft displacement measurement
• PT2060/12: Thrust position monitor module, dual-channel, API 670 compliant
• PT2060/13: Radial vibration monitor, proximity probe input, 200 mV/mil sensitivity

Velocity & Acceleration Input Modules

• PT2060/21: Seismic velocity transducer input module, 4–20 mA output, single channel
• PT2060/22: Dual-channel velocity monitor, integrated RMS computation, relay output
• PT2060/30: Accelerometer input module, ICP/IEPE signal conditioning, single channel
• PT2060/31: Dual-channel accelerometer monitor, high-frequency response to 10 kHz

Power Supply & Rack Infrastructure

• PT2060/PS: Dedicated rack power supply module, 24 VDC input, redundant output rails
• PT2060/RK: 19-inch rack chassis, 8-slot capacity, backplane bus for PT2060 modules
• PT2060/RK16: 19-inch rack chassis, 16-slot expanded capacity, dual power supply bays

Sourcing Hard-to-Find & Obsolete PT2060 Parts

The PT2060 series is classified as a mature/end-of-life product line. ProvibTech has transitioned its active development resources to the PT8800 and PT9000 platforms. As a result, OEM factory lead times for PT2060 modules are extended or unavailable for certain variants, and new production runs are not guaranteed. DriveKNMS maintains a dedicated inventory of tested PT2060 modules sourced from decommissioned plant assets, authorized surplus channels, and direct OEM overstock. For operators running PT2060-based protection systems in refineries, LNG terminals, or power generation facilities, DriveKNMS provides: (1) exact-match replacement modules with full functional verification; (2) cross-reference analysis to identify compatible substitute modules where direct replacements are unavailable; (3) emergency same-day dispatch for critical plant shutdown scenarios; (4) long-term consignment stocking agreements for operators with multi-unit PT2060 installations. All sourced units are accompanied by test reports and traceability documentation suitable for inclusion in plant maintenance records.

Quality Control for the PT2060 Range

PT2060 modules present specific verification challenges due to their analog signal conditioning architecture and relay-based alarm output circuits. DriveKNMS applies the following test protocol to all PT2060 units prior to dispatch: (1) Power-on functional test: module energized at rated 24 VDC, current draw verified against OEM specification; (2) Signal chain calibration check: input signal injected at 0%, 50%, and 100% of full-scale range; 4–20 mA output verified at each setpoint using calibrated loop calibrator; (3) Relay output verification: alarm and danger relay contacts exercised through full setpoint threshold cycle; contact resistance measured; (4) Proximity probe driver test (for /10, /11, /12, /13 variants): driver oscillator frequency and gap voltage verified against probe type specification; (5) Insulation resistance test: 500 VDC megger test applied to I/O terminals to verify isolation integrity; (6) Backplane connector inspection: edge connector pins inspected for oxidation, deformation, and contact continuity. Units failing any single test criterion are quarantined and not dispatched. Test records are retained for a minimum of 5 years.
