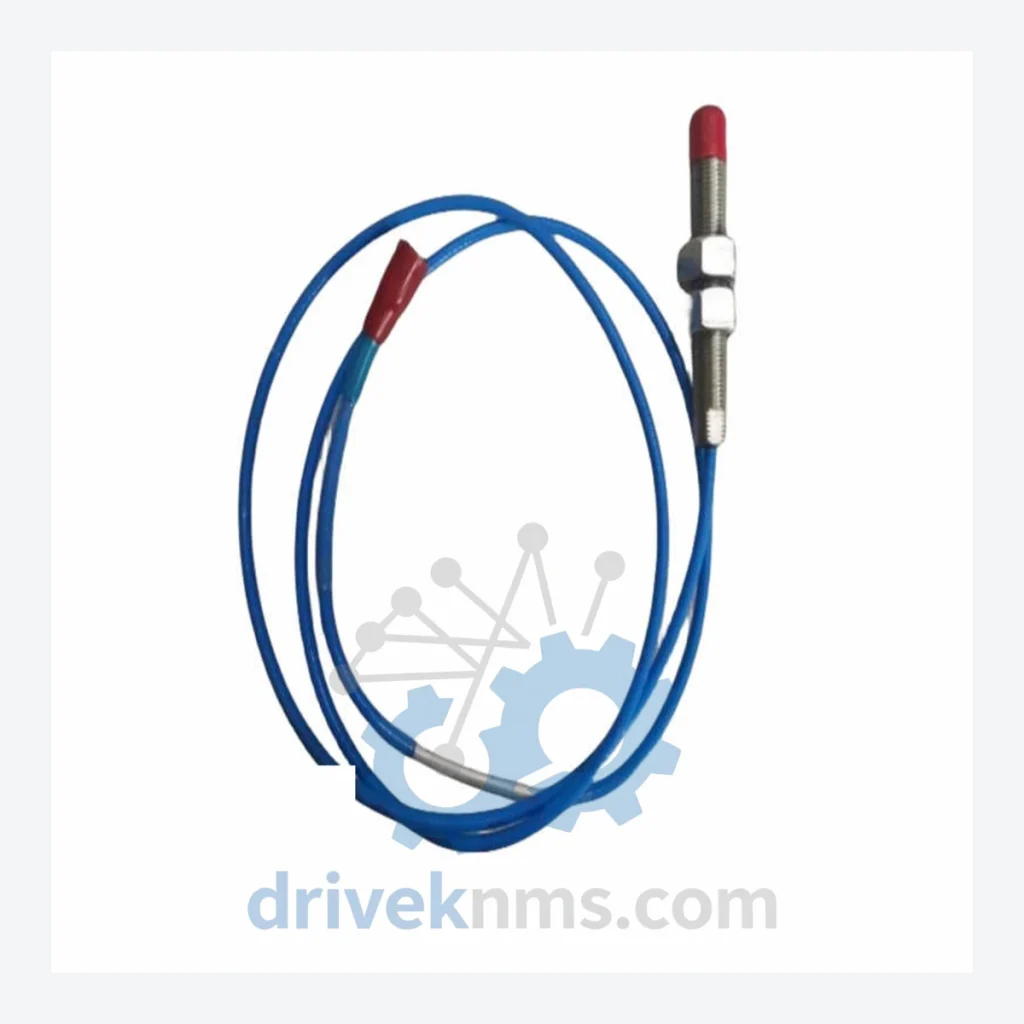

PROVIBTECH TM0182 Series: Comprehensive Extension Cable Range and Technical Overview

The PROVIBTECH TM0182 series comprises armored extension cables engineered for use with eddy-current proximity probe systems in continuous machinery protection and condition monitoring applications. These cables serve as the signal transmission link between proximity probes and signal conditioning drivers (proximitors/oscillators), operating in environments where mechanical vibration, high temperatures, chemical exposure, and electromagnetic interference are routine. The TM0182 series is installed across global heavy industry sectors including petrochemical refineries, nuclear power stations, offshore platforms, LNG terminals, and rotating machinery trains in steel mills. Compatibility with API 670 machinery protection standards makes this series a reference component in turbine, compressor, and pump monitoring systems worldwide.

The Evolution of TM0182 Architecture

The TM0182 series was developed by PROVIBTECH (formerly a division aligned with Bently Nevada-compatible instrumentation) to address the demand for field-interchangeable extension cables in eddy-current probe systems. Early-generation extension cables in the 1980s and 1990s used simple coaxial construction with limited shielding, restricting deployment in high-EMI environments. The TM0182 architecture introduced a triaxial cable geometry — center conductor, inner shield, and outer armor — enabling stable signal transmission at the 1 MHz carrier frequency used by standard 5mm and 8mm proximity probe systems.

The cable's modular option coding (A/B/C suffix blocks) allows field configuration of length, connector type, and armor material without requiring custom orders. This design philosophy extended the series lifecycle well into the 2010s and 2020s, as end-users could specify exact replacement parameters matching original installation drawings. The TM0182 series remains in active production and is considered a mature, stable product line. For legacy installations using earlier non-coded cable assemblies, TM0182 provides a direct functional replacement with improved shielding performance.

TM0182 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented TM0182 extension cable configurations. Each model is defined by three option blocks: A = cable length (in feet), B = connector/termination type, C = armor/jacket material.

TM0182-A05-B01-C00: 5 ft armored extension cable, standard BNC-to-BNC, PVC jacket — short-run probe-to-driver connection.
TM0182-A10-B01-C00: 10 ft armored extension cable, BNC connectors, PVC jacket — standard panel-mount proximitor installations.
TM0182-A15-B01-C00: 15 ft armored extension cable, BNC connectors, PVC jacket — intermediate-length machinery train runs.
TM0182-A25-B01-C00: 25 ft armored extension cable, BNC connectors, PVC jacket — common in compressor skid installations.
TM0182-A50-B01-C00: 50 ft armored extension cable, BNC connectors, PVC jacket — long-run turbine pedestal to junction box.
TM0182-A90-B01-C00: 90 ft armored extension cable, BNC connectors, PVC jacket — maximum standard length for single-run probe signal transmission.
TM0182-A05-B02-C00: 5 ft cable, MIL-spec threaded connector, PVC jacket — military and offshore platform installations.
TM0182-A10-B02-C00: 10 ft cable, MIL-spec threaded connector, PVC jacket — vibration probe systems requiring locking connectors.
TM0182-A25-B02-C00: 25 ft cable, MIL-spec threaded connector, PVC jacket — compressor monitoring with vibration-resistant terminations.
TM0182-A50-B02-C00: 50 ft cable, MIL-spec threaded connector, PVC jacket — long-run installations in high-vibration environments.
TM0182-A10-B01-C01: 10 ft cable, BNC connectors, stainless steel armor — chemical plant and refinery installations.
TM0182-A25-B01-C01: 25 ft cable, BNC connectors, stainless steel armor — corrosive atmosphere machinery protection.
TM0182-A50-B01-C01: 50 ft cable, BNC connectors, stainless steel armor — offshore and subsea-adjacent installations.
TM0182-A90-B01-C01: 90 ft cable, BNC connectors, stainless steel armor — maximum-length run in corrosive or high-temperature zones.
TM0182-A25-B02-C01: 25 ft cable, MIL-spec connector, stainless steel armor — dual-protection configuration for harsh-environment turbine monitoring.
TM0182-A50-B02-C01: 50 ft cable, MIL-spec connector, stainless steel armor — nuclear and petrochemical long-run installations.

Sourcing Hard-to-Find & Obsolete TM0182 Parts

Although the TM0182 series remains in active production, specific length-connector-armor combinations are frequently discontinued or subject to extended lead times from the OEM. DriveKNMS maintains a dedicated inventory of TM0182 extension cables across multiple option configurations, sourced from decommissioned plant assets, authorized distributor overstock, and direct factory channels. For installations where the exact option code is no longer available, DriveKNMS technical staff can cross-reference the original cable drawing and identify a functionally equivalent substitute within the TM0182 range or from compatible third-party manufacturers. All sourced cables are supplied with full traceability documentation including country of origin, manufacturing date code, and cable impedance test records. Emergency shipment is available for critical machinery protection outages.

Quality Control for the TM0182 Range

Each TM0182 extension cable processed by DriveKNMS undergoes a structured inspection and electrical verification protocol prior to dispatch. Visual inspection covers armor integrity, connector seating, and jacket condition. Electrical testing includes: DC resistance measurement of center conductor and shield; insulation resistance test at 500 VDC between conductor and shield; characteristic impedance verification at 1 MHz using a time-domain reflectometer (TDR) to confirm the 50-ohm nominal impedance required for eddy-current probe system compatibility; and connector continuity and pin-out verification against PROVIBTECH wiring standards. Cables exhibiting impedance deviation greater than ±2 ohms, insulation resistance below 100 MΩ, or any armor breach are rejected and not supplied. Test records are available upon request for each shipped unit.
