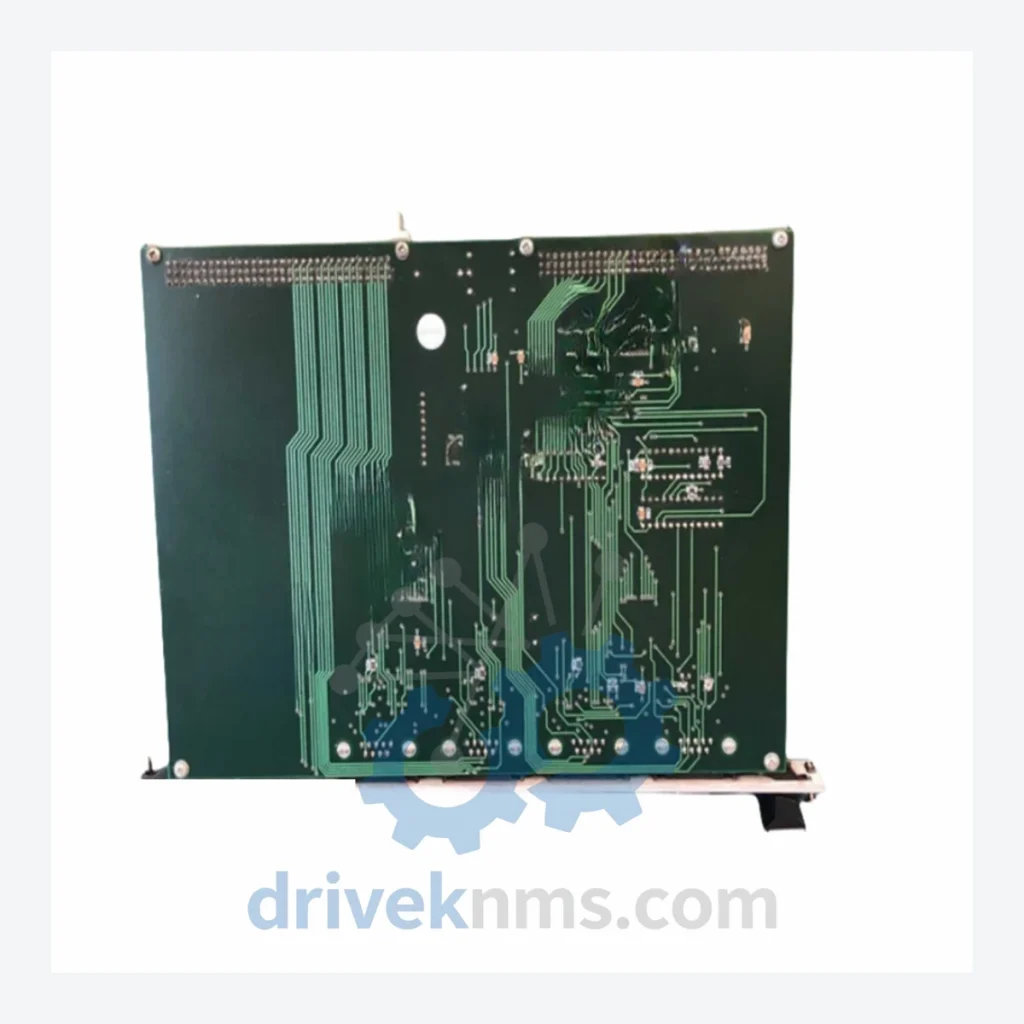

QUARNDON ANG113 AN-G113 Digital Output Module – Obsolete Spare Part

Technical Dossier

Product Details And Specifications

QUARNDON ANG113 AN-G113 Digital Output Module – Obsolete Spare Part

When a QUARNDON ANG113 digital output module fails, the consequences extend far beyond a single card replacement. In legacy distributed control and process automation environments, this module sits at the interface between the controller logic and field actuators. Its failure can halt an entire production line. The cost of an unplanned shutdown — lost throughput, emergency engineering labor, expedited freight — routinely runs into six figures. The cost of a full control system migration to replace an obsolete platform can reach several million dollars. Against that backdrop, a verified spare ANG113 is not a line item; it is an insurance policy.

DriveKNMS maintains allocated stock of the QUARNDON AN-G113 module sourced through established industrial surplus and OEM-exit channels. Inventory is finite and not replenishable on demand.

Technical Specifications

Note: Specific electrical parameters (voltage range, channel count, output current rating) are confirmed at time of order based on unit inspection. No parameters are published here that cannot be independently verified — accuracy on obsolete hardware is a safety matter.

Solving the Discontinued Hardware Crisis

QUARNDON's AN-G Series was deployed across process industries — chemical, oil & gas, water treatment, and discrete manufacturing — during a period when modular, rack-based control architectures were the engineering standard. These systems were built to run for decades, and many still do. The problem is that the OEM support lifecycle ended years ago.

Plant managers facing pressure to modernize are confronted with a hard calculation: a full DCS or PLC migration on a running facility requires engineering design, FAT/SAT testing, operator retraining, and a planned shutdown window. Total project cost for a mid-size plant routinely exceeds $2–5 million USD, with 12–24 months of execution risk. For facilities where the existing control logic is proven, stable, and well-understood by the operations team, that investment is difficult to justify — particularly when the underlying hardware failure rate remains low.

The AN-G113 digital output module is a field-replaceable unit. Maintaining a buffer stock of two to four modules per installed rack eliminates the primary failure mode that would otherwise force a migration decision. This is not deferred maintenance — it is deliberate asset life extension, a strategy used by asset-intensive industries to protect capital equipment with 20–30 year design lives.

Facilities that have adopted a structured spare parts strategy for their QUARNDON AN-G Series systems report continued reliable operation 10–15 years beyond the OEM's stated end-of-life date. The economics are straightforward: the cost of a spare module is a fraction of one day of unplanned downtime.

Condition & Reliability Assurance

Obsolete hardware sourced outside OEM channels carries inherent risk. DriveKNMS applies a five-step inspection protocol before any AN-G113 unit is offered for sale:

1. Visual and Mechanical Inspection — Board-level examination for physical damage, connector pin condition, and housing integrity. Units with bent pins, cracked housings, or evidence of field repair are rejected.

2. Electrolytic Capacitor Assessment — Capacitor aging is the primary failure mechanism in electronics stored beyond 10 years. Each unit is assessed for capacitor condition; units showing bulging, leakage, or measured capacitance deviation are flagged for recapping or rejected.

3. Firmware and Configuration Verification — Where accessible, firmware version is recorded and cross-referenced against known compatible revisions for the AN-G Series platform.

4. Pin and Contact Corrosion Check — Backplane connector pins are inspected under magnification and cleaned where oxidation is present. Contact resistance is verified prior to release.

5. Functional Power-On Test — Units are powered and output channel response is verified against expected behavior before dispatch.

Units that pass all five stages are classified as Verified Serviceable. Condition grade and test records are provided with each shipment on request.

Key Features for System Maintenance

The ANG113 is a direct drop-in replacement for any AN-G113 position within a QUARNDON AN-G Series rack. No controller reprogramming is required. No I/O mapping changes are needed. The replacement procedure is a field-level task executable by a qualified instrumentation technician without specialist QUARNDON tooling.

This matters operationally. When a module fails during production, the window for corrective action is measured in hours, not days. A pre-positioned spare that can be swapped without engineering intervention keeps that window manageable. The alternative — sourcing a replacement under emergency conditions, waiting for engineering sign-off on a non-identical substitute, and potentially rewriting control logic — introduces risk that a buffer stock strategy eliminates entirely.

Maintaining two to four ANG113 spares per installed system is a low-cost hedge against a high-consequence event. At current market pricing for obsolete QUARNDON modules, the total cost of a four-unit buffer is less than two hours of unplanned downtime at average industrial production rates.

FAQ

Q: What warranty applies to an obsolete module like the ANG113?
A: DriveKNMS provides a 90-day warranty covering functional performance as tested. Given the obsolete status of this part, we do not offer OEM-equivalent warranty terms, and we are transparent about that. The warranty covers the condition we ship — not field damage or installation errors.

Q: How do I know the unit is genuinely new or properly refurbished, not a counterfeit?
A: QUARNDON AN-G Series modules have identifiable board markings, revision codes, and construction characteristics. Our inspection team is familiar with these. Units that do not match known authentic construction are rejected. We provide inspection records and, where available, provenance documentation on request.

Q: Should I buy more than one unit?
A: For any facility with more than one AN-G Series rack, yes. The ANG113 is no longer manufactured. When current global surplus stock is exhausted, there is no further supply. Facilities that have experienced one module failure statistically face a second within 18–36 months as the installed base ages uniformly. Purchasing a buffer now, while verified stock is available, is the lower-risk position.

Q: Can you source additional units if I need more than you have in stock?
A: We maintain active sourcing relationships across industrial surplus channels. Contact us with your quantity requirement and we will advise on availability and lead time honestly — we do not quote stock we do not have or cannot confirm.
