Bosch Rexroth R911329914 CSH01.3C-SE-EN2-NNN-CCD-S2-S-NN-FW Control Unit – Obsolete IndraDrive Spare Part

Technical Dossier

Product Details And Specifications

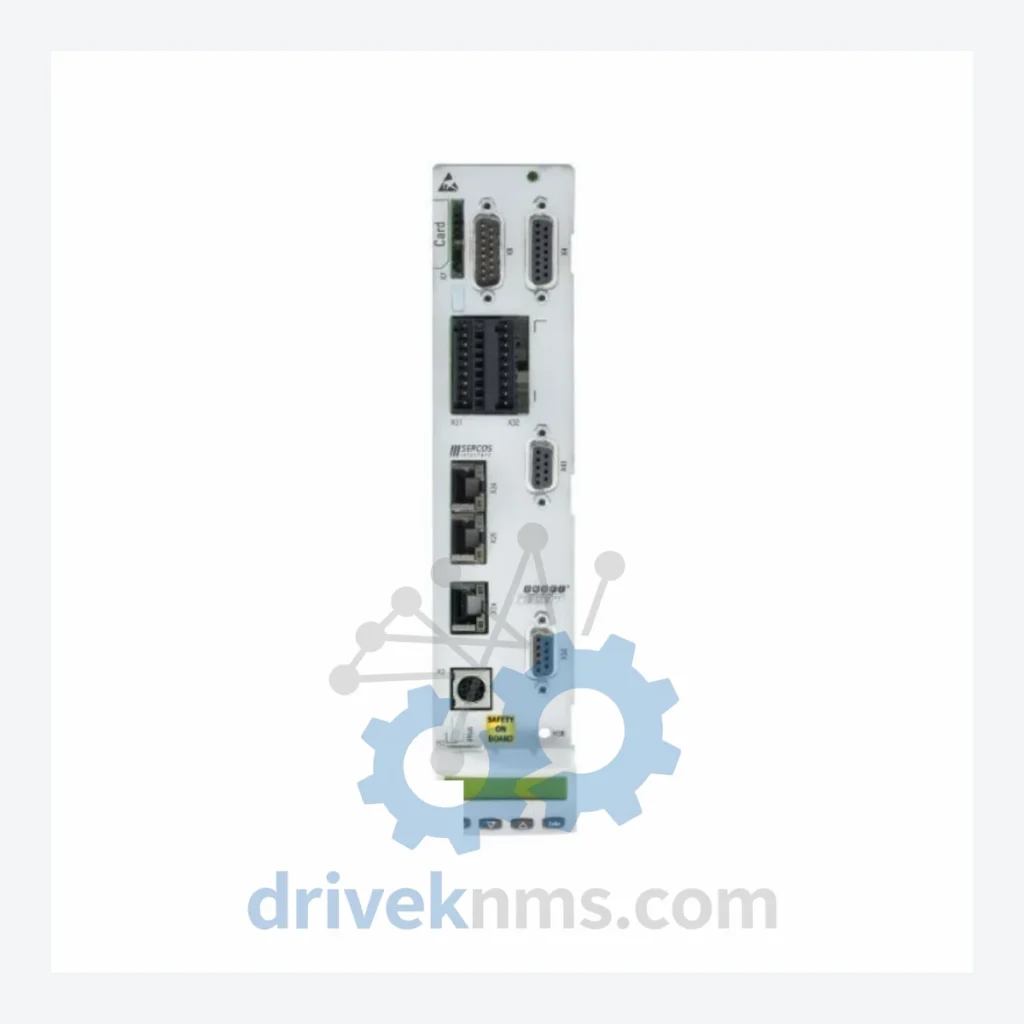

Bosch Rexroth R911329914 CSH01.3C-SE-EN2-NNN-CCD-S2-S-NN-FW Control Unit – Obsolete IndraDrive Spare Part

When a CSH01.3C control unit fails in a production environment built around Bosch Rexroth IndraDrive architecture, the consequences extend far beyond a single axis going offline. The IndraDrive CSH01 series was the backbone of high-precision servo motion control across automotive body shops, press lines, packaging machinery, and semiconductor handling systems throughout the 2000s and 2010s. Bosch Rexroth has since discontinued this control unit, and OEM replacement channels are closed.

The cost of a forced migration away from IndraDrive — including new drive hardware, motor re-matching, PLC reprogramming, safety validation, and production downtime — routinely exceeds six figures. In multi-axis installations, that figure climbs into the millions. A single verified spare unit of the R911329914 CSH01.3C-SE-EN2-NNN-CCD-S2-S-NN-FW eliminates that risk entirely. DriveKNMS maintains sourced inventory of discontinued Bosch Rexroth components specifically to protect facilities from this class of forced capital expenditure.

Technical Specifications

Note: Electrical parameters such as input voltage range and continuous current rating vary by paired power section (HCS/HMD). Confirm your power section model before ordering. DriveKNMS does not publish unverified electrical data.

Solving the Discontinued Hardware Crisis

The CSH01.3C was engineered for deterministic, high-dynamic servo control within closed IndraDrive topologies. Its SERCOS II communication layer is deeply integrated into the motion programs of the era — axis parameterization, cam tables, and electronic gearing are all stored in formats tied to this hardware generation. Replacing it with a current-generation IndraDrive Mi or IndraDrive Cs requires not just hardware substitution but a full re-engineering of the motion application, safety circuit re-certification, and in many cases, motor replacement due to changed encoder interfaces.

For plant engineering teams managing assets with 10–20 year depreciation horizons, the calculus is straightforward: a verified CSH01.3C spare unit extends the operational life of the entire drive train by 5 to 10 years at a fraction of the cost of platform migration. Facilities running multi-axis IndraDrive C installations — transfer lines, robotic welding cells, precision grinding machines — should maintain a minimum of one cold-spare CSH01 control unit per critical axis cluster. The cost of that inventory position is measured in thousands. The cost of an unplanned line stoppage waiting for an engineering retrofit is measured in weeks of lost production.

The strategic approach for maintenance managers facing IndraDrive C end-of-life pressure:

• Audit all CSH01 variants currently installed across the facility and map them to their R-number (e.g., R911329914).
• Identify the three to five axes with the highest cycle count or thermal stress history — these are your highest-risk units.
• Secure at least one verified spare per variant for those axes before the secondary market tightens further.
• Negotiate a multi-unit purchase to reduce per-unit cost and lock in availability for a 5-year maintenance window.

Condition & Reliability Assurance

Sourcing discontinued control electronics carries inherent risk. DriveKNMS applies a structured 5-step qualification process to every CSH01.3C unit before it is offered for sale:

1. Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in stored servo electronics. Each unit undergoes ESR measurement and visual inspection of the DC bus and logic board capacitor banks. Units with measurable capacitor degradation are either reconditioned or rejected.
2. Firmware Version Verification: The firmware slot designation (FW) in the model string indicates a firmware-dependent unit. We verify the installed firmware version and document it. Customers are advised on compatibility with their IndraWorks engineering version before shipment.
3. Pin and Connector Integrity Check: All signal connectors, encoder interfaces, and SERCOS fiber ports are inspected for pin corrosion, bent contacts, and oxidation. Affected connectors are cleaned or the unit is rejected.
4. Functional Power-On Test: Where test infrastructure permits, units are powered and brought to ready state to confirm basic drive logic integrity.
5. Documentation and Traceability: Each unit is shipped with a condition report noting inspection findings, firmware version, and any observed cosmetic or mechanical condition.

Key Features for System Maintenance

• Drop-in replacement: The R911329914 CSH01.3C-SE-EN2-NNN-CCD-S2-S-NN-FW is a direct hardware substitute for any failed unit of the same part number. No axis re-parameterization is required if the replacement unit carries the same or compatible firmware version.
• No PLC reprogramming: The SERCOS II interface and axis parameter structure remain identical. The motion controller sees no hardware change at the application layer.
• Avoids engineering retrofit costs: Substituting a like-for-like CSH01.3C eliminates the need for drive sizing recalculation, motor compatibility review, and safety function re-validation that a platform migration would require.
• Preserves existing motor investment: IndraDyn MSK and MHD motors paired with this control unit continue to operate without modification.

FAQ

What warranty applies to a discontinued unit?
DriveKNMS provides a 90-day functional warranty on all tested units. The warranty covers failure to power on or failure to reach drive-ready state under normal operating conditions. It does not cover damage from incorrect installation or incompatible system configuration.

How do I confirm the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for authentic Bosch Rexroth labeling, correct PCB markings, and serial number traceability. We do not source from unverified brokers. Customers may request pre-shipment photos of the unit label and board condition.

Should I buy more than one unit?
For any installation with more than three CSH01.3C axes, holding two spare units is the minimum prudent position. The secondary market for this part number is contracting. Units available today may not be available in 18 months. Multi-unit inquiries receive priority pricing.

Can you supply other CSH01 variants?
Yes. DriveKNMS maintains sourcing capability across the CSH01 family. Contact us with your specific R-number for availability.

© 2026 DriveKNMS. Status: DRAFT
