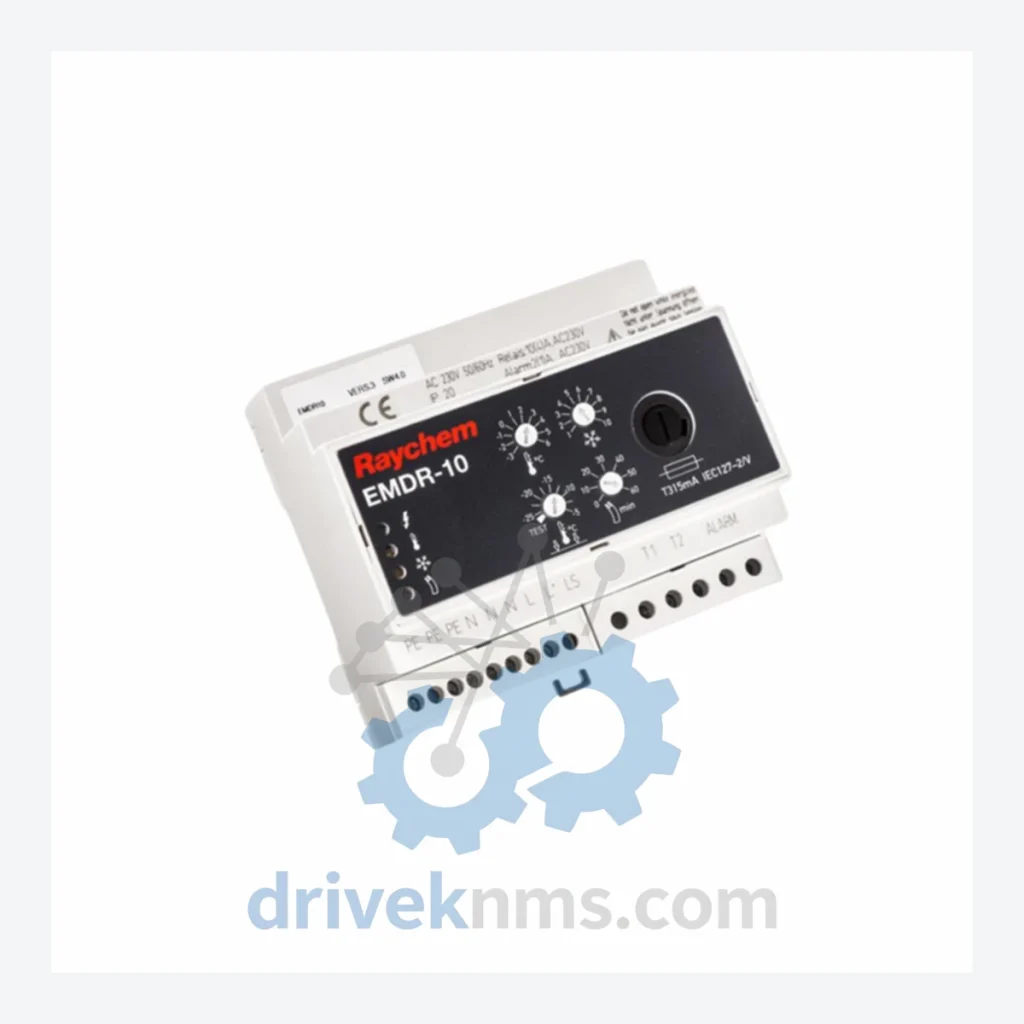

Raychem EMDR-10 Control Unit – Obsolete Heat Tracing Spare Part

When a Raychem EMDR-10 Control Unit fails on an active heat tracing circuit, the consequences extend far beyond a single component. Freeze protection systems go offline. Process temperature maintenance collapses. In petrochemical, oil & gas, and heavy industrial environments, a single uncontrolled freeze event can rupture pipelines, trigger emergency shutdowns, and generate liability exposure that dwarfs the cost of an entire plant modernization project. The EMDR-10 is discontinued. Finding a verified replacement unit through standard distribution channels is no longer possible. DriveKNMS maintains sourced inventory of this unit specifically for facilities that cannot afford — financially or operationally — to redesign their heat tracing infrastructure around a modern controller.

Technical Specifications

Note: Electrical parameters such as input voltage range, output ratings, and communication specifications are not published here to prevent inaccurate data from being used in safety-critical installations. Contact our technical team for verified datasheet documentation prior to procurement.

Solving the Discontinued Hardware Crisis

The Raychem EMDR-10 was engineered as a dedicated controller for electric heat tracing circuits in environments where temperature control is a process-critical function, not a comfort feature. Refineries, LNG terminals, chemical processing plants, and offshore platforms built their freeze protection and viscosity maintenance systems around this controller's specific control logic and wiring architecture.

When OEM support ends, plant engineers face a binary choice: source the original hardware, or redesign the entire heat tracing zone. Redesign is not a minor project. It involves new controller procurement, cable compatibility assessment, junction box modifications, updated P&IDs, re-commissioning, and in regulated industries, re-certification. Conservative estimates for a single heat tracing zone redesign run from $50,000 to $250,000 USD depending on circuit complexity and regulatory requirements. For facilities managing dozens of circuits on EMDR-10 controllers, the aggregate exposure is substantial.

Sourcing verified EMDR-10 units from a specialist supplier like DriveKNMS eliminates that exposure. The existing wiring, the existing documentation, and the existing operator knowledge base remain intact. The system continues to function as designed — for another operational cycle, another maintenance window, another budget year.

This is not a workaround. It is a deliberate asset protection strategy used by maintenance managers at facilities where uptime is measured in millions of dollars per day.

Condition & Reliability Assurance

Obsolete control hardware sourced outside OEM channels carries inherent risk. DriveKNMS applies a structured 5-step quality assurance process to every EMDR-10 unit before it leaves our facility:

• Step 1 – Visual and Mechanical Inspection: Full external examination for physical damage, corrosion on terminals, and housing integrity. Units with compromised enclosures are rejected at intake.
• Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the primary failure mode in legacy control electronics. Each unit undergoes capacitor ESR testing. Units with out-of-specification capacitors are either recapped with equivalent-rated components or quarantined.
• Step 3 – Firmware and Configuration Verification: Where applicable, firmware version is documented and verified against known stable releases. Configuration integrity is confirmed prior to dispatch.
• Step 4 – Pin and Connector Integrity Check: All I/O terminals, connector pins, and wiring interfaces are inspected for oxidation, micro-fractures, and contact resistance anomalies. Corroded contacts are treated or the unit is rejected.
• Step 5 – Functional Burn-In Test: Units are powered and monitored under controlled conditions before shipment. Only units that pass full functional verification are released as serviceable stock.

Each unit ships with a condition report documenting the QA steps completed and the unit's assessed status.

Key Features for System Maintenance

• Drop-in Replacement: The EMDR-10 installs directly into existing Raychem heat tracing panel positions without modification to wiring, conduit, or junction box configurations.
• No Reprogramming Required: Control parameters established during original commissioning are preserved. There is no requirement to re-enter setpoints, alarm thresholds, or circuit identification data when replacing a like-for-like unit.
• Engineering Cost Avoidance: Substituting a verified EMDR-10 unit eliminates the need for a controls engineer to redesign the circuit, update documentation, or re-validate the installation — costs that accumulate rapidly in regulated plant environments.
• Inventory Buffer Strategy: Facilities with multiple EMDR-10 circuits are advised to maintain a minimum of two spare units on-site. As global NOS inventory depletes, lead times for sourced units will extend. Procurement now, at current pricing, is a measurable hedge against future scarcity.

Extending Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

The decision to retire a heat tracing control system is rarely driven by the system's inability to perform its function. It is driven by the inability to source replacement components when they fail. This is a procurement problem, not an engineering problem — and it has a procurement solution.

Facilities that have successfully extended legacy Raychem heat tracing system life by five to ten years beyond OEM support termination share a common approach: they treat critical spare parts as capital assets, not consumables. A EMDR-10 control unit held in climate-controlled storage has a shelf life measured in decades. Its value to the facility increases every year that OEM-channel availability decreases.

The financial case is straightforward. A single EMDR-10 unit sourced today costs a fraction of one hour of unplanned production downtime in most process industries. A strategic reserve of two to four units, procured while specialist inventory remains available, provides a maintenance runway that extends well beyond the next capital planning cycle. This approach has been validated by maintenance managers at facilities operating legacy Raychem systems across the petrochemical, food processing, and utilities sectors.

The alternative — waiting until a unit fails and then attempting emergency sourcing — consistently results in extended downtime, premium pricing for distressed inventory, and in some cases, forced system redesign under time pressure. That is the highest-cost outcome, and it is avoidable.

FAQ

What warranty applies to an obsolete EMDR-10 unit?
DriveKNMS provides a 90-day functional warranty on all refurbished units and a 30-day warranty on New Old Stock units. Warranty covers functional failure under normal operating conditions and excludes damage resulting from installation error or electrical overstress.

How do I confirm the unit is new or professionally refurbished — not a counterfeit?
Every unit is accompanied by a condition report detailing its sourcing classification (NOS or refurbished), the QA steps completed, and the technician sign-off. We do not sell units that cannot be traced to a documented inspection record. Customers requiring additional verification may request pre-shipment inspection photographs.

Should I purchase more than one unit?
For facilities with more than three EMDR-10 circuits in active service, we recommend maintaining a minimum of two spare units on-site. Global NOS inventory for discontinued Raychem controllers is finite and non-replenishable. Procurement decisions deferred to the point of failure carry significantly higher cost and risk than planned strategic reserves.

Can this unit be used with non-Raychem heat tracing cable?
The EMDR-10 was designed for use within the Raychem heat tracing ecosystem. Compatibility with third-party cables depends on the specific cable's electrical characteristics. Contact our technical team with your cable specifications before procurement if cross-brand compatibility is a requirement.
