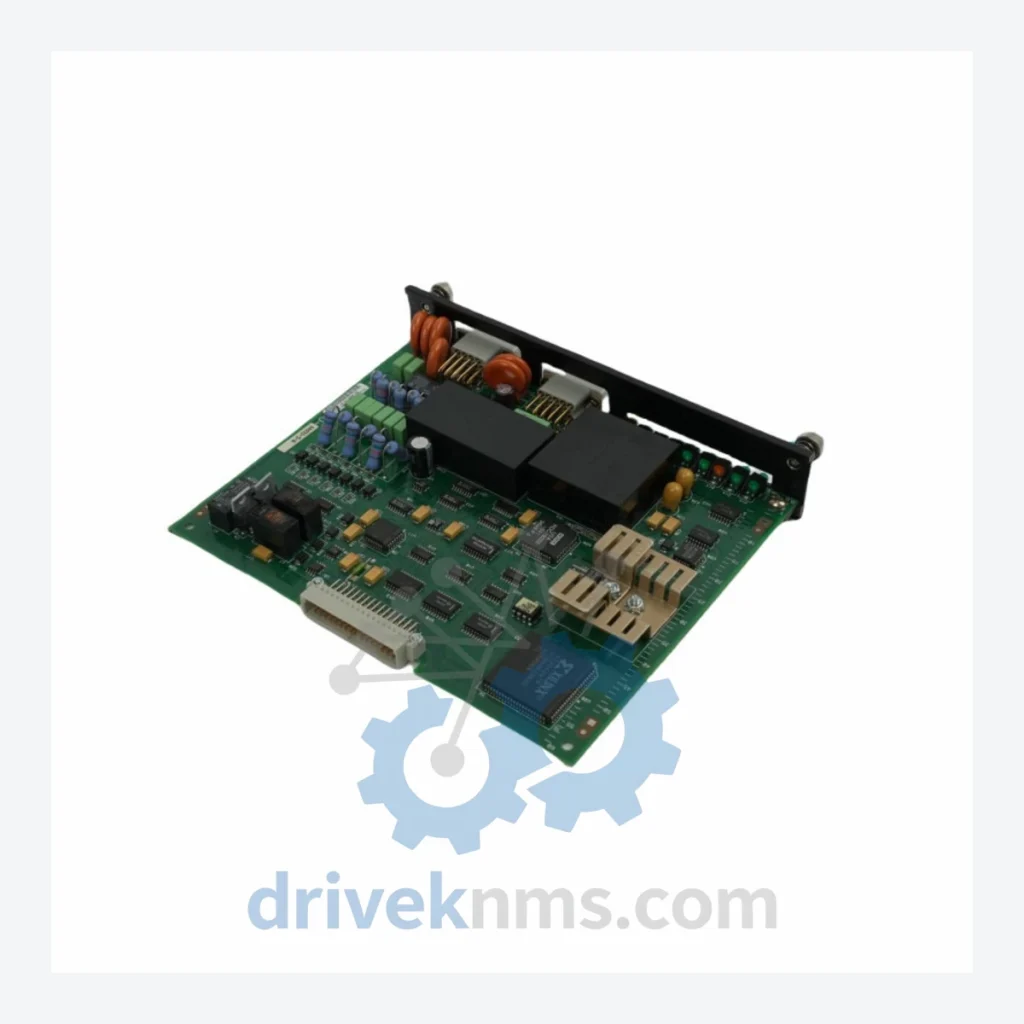

Reliance Electric 0-60031-5 Resolver Drive Module – Obsolete PMI Spare Part

Technical Dossier

Product Details And Specifications

Reliance Electric 0-60031-5 Resolver Drive Module – Obsolete PMI Spare Part

When a Reliance Electric PMI Resolver Drive Module fails on the production floor, the immediate question is not where to find a replacement — it is whether the entire drive system must be decommissioned. The PMI (Programmable Motion Interface) series was discontinued by Reliance Electric (later absorbed into Rockwell Automation) years ago, and no direct modern equivalent exists that allows a drop-in swap without extensive re-engineering. A full system upgrade — new drives, new controllers, new wiring, new commissioning, and lost production time — routinely costs manufacturers between $200,000 and $1,500,000 USD per line. The 0-60031-5 module, by contrast, is a targeted, low-cost intervention that keeps your existing infrastructure operational.

DriveKNMS maintains verified stock of the Reliance Electric 0-60031-5. This is not a listing placeholder. Availability is limited and not guaranteed beyond current inventory.

Technical Specifications

Note: Electrical parameters such as voltage ratings, current capacity, and communication protocol specifics are confirmed at the time of order. We do not publish unverified specifications. Contact us for a full datasheet.

Solving the Discontinued Hardware Crisis

The Reliance Electric PMI drive platform was widely deployed in heavy industrial environments throughout the 1980s and 1990s — steel mills, paper mills, mining conveyors, and large-scale process automation. The resolver-based feedback architecture of the PMI system was engineered for precision motion control in high-load, high-cycle applications. When Rockwell Automation absorbed Reliance Electric, the PMI line was phased out without a direct successor that maintained backward compatibility.

Plant managers operating PMI-based systems today face a structural problem: the control logic, wiring infrastructure, and mechanical integration built around these drives represent decades of engineering investment. Replacing the drive system is not simply a procurement exercise — it requires re-engineering the control architecture, rewriting PLC programs, retraining operators, and scheduling extended downtime. In continuous-process industries, that downtime alone can exceed the capital cost of the new equipment.

The 0-60031-5 I/O Resolver Drive Module is a critical node in the PMI signal chain. It handles the resolver feedback interface between the motor and the drive controller. Without a functioning module, the drive cannot execute closed-loop position or velocity control. There is no software workaround. The module must be replaced with an identical or fully compatible unit. Sourcing a verified 0-60031-5 from DriveKNMS is the only path that avoids a forced system retirement.

How to Extend Automation Asset Life by 5–10 Years Through Strategic Spare Parts Management

For plant management teams facing system retirement pressure, the economics of legacy maintenance are frequently misrepresented. The capital case for keeping a PMI-based drive system operational is straightforward when the full cost of replacement is properly accounted for.

A structured spare parts reserve — built around modules like the 0-60031-5 — is the single most cost-effective intervention available to operations teams managing aging automation assets. The following principles apply directly to PMI-series systems and to legacy drive infrastructure more broadly:

• Identify the single-point-of-failure modules first. In any drive system, certain modules — resolver interfaces, power supply boards, gate driver cards — have no redundancy and no modern substitute. The 0-60031-5 is one such module. Procurement priority should be assigned to these components before availability collapses entirely.
• Establish a minimum two-unit reserve per active system. One unit in service, one unit on the shelf. For systems running multiple axes, scale accordingly. Emergency sourcing of obsolete parts under production pressure carries a cost premium of 200–400% over planned procurement.
• Document firmware and hardware revision requirements before purchasing. PMI modules were produced across multiple hardware revisions. Confirm the revision compatibility of any spare against your installed base before committing to a purchase. DriveKNMS provides revision documentation upon request.
• Schedule proactive replacement of high-wear modules. Electrolytic capacitors in modules of this age have a finite service life. Replacing a module before failure — rather than after — eliminates unplanned downtime. The cost of a planned replacement is a fraction of an emergency shutdown.
• Treat spare parts procurement as capital asset protection. The motor, gearbox, mechanical structure, and process tooling surrounding a PMI drive system represent substantial invested capital. Maintaining the drive electronics at a cost of thousands of dollars protects an asset worth hundreds of thousands. The return on that investment is not speculative.

Manufacturers who have adopted this approach have documented operational continuity of 8–12 years beyond the original OEM support window for PMI-series systems. The 0-60031-5 is available now. Its availability in 24 months is not guaranteed.

Condition & Reliability Assurance

Obsolete parts carry inherent risk if sourced without proper inspection. DriveKNMS applies a 5-step QA protocol to every PMI module before it leaves our facility:

• Step 1 – Electrolytic Capacitor Assessment: Capacitors are the primary failure point in aged electronics. Each unit is inspected for capacitor bulging, leakage, and ESR degradation. Units with compromised capacitors are either recapped with equivalent-spec components or rejected.
• Step 2 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known-compatible versions for the target PMI system configuration. Mismatched firmware can cause erratic drive behavior even in physically intact modules.
• Step 3 – Pin and Connector Inspection: All edge connectors and pin headers are examined under magnification for oxidation, corrosion, bent pins, and cold solder joints. Contact surfaces are cleaned and treated where necessary.
• Step 4 – Board-Level Visual Inspection: PCB traces, solder joints, and passive components are inspected for heat damage, cracking, and delamination — common in modules that have operated in high-temperature enclosures for extended periods.
• Step 5 – Functional Verification: Where test equipment permits, modules are bench-tested under simulated load conditions before shipment. Test results are documented and available upon request.

Key Features for System Maintenance

• Drop-in Replacement: The 0-60031-5 installs directly into the existing PMI drive chassis with no mechanical modification required.
• No Reprogramming Required: The module interfaces with the existing drive controller using the original signal protocol. Plant engineers do not need to modify PLC programs or reconfigure drive parameters.
• Avoids Engineering Reconstruction Costs: Substituting a compatible module eliminates the need for system integrator fees, new drive commissioning, and the associated production downtime — costs that routinely run into six figures.
• Extends Asset Life by 5–10 Years: A single verified spare module, properly installed, can sustain a PMI drive system well beyond its expected retirement date. Combined with a structured spare parts inventory strategy, manufacturers have documented operational continuity of 8–12 years beyond the original OEM support window.
• Protects Capital Investment: The drive system, motor, gearbox, and mechanical infrastructure surrounding a PMI installation represent substantial sunk capital. Maintaining the drive electronics protects the entire asset, not just the module.

FAQ

Q: What warranty applies to an obsolete part like the 0-60031-5?
A: DriveKNMS provides a 90-day warranty on all refurbished units covering functional failure under normal operating conditions. New Old Stock (NOS) units carry a 180-day warranty. Warranty terms are confirmed in writing at the time of purchase.

Q: How do I know the unit is genuine and not a counterfeit?
A: All Reliance Electric modules sourced by DriveKNMS are traceable to verified industrial decommissioning channels. We do not source from unverified brokers. Physical markings, board revision codes, and component dates are cross-referenced against known-authentic units. Documentation is available upon request.

Q: Should I purchase more than one unit as a long-term reserve?
A: For any PMI-based system still in active production, holding a minimum of two spare modules is standard practice. The 0-60031-5 is no longer manufactured, and market availability will continue to decline. Procurement cost today is a fraction of emergency sourcing cost in 18–36 months. We recommend discussing a structured spare parts reserve with our team.

Q: Can you source other Reliance Electric PMI series parts?
A: Yes. DriveKNMS specializes in the full Reliance Electric PMI ecosystem. Contact us with your complete BOM or part numbers for availability assessment.
