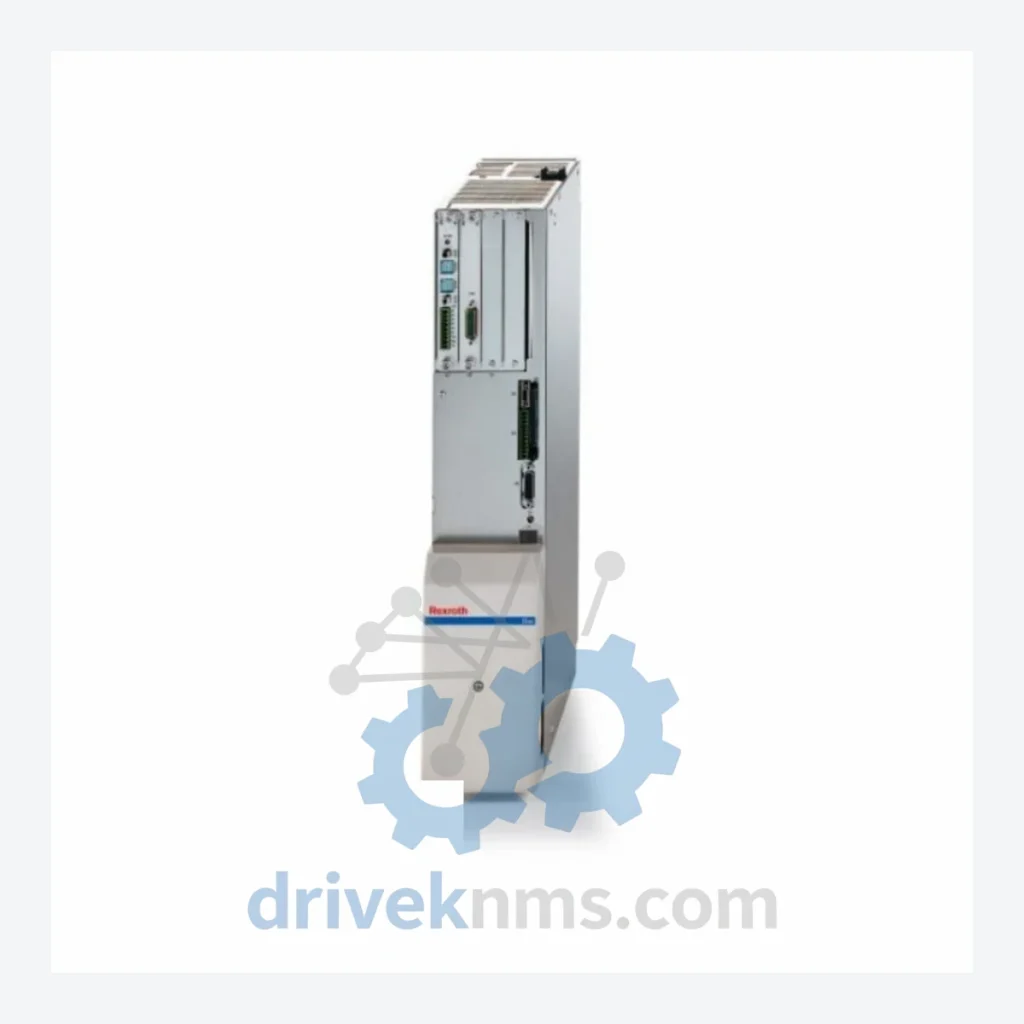

Rexroth HDS04.2-W200N-HS12-01-FW HDS Drive Controller – Obsolete IndraControl Spare Part

When a Rexroth HDS04.2-W200N-HS12-01-FW fails on the production floor, the clock starts immediately. This module is a core axis drive controller within Bosch Rexroth's HDS Series, deeply embedded in legacy IndraControl and DIAX04-based motion control architectures that remain operational in precision manufacturing, press lines, and multi-axis machining centers worldwide. Rexroth has discontinued this product line, and OEM replacement channels are closed.

The cost of a forced migration away from an HDS-based system is not a line item — it is a capital project. Engineering assessment, new drive hardware, rewiring, PLC reprogramming, recommissioning, and production downtime routinely combine into expenditures exceeding several hundred thousand dollars, and in complex multi-axis installations, into the millions. A single verified spare unit from DriveKNMS's inventory eliminates that exposure entirely.

Technical Specifications

Note: Electrical parameters such as input voltage range, continuous current rating, and bus voltage are not published here to prevent specification errors. Please contact us directly for verified datasheet confirmation prior to ordering.

Solving the Discontinued Hardware Crisis

The Rexroth HDS04.2 series was engineered for deterministic servo control in demanding industrial environments. Its integration into DIAX04 drive topologies means it communicates via proprietary Rexroth SERCOS or analog interfaces — protocols that modern replacement drives do not natively support without gateway hardware and full axis recommissioning.

Plant managers operating legacy Rexroth IndraControl systems face a specific and well-documented dilemma: the installed base is mechanically sound and process-proven, but the control hardware is aging without a viable upgrade path that does not require halting production. The HDS04.2-W200N-HS12-01-FW is not a component that can be substituted with a current-generation IndraDrive without engineering intervention. It is a direct-fit module within an existing drive cabinet, and its absence — whether from failure or pre-emptive decommissioning pressure — creates a single point of system vulnerability.

Maintaining a verified spare unit on-site is the lowest-cost risk mitigation strategy available to operations teams managing these assets. The alternative — sourcing a replacement under emergency conditions after an unplanned failure — typically involves premium pricing, extended lead times, and unplanned downtime that dwarfs the cost of proactive inventory.

How Spare Parts Extend Automation Asset Life by 5–10 Years

For factory management teams facing pressure to retire aging Rexroth HDS-based systems, the financial case for continued maintenance is straightforward when examined against actual replacement costs. A structured spare parts strategy — maintaining one or two verified HDS04.2 units in controlled storage — provides the following operational runway:

• Immediate failure recovery: Mean time to repair drops from days or weeks (sourcing time) to hours (swap and recommission).
• Capital deferral: Each year of deferred system replacement represents avoided capital expenditure that can be redirected to higher-priority modernization projects.
• Process continuity: Legacy systems running proven processes carry institutional knowledge embedded in PLC programs and tuning parameters. Preserving the hardware preserves that knowledge without a revalidation cycle.
• Negotiating leverage: Operations teams with a functioning spare are not forced into emergency procurement decisions. They can plan upgrades on their own schedule.

A single HDS04.2-W200N-HS12-01-FW unit, properly stored, can extend the operational life of an entire drive axis by 5 to 10 years at a fraction of the cost of system replacement.

Condition & Reliability Assurance

DriveKNMS applies a 5-step QA protocol to all obsolete drive hardware before it is offered for sale:

1. Visual and mechanical inspection: Housing integrity, connector condition, and PCB surface examination for physical damage or contamination.
2. Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in stored power electronics. Each unit is evaluated for capacitor condition; units with compromised capacitors are either reconditioned or withheld from sale.
3. Firmware version verification: The firmware suffix in the part number (FW) is confirmed against the physical unit to ensure compatibility with the target system revision.
4. Pin and connector corrosion inspection: All interface connectors are inspected under magnification for oxidation, pin deformation, or contamination that could cause intermittent faults post-installation.
5. Functional verification where applicable: Units are bench-tested where test infrastructure permits, and condition grade (New / Refurbished-Grade-A / Tested-Used) is documented and disclosed at point of sale.

Key Features for System Maintenance

• Drop-in replacement: The HDS04.2-W200N-HS12-01-FW installs directly into existing Rexroth HDS drive cabinets without mechanical modification.
• No reprogramming required: Drive parameters are stored in the controller or motor feedback device depending on system configuration — axis parameters are retained across hardware swaps in most DIAX04 installations.
• Avoids engineering reconstruction costs: Unlike a cross-brand drive substitution, this is a like-for-like replacement that does not trigger a revalidation or safety re-certification cycle.
• Immediate dispatch: In-stock units ship promptly upon order confirmation, minimizing production downtime exposure.

FAQ

What warranty applies to an obsolete part like this?
DriveKNMS provides a 90-day warranty against DOA (dead on arrival) and functional failure under normal operating conditions. Warranty terms are confirmed in writing at the time of sale.

How do I know the unit is genuine and not counterfeit?
All units are sourced through verified industrial surplus and decommissioning channels. Rexroth part number labels, date codes, and serial number formats are cross-checked during intake inspection. We do not source from unverified secondary markets.

Should I buy more than one unit?
For systems where this drive controls a critical axis with no redundancy, holding a minimum of one spare unit on-site is a standard risk management practice. For high-utilization or multi-shift operations, two units is a defensible position given the absence of OEM supply.

Can you source other HDS or DIAX04 series components?
Yes. DriveKNMS maintains sourcing networks for the broader Rexroth HDS, HDD, and DIAX04 ecosystem. Contact us with your full BOM for a consolidated availability check.
