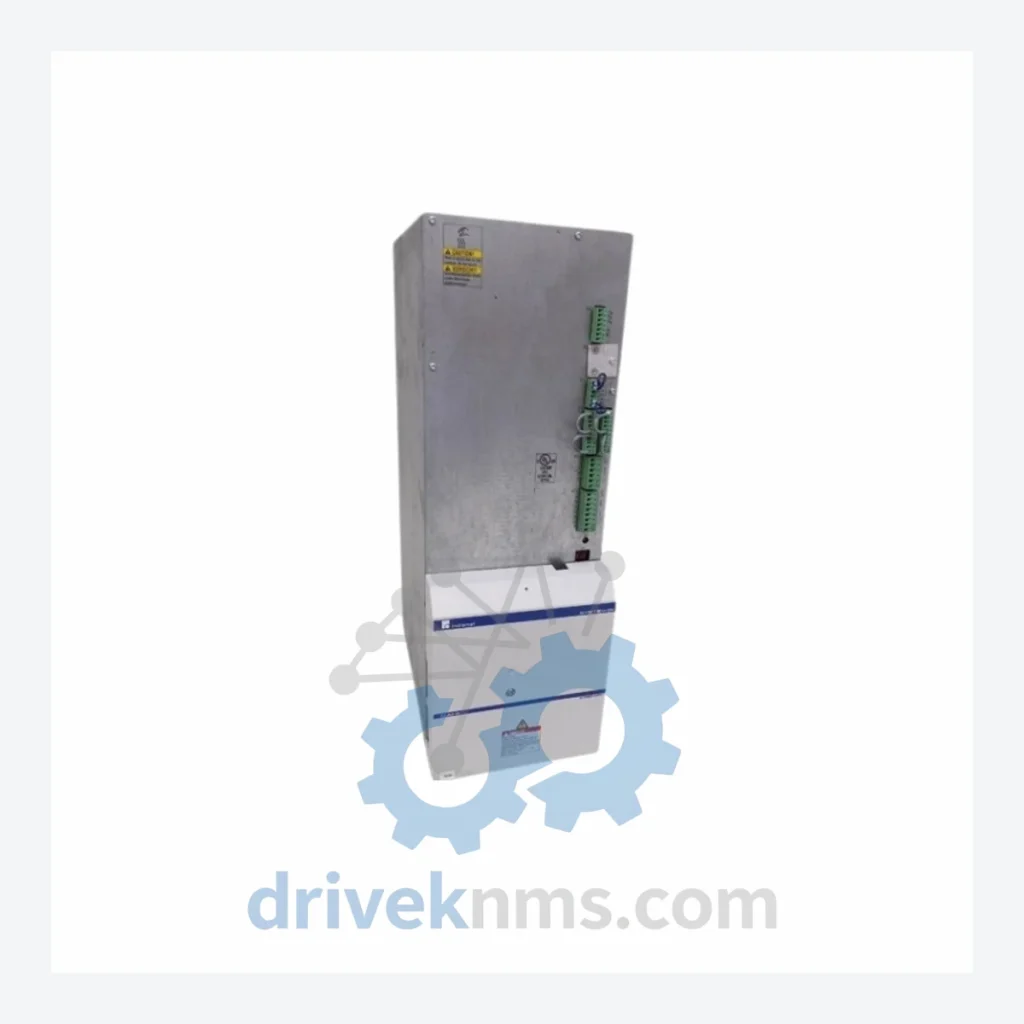

Bosch Rexroth HVR02.2-W025N Power Supply Unit – Obsolete HVR Series Spare Part

Technical Dossier

Product Details And Specifications

Bosch Rexroth HVR02.2-W025N Power Supply Unit – Obsolete HVR Series Spare Part

When a Bosch Rexroth HVR02.2-W025N power supply unit fails in a legacy drive system, the consequences extend far beyond the cost of the component itself. A single unplanned shutdown on a production line dependent on Rexroth IndraDrive or DIAX04 drive architecture can trigger cascading downtime measured in days, not hours. Engineering assessments, system migration projects, new cabinet builds, and requalification cycles routinely push total upgrade costs into the hundreds of thousands — or millions — of dollars. DriveKNMS maintains verified stock of the HVR02.2-W025N specifically to protect facilities from that scenario.

Technical Specifications

Note: Specific electrical parameters (input voltage range, output power rating, bus capacitance) are confirmed at time of order. DriveKNMS does not publish unverified specifications — accuracy of electrical data is a safety requirement for drive system integration.

Solving the Discontinued Hardware Crisis

The HVR02.2-W025N occupies a non-negotiable position in Rexroth's legacy regenerative drive topology. It serves as the central DC bus supply for multi-axis servo systems, managing energy recovery from braking axes back into the bus — a function that cannot be replicated by a standard non-regenerative supply without significant electrical redesign. Facilities running DIAX04 or early IndraDrive configurations built around this power supply face a hard constraint: the entire axis group is architecturally dependent on this unit.

Bosch Rexroth's official end-of-life designation for the HVR series means no new production runs are scheduled. Authorized distributors have exhausted their pipeline stock. The remaining supply exists only in secondary market channels — and that supply diminishes with each passing quarter as other facilities consume it for their own emergency repairs.

For plant managers and maintenance engineers operating under capital expenditure freezes or multi-year system retirement timelines, the calculus is straightforward: sourcing a verified HVR02.2-W025N spare today costs a fraction of what a forced migration will cost under emergency conditions. Facilities that have established a buffer stock of one to two units have consistently extended operational life of their drive systems by five to ten years beyond the manufacturer's support window — without requalification, without new programming, and without production interruption.

Condition & Reliability Assurance

DriveKNMS applies a five-stage quality process to every HVR02.2-W025N unit before it leaves our facility:

• Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in power electronics stored beyond five years. Each unit undergoes ESR (Equivalent Series Resistance) measurement and visual inspection for bulging, leakage, or thermal discoloration. Units with degraded capacitors are either recapped with specification-matched components or quarantined.
• Firmware Version Verification: Where applicable, firmware revision is confirmed against known-compatible versions for target drive families. Mismatched firmware between power supply and drive modules is a documented source of fault codes and communication errors.
• Pin and Connector Inspection: All interface connectors, bus bar contact surfaces, and signal terminals are inspected under magnification for oxidation, corrosion, and mechanical deformation. Contact surfaces are cleaned and treated where required.
• Functional Power-On Test: Units are bench-tested under controlled load conditions to verify DC bus output stability, fault relay behavior, and communication interface response.
• Final Documentation: Each unit ships with a condition report noting test results, any remediation performed, and the firmware version confirmed.

Key Features for System Maintenance

• Drop-in replacement: The HVR02.2-W025N installs directly into existing Rexroth drive cabinets without mechanical modification. Mounting dimensions, connector pinouts, and bus bar interfaces are identical to the original production unit.
• No reprogramming required: Drive axis parameters, machine programs, and PLC configurations remain untouched. Replacement does not trigger a requalification requirement under most maintenance protocols.
• Avoids engineering reconstruction costs: Migrating away from HVR-based architecture requires new cabinet design, new drive selection, new cabling, and full system requalification — a project that typically runs six to eighteen months and carries substantial engineering labor costs. A verified spare eliminates that path entirely for the duration of the asset's planned service life.
• Supports long-term spares strategy: Facilities managing planned obsolescence programs can acquire multiple units now while verified stock remains available, establishing a controlled runway for system retirement on their own schedule.

FAQ

What warranty applies to an obsolete part like the HVR02.2-W025N?
DriveKNMS provides a 90-day functional warranty on all refurbished units and a 30-day warranty on New Old Stock units. Warranty covers failure under normal operating conditions and excludes damage from installation error or electrical overstress.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are traceable to verified industrial decommissioning channels or authorized surplus distributors. We do not source from unverified brokers. Serial number, date code, and manufacturing markings are inspected for consistency with known Rexroth production standards.

Should I buy more than one unit?
For any system where the HVR02.2-W025N is a single point of failure, holding at least one cold spare is a minimum prudent position. For facilities with multiple axes on a shared DC bus, two units is a more defensible posture. Secondary market availability for this part will not improve over time.

Can you source specific firmware versions?
We will confirm the firmware revision of any unit prior to shipment. If your system requires a specific revision for compatibility, communicate that requirement at time of inquiry and we will match accordingly where stock permits.
