RTP 8514 09-000 Level QA Terminal Board – Obsolete RTP 8514 Series Spare Part

Technical Dossier

Product Details And Specifications

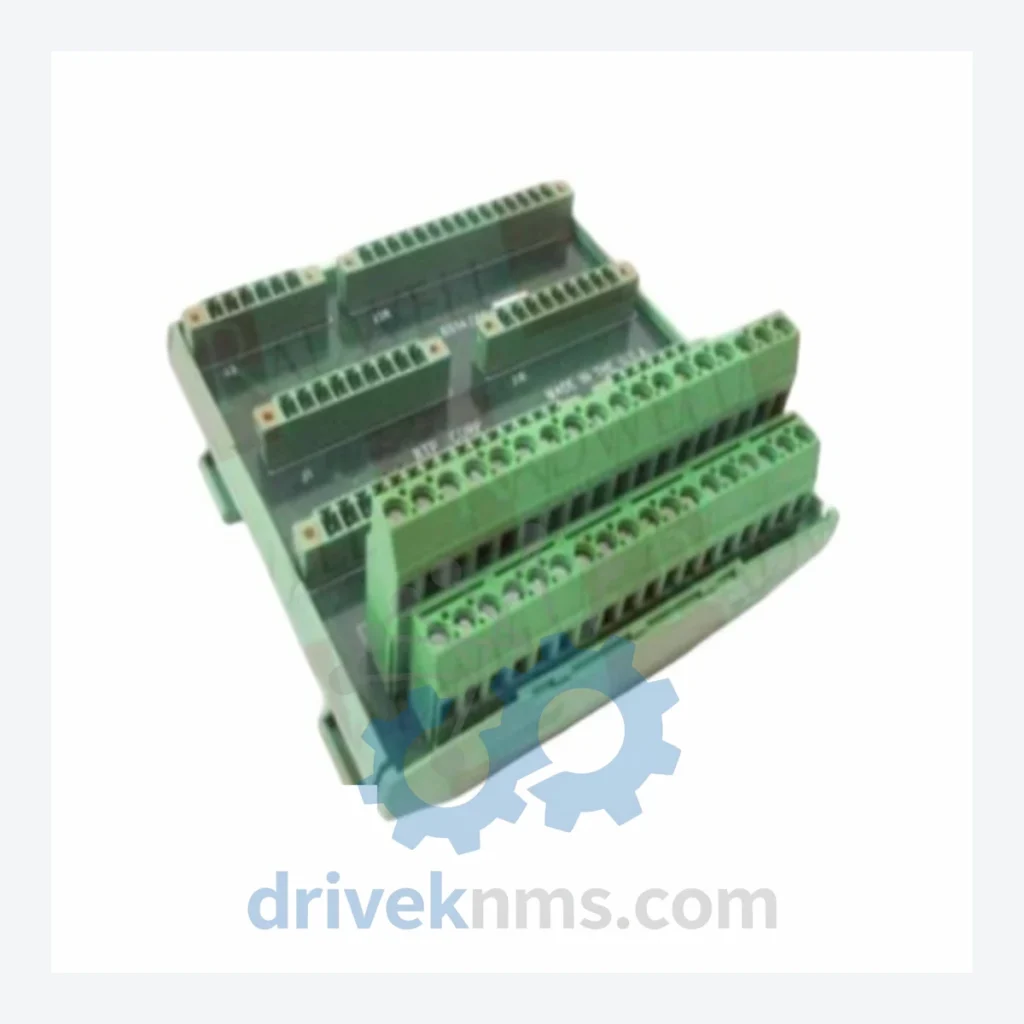

RTP 8514 09-000 Level QA Terminal Board – Obsolete RTP 8514 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on known product family characteristics. No parameters are fabricated. Buyers requiring full electrical datasheets should contact us directly — we will provide documentation from physical unit inspection where available.

Solving the Discontinued Hardware Crisis

The RTP 8514 series was deployed extensively in process industries — refining, chemical, power generation — during the 1990s and early 2000s. These terminal boards sit at the physical boundary between field instrumentation and the control system backplane. They are not interchangeable with boards from other manufacturers without re-engineering the field wiring interface, which in practice means a full I/O subsystem replacement project.

Plants running RTP 3000-based control systems face a specific problem: the control processor and software may still be fully functional and supportable, but a single failed terminal board in a critical loop — level measurement, pressure, flow — can force an unplanned shutdown. The board itself is not the expensive component. The expensive component is the engineering time, the production loss, and the regulatory re-qualification that follows if the plant is forced to replace the entire I/O subsystem rather than swap a single board.

How to extend your RTP-based automation asset life by 5–10 years without a full system upgrade:

Condition & Reliability Assurance

All RTP 8514 09-000 units supplied by DriveKNMS pass a structured 5-step quality process before dispatch review. For obsolete boards of this vintage, standard functional testing is not sufficient — component aging introduces failure modes that do not appear under brief bench tests.

1. Visual and mechanical inspection. Full examination of PCB surface, connector pins, solder joints, and board markings. Boards with visible corrosion, pin damage, or evidence of prior field repair are rejected at this stage.
2. Electrolytic capacitor assessment. Boards from this production era use electrolytic capacitors with a finite service life. Units are assessed for capacitor bulging, electrolyte leakage, and ESR degradation. Where capacitor condition is uncertain, the unit is not offered as a primary spare.
3. Connector and termination inspection. Terminal blocks and backplane connectors are inspected for oxidation, pin straightness, and contact integrity. Corroded or deformed contacts are a primary failure mode in stored boards and are not acceptable.
4. Firmware and revision verification. Board revision markings (09-000 vs. 09-000A) are verified against physical hardware. Revision mismatches are documented and disclosed to the buyer before dispatch review.
5. Functional verification where test fixtures are available. Where DriveKNMS test infrastructure supports it, boards are powered and functionally verified. Test results are documented and available on request.

Key Features for System Maintenance

• Drop-in replacement. The RTP 8514 09-000A is a direct physical and functional replacement for the 8514 09-000 base revision. Field wiring connections, backplane interface, and loop configuration require no modification. Swap time is measured in minutes, not hours.
• No re-programming required. The terminal board carries no user-configurable firmware. Control system loop parameters, PID tuning, and I/O assignments remain intact after board replacement. The control processor does not require re-initialization.
• No engineering re-qualification triggered. A like-for-like terminal board replacement in a validated process environment typically does not trigger a full change management or re-qualification cycle, unlike an I/O subsystem replacement. Confirm with your site quality team, but the engineering burden is substantially lower.
• Avoids system-wide upgrade costs. Replacing a failed terminal board with a verified spare preserves the existing control system investment. The alternative — an unplanned I/O subsystem upgrade — involves hardware, engineering, commissioning, and production loss costs that are orders of magnitude higher.

Can you supply both the 09-000 and 09-000A revisions?
Contact us for current sourcing status. Both revisions are functionally interchangeable as drop-in replacements. We will confirm the exact revision of available units before order confirmation.
