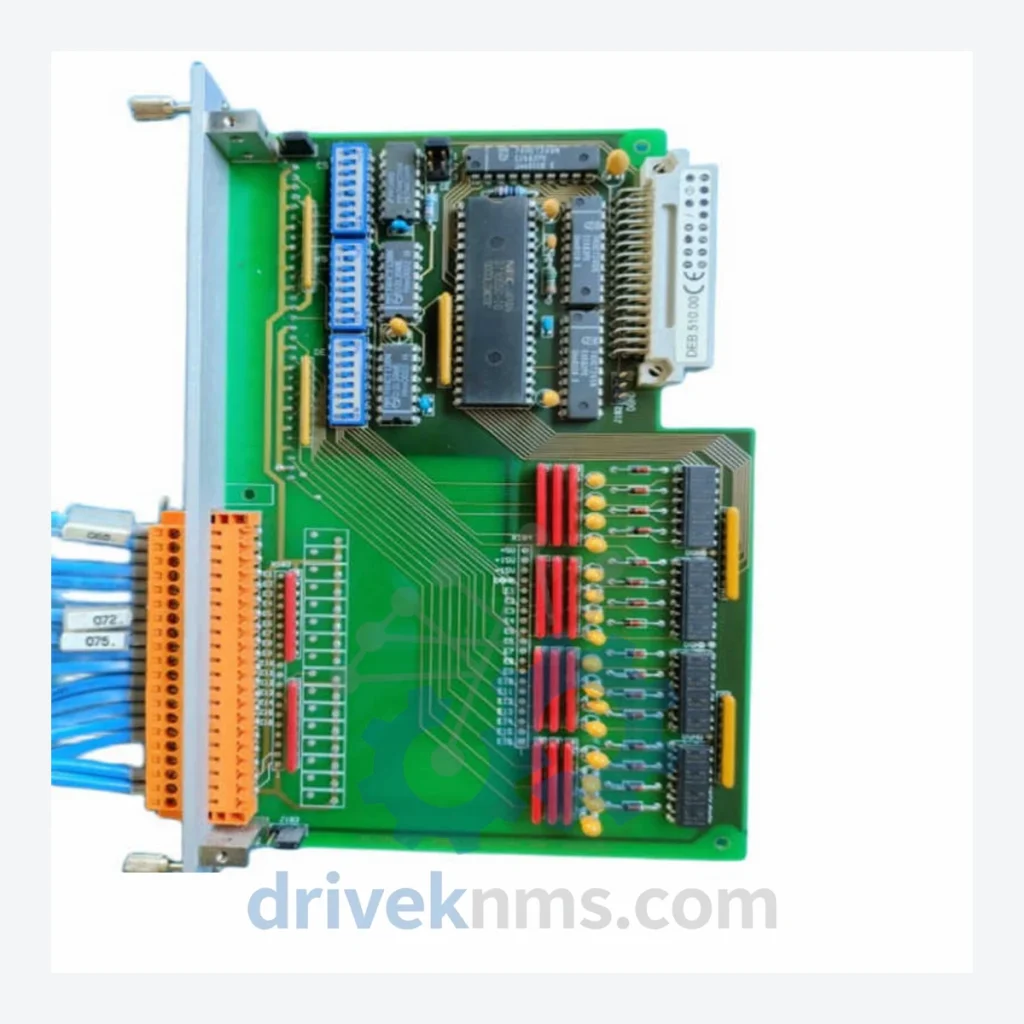

Sabo PLM500 DEB.510.00

Technical Dossier

Product Details And Specifications

SABO PLM500 Series Technical Notes

The Evolution of PLM500 Architecture

The PLM500 platform was introduced as a successor to SABO's earlier PLM300 line, transitioning from parallel backplane signaling to a high-speed serial fieldbus backbone. Early PLM500 revisions (Rev. A/B, circa late 1990s) used proprietary SABO-Bus at 1 Mbit/s. Revision C introduced dual-redundant bus topology and expanded the I/O address space from 512 to 2048 points per rack. Revision D (mid-2000s) added PROFIBUS-DP gateway modules and IEC 61131-3 compliant CPU firmware. The final production revision (Rev. E) incorporated Ethernet-based engineering workstation connectivity via the COM.900 series adapters.

Compatibility constraints are significant: Rev. A backplanes do not support Rev. D/E CPU modules without firmware bridge adapters. Analog modules from the AEB.2xx sub-series require calibration data stored in EEPROM that is revision-specific. Engineers maintaining mixed-revision racks must verify backplane jumper settings (JP1–JP4) against the PLM500 Hardware Compatibility Matrix (SABO Doc. No. PLM5-HCM-003).

PLM500 Full Catalog & Functionalities (SKU List)

Digital Input Modules (DI)

• PLM500 DEB.510.00: 16-channel 24 VDC digital input module, sink/source configurable, 3 ms filter
• PLM500 DEB.510.01: 16-channel 24 VDC digital input, extended diagnostics, short-circuit detection per channel
• PLM500 DEB.520.00: 32-channel 24 VDC digital input, high-density rack format, 1 ms scan time
• PLM500 DEB.530.00: 16-channel 120 VAC digital input module, optically isolated, UL-listed

Digital Output Modules (DO)

• PLM500 DAB.510.00: 16-channel 24 VDC digital output, 0.5 A per channel, transistor sourcing
• PLM500 DAB.510.01: 16-channel 24 VDC digital output with load monitoring and open-wire fault detection
• PLM500 DAB.520.00: 32-channel 24 VDC digital output, high-density, 0.3 A per channel
• PLM500 DAB.530.00: 8-channel relay output module, 2 A / 250 VAC, Form C contacts

Analog Input Modules (AI)

• PLM500 AEB.210.00: 8-channel 4–20 mA analog input, 12-bit resolution, HART pass-through
• PLM500 AEB.210.01: 8-channel 4–20 mA analog input, 16-bit resolution, per-channel HART communication
• PLM500 AEB.220.00: 8-channel ±10 V / 0–10 V analog input, configurable range, 14-bit
• PLM500 AEB.230.00: 4-channel RTD/thermocouple input, supports PT100, PT1000, J, K, T types

Analog Output Modules (AO)

• PLM500 AAB.210.00: 4-channel 4–20 mA analog output, 12-bit, loop-powered, short-circuit protected
• PLM500 AAB.220.00: 4-channel ±10 V analog output, 14-bit resolution, simultaneous update

CPU & Controller Modules

• PLM500 CPU.100.00: Single-slot processor module, 32 MHz, 512 KB program memory, IEC 61131-3 runtime
• PLM500 CPU.200.00: Dual-redundant CPU module, hot-standby switchover <10 ms, 2 MB program memory

Communication & Power Modules

• PLM500 COM.810.00: PROFIBUS-DP master/slave adapter, up to 12 Mbit/s, 126 node addresses
• PLM500 COM.900.00: Ethernet TCP/IP gateway module, 10/100 Mbit, Modbus TCP server
• PLM500 PSU.100.00: 24 VDC rack power supply, 10 A output, wide-range AC input 85–264 VAC
• PLM500 PSU.200.00: Redundant power supply module, hot-swap capable, N+1 configuration

Sourcing Hard-to-Find & Obsolete PLM500 Parts

Customers operating PLM500 systems in regulated environments (nuclear, pharmaceutical, offshore) are advised to request full traceability documentation including country of origin, date code, and test records with each order.

Quality Control for the PLM500 Range

PLM500 modules present specific test challenges due to their proprietary SABO-Bus backplane protocol and multi-layer PCB construction. DriveKNMS applies the following test procedures to all PLM500 units prior to shipment:

• Backplane bus simulation: Each module is seated in a PLM500-compatible test rack running live SABO-Bus traffic to verify address recognition, data integrity, and error-flag behavior.
• Channel-level functional test: All I/O channels are exercised at rated voltage/current. DI modules are tested with both sink and source wiring configurations. AO modules are verified against calibration tolerance (±0.1% FS).
• Thermal soak: Modules are operated at 55°C for 2 hours to screen latent component failures common in aged electrolytic capacitors on PSU and CPU boards.
• Visual and component inspection: PCB inspection under 10× magnification for corrosion, cold solder joints, and capacitor bulge. EEPROM firmware version is read and logged.
