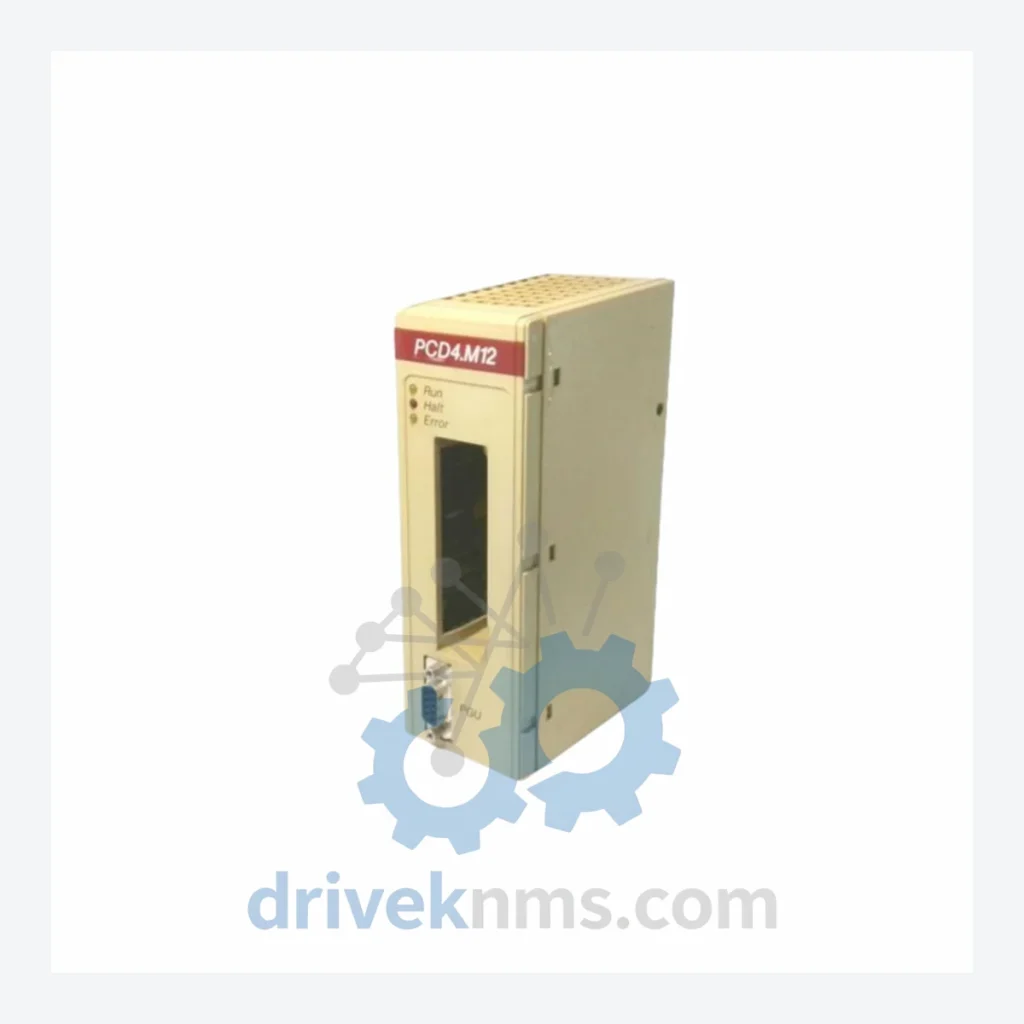

SAIA PCD4.M12 Interface Module – Obsolete PCD4 Series Spare Part

Technical Dossier

Product Details And Specifications

SAIA PCD4.M12 Interface Module – Obsolete PCD4 Series Spare Part

Technical Specifications

Note: Electrical parameters are confirmed only against verified datasheets. No parameters are published here that have not been independently verified. Contact us for full technical documentation.

Solving the Discontinued Hardware Crisis

The SAIA PCD4 platform was widely deployed across European and Asian industrial facilities throughout the 1990s and 2000s — in building automation, water treatment, manufacturing, and process control. The PCD4.M12 interface module served as a critical communication bridge within these architectures, enabling data exchange between the CPU and peripheral I/O or external networks via the SAIA S-Bus protocol.

SAIA-Burgess Controls has since migrated its product line to the PCD2 and PCD3 families, and the PCD4 series is no longer manufactured or supported. Replacement with a modern equivalent is not a simple swap: the PCD4 backplane architecture, addressing scheme, and S-Bus configuration are not directly compatible with current-generation SAIA hardware without full system re-engineering.

For plant managers facing this reality, the calculus is straightforward. A single PCD4.M12 unit — sourced, tested, and delivered — preserves the operational integrity of an entire control system for a fraction of the cost of migration. Facilities that maintain a strategic inventory of two to three spare modules can realistically extend the service life of their PCD4-based infrastructure by 5 to 10 years, deferring capital expenditure until a planned, budgeted upgrade cycle rather than an emergency replacement forced by unplanned failure.

The risk of not acting is asymmetric. The cost of sourcing a spare module today is fixed and manageable. The cost of a production halt caused by an unavailable obsolete part — with no drop-in replacement on the market — is open-ended.

Condition & Reliability Assurance

All PCD4.M12 units supplied by DriveKNMS pass a structured 5-stage inspection protocol before dispatch. This process is designed specifically for legacy industrial hardware, where age-related degradation follows predictable failure patterns:

• Stage 1 – Visual & Mechanical Inspection: Board-level examination for physical damage, connector deformation, and PCB contamination.
• Stage 2 – Electrolytic Capacitor Assessment: Targeted inspection of electrolytic capacitors for bulging, leakage, or ESR drift — the primary failure mode in hardware of this age.
• Stage 3 – Pin & Connector Integrity Check: All backplane connector pins are inspected for oxidation, corrosion, and mechanical deformation. Affected contacts are treated or flagged for rejection.
• Stage 4 – Firmware Version Verification: Where accessible, firmware revision is documented and cross-referenced against known compatible versions for the PCD4 platform.
• Stage 5 – Functional Power-On Test: Unit is powered and basic operational status is confirmed prior to packaging.

Units that do not pass all five stages are not offered for sale. Condition grade (New / Refurbished-Grade-A / Tested-Used) is disclosed in full at the time of quotation.

Key Features for System Maintenance

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced through verified industrial surplus channels. Physical markings, board revision, and component profiles are cross-checked against known-authentic references. We do not source from unverified secondary markets.

Q: Can you source other PCD4 series modules?
A: Yes. DriveKNMS specializes in the full SAIA PCD4 module range. Contact us with your complete BOM or part list for a consolidated quotation.
