SaierNico S8029 Series: Comprehensive Module Range and Technical Overview

The SaierNico S8029 series is a family of industrial protocol converter and gateway modules designed for fieldbus bridging in process automation, building management, and light industrial control environments. These modules are widely deployed in applications requiring transparent, real-time translation between Modbus TCP (Ethernet), Modbus RTU (RS-485/RS-232), and CAN bus networks — three of the most persistent communication standards in global industrial infrastructure.

In chemical processing plants, water treatment facilities, and distributed manufacturing lines, legacy PLCs and SCADA systems continue to operate on Modbus RTU or CAN-based backbones. The S8029 series provides the integration layer that allows modern Ethernet-based supervisory systems to communicate with these installed assets without requiring controller replacement or full network re-engineering. This role — low-cost, non-invasive protocol bridging — gives the S8029 series a stable installed base across Asia-Pacific, Southeast Asia, and emerging industrial markets.

The Evolution of S8029 Architecture

The S8029 series was developed to address the practical integration gap between Ethernet-based industrial networks and legacy serial/CAN fieldbus systems. Early revisions of the series focused on single-direction Modbus RTU slave emulation over TCP master polling — a straightforward use case for SCADA data acquisition from older RTU-based meters and controllers.

Subsequent hardware revisions introduced bidirectional register mapping, configurable baud rates (1200 bps to 115200 bps on the RS-485 port), and expanded CAN bus support with configurable frame ID filtering. The S8029-10 variant, for example, integrates Modbus TCP-to-Modbus RTU and CAN conversion in a single compact module, reducing panel space and eliminating the need for separate gateway hardware.

Configuration is handled via a web-based interface or dedicated PC software, with parameter storage in non-volatile memory — a critical requirement for installations where power cycling must not result in loss of communication mapping. The series supports DIN-rail mounting and operates across an industrial temperature range, making it suitable for both control cabinet and field enclosure deployment.

As Ethernet-to-serial bridging has become a commodity function, the S8029 series occupies the mid-tier of the SaierNico product range — positioned between simple RS-485-to-Ethernet serial servers and full-featured industrial IoT gateways. The series remains in active production, though specific sub-variants may have limited availability depending on regional distribution channels.

S8029 Full Catalog & Functionalities (SKU List)

The following models represent the documented S8029 series range. Each unit performs a specific protocol conversion or gateway function within industrial network architectures:

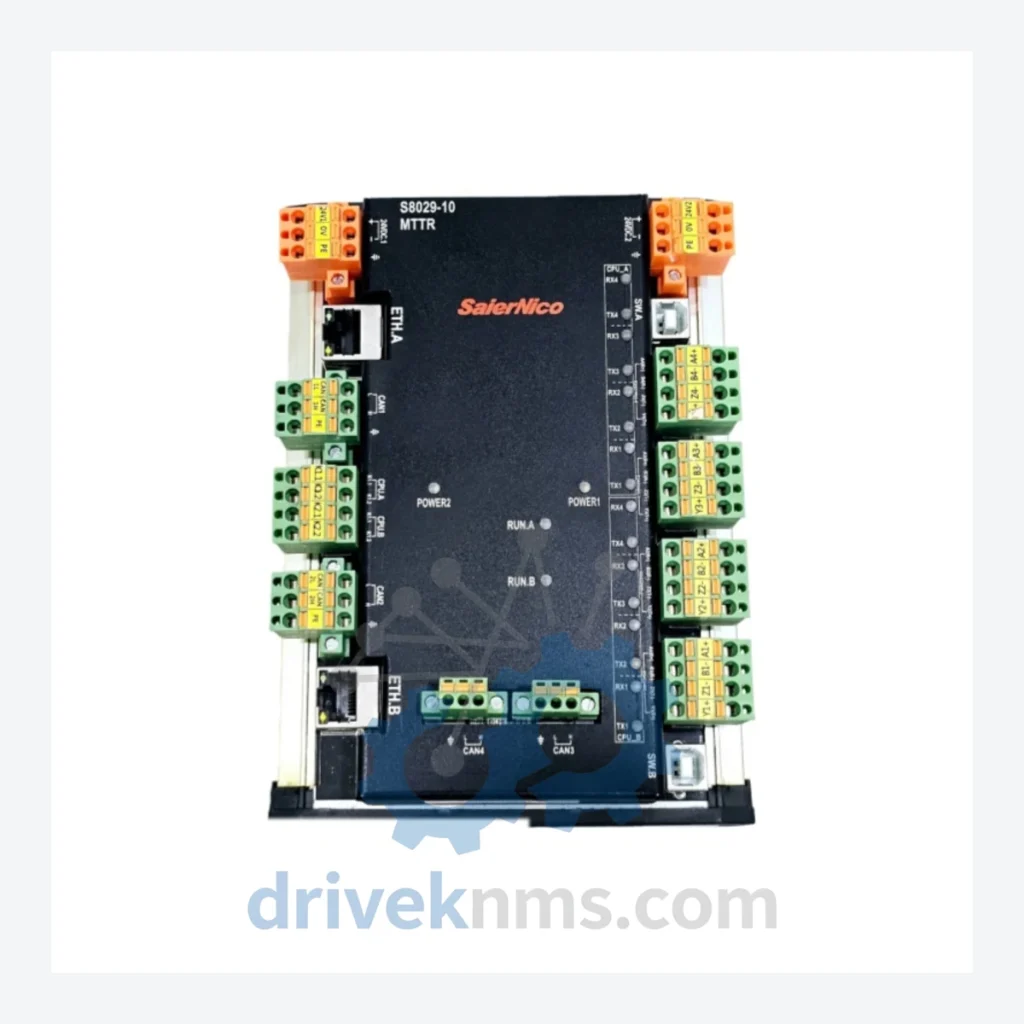

S8029-10: Modbus TCP ↔ Modbus RTU + CAN bus bidirectional converter, single-unit integration
S8029-11: Modbus TCP master to Modbus RTU slave transparent gateway, RS-485 port
S8029-12: Modbus RTU to Modbus TCP server converter, supports multiple TCP client connections
S8029-13: CAN bus to Modbus TCP gateway, configurable CAN frame ID mapping
S8029-14: CAN bus to Modbus RTU converter, RS-232/RS-485 selectable output
S8029-15: Modbus TCP to CAN bus gateway with register-to-frame translation
S8029-16: Dual-port RS-485 Modbus RTU to Ethernet TCP/IP converter
S8029-17: Serial RS-232 to Modbus TCP transparent bridge, industrial DIN-rail housing
S8029-18: Multi-master Modbus TCP aggregator with RTU polling scheduler
S8029-19: CAN 2.0A/2.0B to Modbus RTU protocol translator, extended frame support
S8029-20: Modbus TCP to DNP3 serial gateway for utility SCADA integration
S8029-21: RS-485 Modbus RTU to Profibus DP slave converter
S8029-22: Ethernet Modbus TCP to BACnet MS/TP gateway for BMS integration
S8029-23: CAN open to Modbus TCP gateway, node mapping configurable via software
S8029-24: Modbus RTU to MQTT publisher gateway for IIoT edge data forwarding
S8029-25: Dual Ethernet port Modbus TCP router with VLAN isolation support

Note: Availability of individual sub-variants varies by production batch and regional stock. Contact DriveKNMS to confirm current inventory status for any specific model.

Sourcing Hard-to-Find & Obsolete S8029 Parts

While the S8029 series remains in active production at the platform level, specific sub-variants — particularly earlier hardware revisions with legacy firmware — may no longer be available through standard distribution channels. Facilities that have standardized on a specific S8029 sub-variant face a practical constraint: replacing a gateway module with a different firmware version or hardware revision can require reconfiguration of register maps, baud rate settings, and CAN frame ID tables — engineering work that carries both cost and downtime risk.

DriveKNMS maintains stock of SaierNico S8029 modules sourced through authorized and secondary market channels. For installations where a specific hardware revision is required for firmware compatibility, our team can cross-reference serial number ranges and firmware version markings to identify suitable units. We supply both new-in-box stock where available and verified functional units for models no longer in active production.

For facilities managing multiple S8029 installations across sites, we recommend establishing a minimum buffer stock of two to three units per deployed variant. The cost of holding spare gateway modules is negligible compared to the engineering and downtime cost of a communication failure between a SCADA master and a legacy RTU network.

Quality Control for the S8029 Range

Protocol converter modules present a specific testing challenge: functional verification requires active network traffic, not simply power-on confirmation. DriveKNMS applies the following test procedure to all S8029 units prior to dispatch:

1. Power and hardware inspection: Visual inspection of PCB, connector pins, and DIN-rail clip integrity. Power supply input tested at rated voltage with current draw measurement against specification baseline.

2. Ethernet port verification: Link establishment confirmed at 10/100 Mbps. Web configuration interface accessed and parameter read/write cycle completed.

3. Modbus TCP functional test: Module configured as Modbus TCP server. Test master polls holding registers and coils; response timing and register accuracy verified against known reference values.

4. Modbus RTU serial port test: RS-485 port looped to a Modbus RTU simulator. Baud rate, parity, and stop bit configurations cycled through standard industrial settings (9600/19200/38400/115200 bps). Frame integrity confirmed at each setting.

5. CAN bus functional test (where applicable): CAN port connected to test node. Standard and extended frame transmission and reception verified. Frame ID filtering configuration tested via software interface.

Units that fail any stage of this procedure are quarantined and not dispatched. Test records are retained and available upon request for critical installations.
