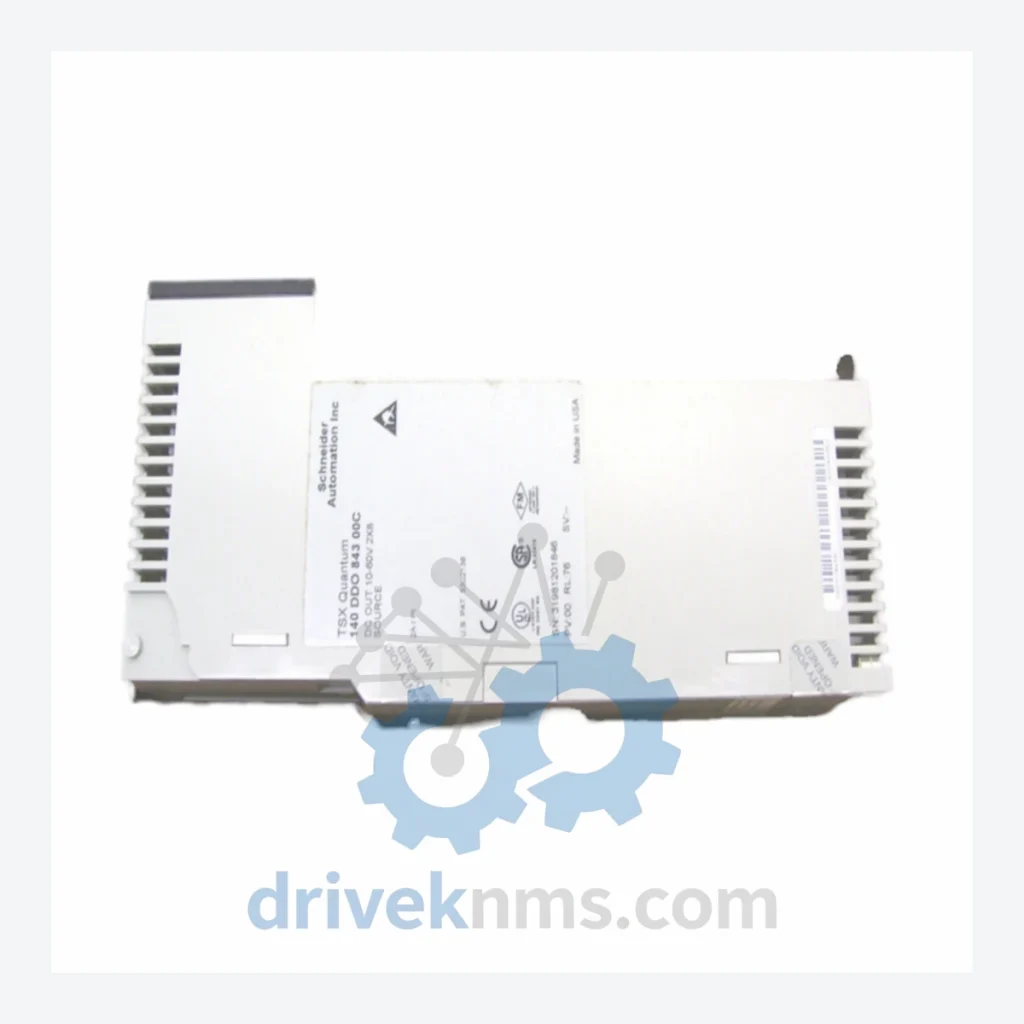

Schneider Electric Modicon Quantum 140DDO84300: Discrete Output Module

Technical Dossier

Product Details And Specifications

Schneider Electric Modicon Quantum Series Technical Notes

The Schneider Electric Modicon Quantum series is one of the most widely deployed programmable automation controller (PAC) platforms in global heavy industry. Installed across petrochemical refineries, nuclear power generation facilities, offshore oil and gas platforms, and large-scale chemical processing plants, the Quantum architecture has served as the backbone of safety-critical and process-critical automation since its commercial introduction in the early 1990s. Its 800-series backplane infrastructure, deterministic Modbus Plus and Ethernet I/O communication, and modular slot-based design made it the reference standard for large-scale DCS migration projects throughout the 1990s and 2000s. The 140DDO84300 is a 32-channel discrete output module rated at 24 VDC, sourcing type, with a per-channel current capacity of 0.5 A, designed for direct integration into the Quantum local or remote drop backplane.

The Evolution of Modicon Quantum Architecture

The Quantum platform was introduced by Modicon (subsequently acquired by Schneider Electric in 1994) as a successor to the 984 series. The original Quantum backplane supported up to 16 I/O slots per local rack, with the 140CPS series power supplies providing regulated DC bus power. Early CPU modules such as the 140CPU11302 operated at limited memory capacities and supported Modbus Plus as the primary peer-to-peer network. Through successive generations, the CPU line evolved through the 140CPU43412A and 140CPU65150 to the Unity-compatible 140CPU65160 and 140CPU67160, which introduced Ethernet TCP/IP as a native communication layer and supported IEC 61131-3 programming via Unity Pro software.

Remote I/O drops were enabled through the 140CRA93100 and 140CRP93100 adapter/head modules, allowing distributed I/O architectures across large plant footprints using RIO coaxial cable or Ethernet. The introduction of the Quantum Hot Standby system (using 140CPU67160 paired with 140CHS11000 cables) addressed high-availability requirements in continuous process industries. As of 2023, Schneider Electric has formally announced end-of-life for the majority of the Quantum catalog, with migration paths recommended toward the Modicon M580 ePAC platform. This transition has significantly increased demand for legacy Quantum spare parts to support installed base maintenance without full system replacement.

Modicon Quantum Full Catalog & Functionalities – SKU List

Discrete Output Modules

• 140DDO84300: 32-ch 24VDC sourcing discrete output, 0.5A per channel, backplane-mounted
• 140DDO88500: 32-ch 24VDC sourcing discrete output, 0.5A, with diagnostics
• 140DDO15310: 16-ch 24VDC sourcing discrete output, 2A per channel
• 140DDO35300: 32-ch relay discrete output, 2A per channel, Form A contacts

Discrete Input Modules

• 140DDI35300: 32-ch 24VDC discrete input, sink/source compatible
• 140DDI84100: 32-ch 24VDC discrete input, high-density, backplane-mounted
• 140DDI15310: 16-ch 24VDC discrete input, 2-wire sensor compatible
• 140DAI54000: 16-ch 115VAC discrete input module

Analog Input / Output Modules

• 140AII33000: 16-ch analog input, 4–20 mA / 0–10V, 12-bit resolution
• 140AIO33000: 8-ch analog input + 4-ch analog output combination module
• 140AVO02000: 4-ch analog voltage output, ±10V, 12-bit
• 140ACO13000: 4-ch analog current output, 4–20 mA, 12-bit

CPU / Controller Modules

• 140CPU65150: Quantum Unity CPU, 7MB user memory, Modbus Plus + Ethernet
• 140CPU67160: Quantum Hot Standby-capable Unity CPU, dual Ethernet ports
• 140CPU43412A: Legacy Quantum CPU, Concept/ProWORX compatible, Modbus Plus

Communication & Network Adapters

• 140CRA93100: Quantum remote I/O drop adapter, RIO coaxial, 64-module capacity
• 140CRP93100: Quantum RIO head module for remote drop configuration
• 140NOE77101: Ethernet TCP/IP network option module, 10/100 Mbps
• 140NOM21100: Modbus Plus network option module, peer-to-peer

Power Supply Modules

• 140CPS11420: 115/230VAC input power supply, 20A at 5VDC backplane bus
• 140CPS21400: 24VDC input power supply, 14A at 5VDC backplane bus
• 140CPS41400: Redundant power supply module for high-availability racks

Quality Control for the Modicon Quantum Range

All Quantum modules processed by DriveKNMS undergo a structured inspection and functional verification protocol prior to dispatch. Discrete output modules including the 140DDO84300 are tested for per-channel output continuity, overcurrent protection response, and backplane connector integrity using a dedicated Quantum rack test fixture. Analog modules are verified against full-scale linearity and zero-offset specifications using calibrated signal sources traceable to national standards. CPU modules are powered up, firmware version-verified, and subjected to memory read/write cycle testing. Communication modules including NOE Ethernet and NOM Modbus Plus cards are tested for network initialization, frame transmission, and error-free operation under simulated load. All modules are inspected for capacitor condition, relay contact wear (where applicable), and conformal coating integrity before packaging.
