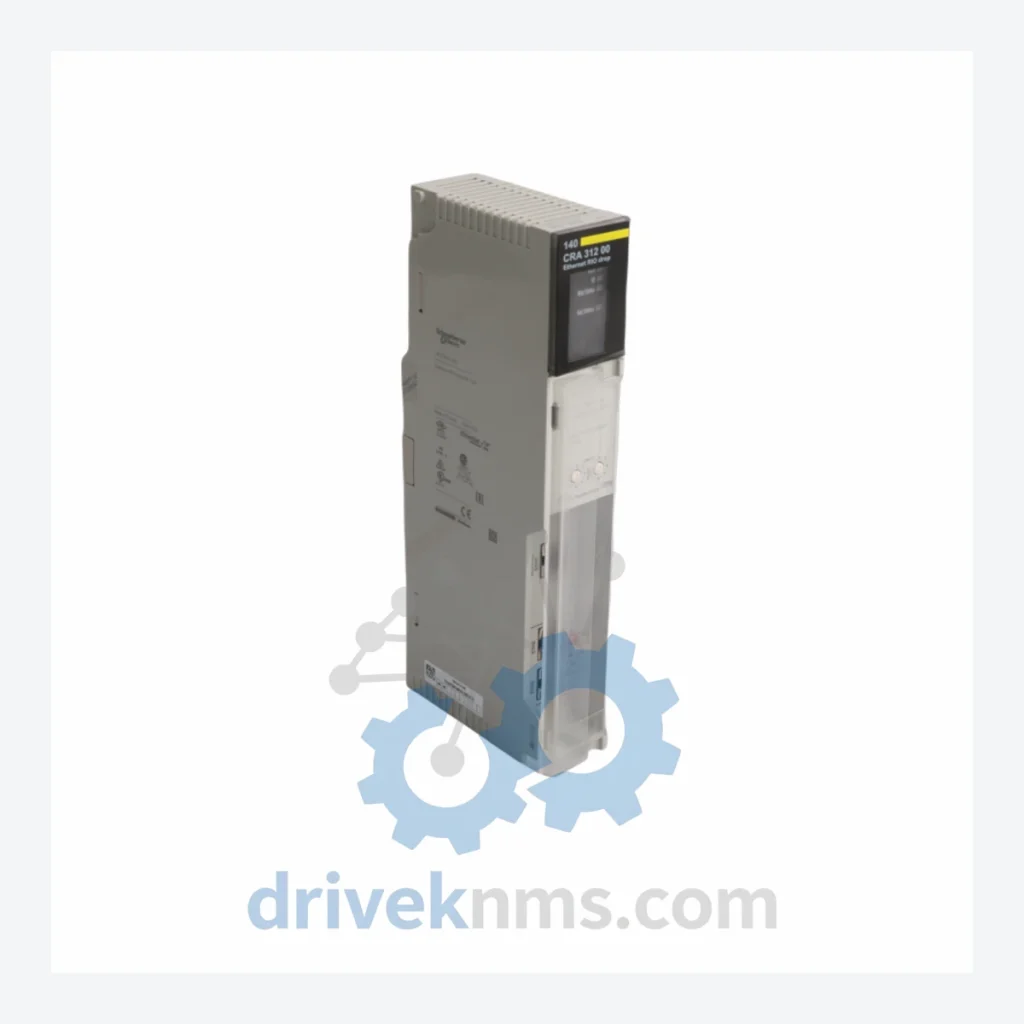

Schneider Modicon Quantum 140 Modules — 140CRA31200

Technical Dossier

Product Details And Specifications

Schneider Modicon Quantum 140 Series: Comprehensive Module Range and Technical Overview

The Schneider Electric Modicon Quantum 140 series is a high-availability programmable automation controller (PAC) platform deployed across the most demanding segments of global heavy industry. Installations span continuous-process environments including petrochemical refineries, offshore oil and gas platforms, nuclear power generation facilities, water treatment infrastructure, and large-scale chemical manufacturing plants. The platform's modular backplane architecture, deterministic Modbus Plus and Ethernet I/O scanning, and IEC 61131-3 compliant Unity Pro programming environment have made it the reference standard for safety-critical and high-uptime automation since its commercial introduction in the early 1990s. The 140-series designation covers the full range of rack-mounted modules — CPUs, discrete I/O, analog I/O, communication adapters, power supplies, and specialty function modules — all sharing a common backplane bus and a unified addressing scheme. Global installed base estimates place Quantum 140 deployments in excess of 500,000 racks across more than 100 countries, making long-term spare parts availability a primary operational concern for plant asset managers.

The Evolution of Modicon Quantum 140 Architecture

The Quantum 140 platform traces its lineage to the Modicon 984 series, which established the foundational backplane and I/O addressing conventions later formalized in the 140-series product numbering. The first-generation Quantum CPUs (140CPU11302, 140CPU11303) introduced in the mid-1990s operated on a proprietary Modbus Plus network at 1 Mbit/s, with local rack I/O scanning handled by a dedicated coprocessor. Memory was limited to 64 KB of user logic, and the programming interface required Concept software running on Windows 3.x or NT 4.0.

The second architectural generation, introduced circa 2000–2004, brought the 140CPU43412A and 140CPU53414A processors with expanded user memory (up to 7 MB), integrated Ethernet ports, and compatibility with the Unity Pro development environment. This generation also introduced the Hot Standby redundancy modules (140CHS11000, 140CHS21000), enabling dual-CPU configurations with sub-100ms failover for critical process loops.

The third and current generation — represented by the 140CPU65150 and 140CPU65160 — added dual Ethernet ports with Device Net and Profibus-DP master capability, expanded to 3.5 MB of user application memory, and introduced cybersecurity hardening features including role-based access control and encrypted firmware updates. Unity Pro XL v13 and later versions provide the primary programming and diagnostic interface for this generation.

Compatibility across generations is constrained by backplane slot width (all 140-series modules use the same physical connector), but CPU firmware versions must be matched to I/O module firmware revisions to avoid bus communication faults. Remote I/O drops using the 140CRA31200 adapter are compatible with all CPU generations provided the RIO scanner module (140CRP93100 or 140CRP93200) firmware is at revision 2.0 or higher.

Modicon Quantum 140 Full Catalog & Functionalities (SKU List)

CPU Modules

• 140CPU11302: First-gen CPU, 64 KB user memory, Modbus Plus, Concept software only
• 140CPU11303: First-gen CPU variant, 64 KB user memory, enhanced diagnostics port
• 140CPU43412A: Mid-range CPU, 448 KB user memory, Modbus Plus + Ethernet, Unity Pro compatible
• 140CPU53414A: High-end CPU, 7 MB user memory, dual Ethernet, Unity Pro XL
• 140CPU65150: Current-gen CPU, 3.5 MB, dual Ethernet, Profibus-DP master, cybersecurity features
• 140CPU65160: Current-gen CPU with extended diagnostics, 3.5 MB, dual Ethernet, IEC 61850 ready

Remote I/O Communication Modules

• 140CRA31200: Remote I/O head adapter for Quantum RIO drops; supports up to 31 I/O modules per drop; Modbus Plus compatible
• 140CRP93100: RIO scanner module for local rack; manages up to 31 remote drops; 1 Mbit/s Modbus Plus
• 140CRP93200: Enhanced RIO scanner; dual-cable redundancy support; extended diagnostics

Discrete Input (DI) Modules

• 140DAI34000: 32-channel 24 VDC discrete input, sink/source, IEC Type 1
• 140DAI54000: 16-channel 115 VAC discrete input, isolated, 10 ms filter
• 140DAI74000: 32-channel 24 VDC discrete input, high-speed, 1 ms filter
• 140DDI35300: 32-channel 24 VDC discrete input, protected, LED status per channel

Discrete Output (DO) Modules

• 140DAO84000: 32-channel 24 VDC discrete output, 0.5 A per channel, source type
• 140DAO84010: 32-channel 24 VDC discrete output, 2 A per channel, protected
• 140DDO35300: 32-channel 24 VDC discrete output, 0.5 A, LED diagnostics
• 140DDO88500: 8-channel relay output, 2 A/channel, 250 VAC/30 VDC rated contacts

Analog Input (AI) Modules

• 140ACI04000: 8-channel analog current input, 4–20 mA, 12-bit resolution
• 140AVI03000: 8-channel analog voltage input, ±10 V / 0–10 V, 12-bit
• 140ATI03000: 8-channel thermocouple input, types J/K/T/E/R/S/B, 16-bit

Analog Output (AO) Modules

• 140ACO02000: 4-channel analog current output, 4–20 mA, 12-bit resolution
• 140AVO02000: 4-channel analog voltage output, ±10 V, 12-bit, short-circuit protected

Power Supply Modules

• 140CPS11420: 115/230 VAC input power supply, 3.4 A at 5 VDC backplane output
• 140CPS21400: 24 VDC input power supply, 8 A at 5 VDC, for DC-powered panels
• 140CPS41400: Redundant power supply module, hot-swap capable, 8 A at 5 VDC

Hot Standby / Redundancy Modules

• 140CHS11000: Hot Standby module for primary rack; fiber-optic link to standby rack
• 140CHS21000: Hot Standby module for standby rack; sub-100 ms failover

Sourcing Hard-to-Find & Obsolete Modicon Quantum 140 Parts

Schneider Electric formally placed the majority of first- and second-generation Quantum 140 CPU and communication modules into End of Life (EOL) or End of Commercialization (EOC) status between 2015 and 2022. Modules including the 140CPU11302, 140CPU43412A, 140CRP93100, and 140CHS11000 are no longer manufactured, and OEM replacement stock is exhausted through standard distribution channels. However, the operational lifespan of a Quantum 140 installation routinely extends 20–30 years, meaning that plant operators face a multi-decade requirement for spare parts that the OEM can no longer fulfill.

DriveKNMS maintains a dedicated inventory of tested, pull-out, and refurbished Quantum 140 modules sourced from decommissioned plant equipment, controlled factory overstock, and verified third-party suppliers. Each unit is catalogued by part number, firmware revision, and physical condition grade. For obsolete CPUs and RIO adapters — including the 140CRA31200 — DriveKNMS provides firmware version verification, backplane connector inspection, and functional loop testing prior to shipment. Emergency same-day dispatch is available for critical process shutdowns. Contact the procurement team with your full BOM or individual part numbers for availability confirmation and lead time.

Quality Control for the Modicon Quantum 140 Range

Quantum 140 modules present specific quality control challenges due to the complexity of their backplane bus communication protocol and the age-related failure modes common in long-fielded industrial electronics. DriveKNMS applies a structured test protocol to every 140-series module processed through its facility.

For CPU modules, the test sequence includes: power-on self-test (POST) verification, user memory read/write cycle testing across the full address space, Ethernet port link negotiation and packet integrity testing, and Unity Pro connectivity validation using a reference PLC rack. For RIO adapter modules such as the 140CRA31200, the protocol adds Modbus Plus token-passing verification, I/O drop enumeration with a minimum of four downstream I/O modules, and scan cycle timing measurement against the published specification of 5 ms per drop. Analog I/O modules undergo calibration verification against NIST-traceable reference standards, with channel-by-channel linearity and offset error measurement recorded in the test report. All modules are subjected to a 48-hour burn-in at 50°C ambient prior to final inspection and packaging.
