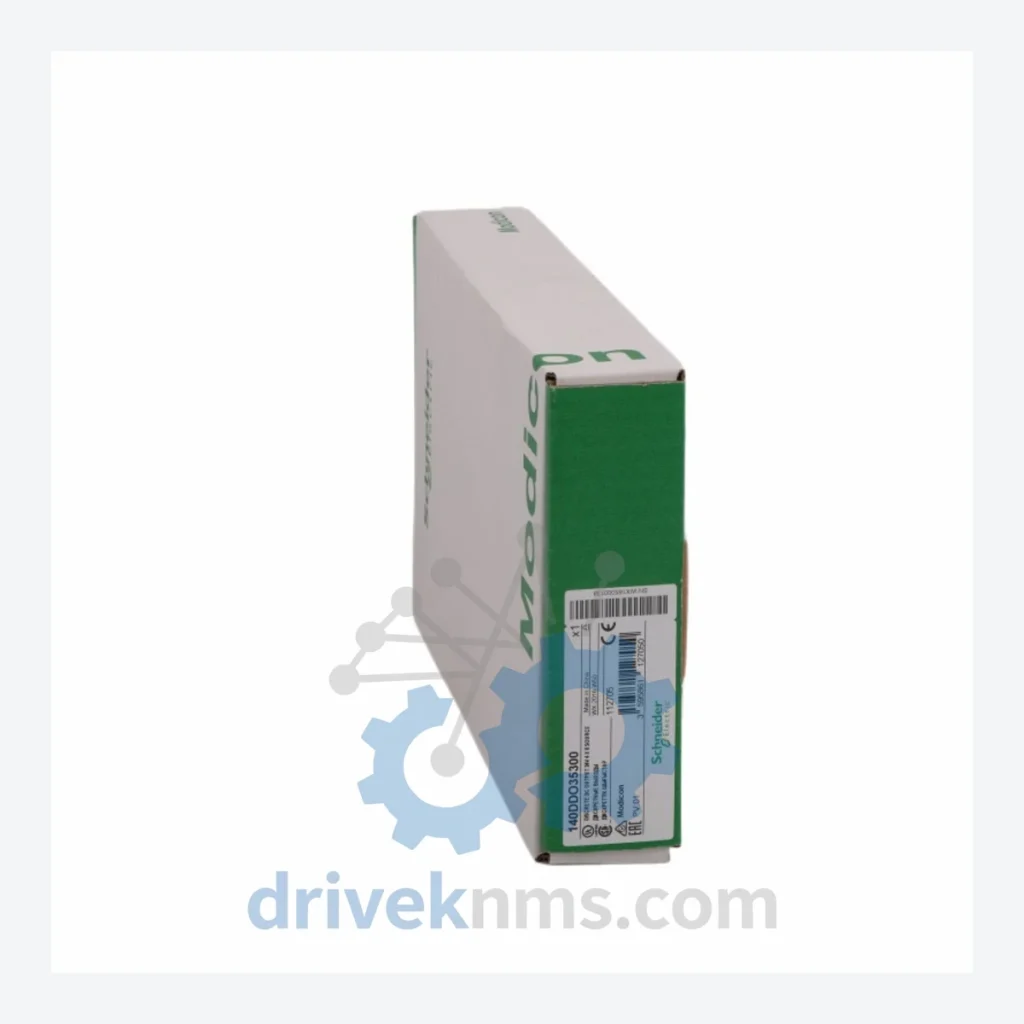

Schneider Electric Modicon Quantum 140DDO35300: DC Output Module 24V 4×8 Source

Technical Dossier

Product Details And Specifications

Schneider Electric Modicon Quantum Series Technical Notes

The Schneider Electric Modicon Quantum platform is one of the most widely deployed Distributed Control System (DCS) and Programmable Logic Controller (PLC) architectures in global heavy industry. Installed across petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, and large-scale chemical processing plants, the Quantum series established a benchmark for high-availability, rack-based I/O architecture throughout the 1990s and 2000s. The 140DDO35300 — a 24VDC, 4×8 source-type discrete output module — is a representative component of this platform, providing 32 individually fused transistor outputs organized in four groups of eight, rated for 24V DC loads at up to 0.5A per point.

The Evolution of Modicon Quantum Architecture

The Modicon Quantum platform was introduced by Modicon (subsequently acquired by Schneider Electric in 1994) as a successor to the 984 series. Its S908 remote I/O bus and Modbus Plus communication backbone defined an era of deterministic industrial networking before Ethernet-based fieldbus protocols became dominant. The platform's backplane architecture supports hot-standby CPU redundancy, making it a preferred choice for Safety Instrumented Systems (SIS) in ATEX-classified environments.

Early Quantum deployments (circa 1993–2000) relied on 140CPU11302 and 140CPU21304 processors with limited memory. Mid-generation systems (2000–2010) introduced the 140CPU65150 and 140CPU67160 with expanded RAM and Ethernet co-processor modules (140NOE77100, 140NOE77101). Late-generation and current-support systems use the 140CPU67160S with Unity Pro / EcoStruxure Control Expert programming environments. The 140DDO35300 output module is compatible across all Quantum backplane generations (140XBP01600 through 140XBP01600), requiring no firmware dependency — it is purely hardware-addressed via slot position.

As of 2026, the Modicon Quantum series has entered its end-of-commercialization phase. Schneider Electric has announced migration paths toward the Modicon M580 (ePAC) platform. However, the installed base remains extensive, and replacement modules such as the 140DDO35300 remain critical for lifecycle extension programs at facilities with 15–30 year operational horizons.

Modicon Quantum Full Catalog & Functionalities (SKU List)

Discrete Output Modules (DO)

• 140DDO35300: 32-point 24VDC source output, 4×8 group, 0.5A/point, transistor, individually fused
• 140DDO88500: 32-point 24VDC source output, 0.5A/point, high-density transistor output module
• 140DAO84000: 32-point relay output, 2A/point, 24–240VAC/VDC, Form A contacts
• 140DAO85300: 16-point relay output, 5A/point, 24–240VAC/VDC, Form C contacts

Discrete Input Modules (DI)

• 140DDI35300: 32-point 24VDC sink/source input, 4×8 group, IEC Type 1 compatible
• 140DDI84100: 32-point 24VDC input, high-density, 3ms filter, LED status per point
• 140DAI54000: 32-point 120VAC discrete input, optically isolated, 2×16 group
• 140DAI74000: 16-point 240VAC discrete input, optically isolated

Analog I/O Modules

• 140ACI04000: 8-channel analog current input, 4–20mA, 12-bit resolution
• 140AVI03000: 8-channel analog voltage input, ±10V / 0–10V, 12-bit
• 140ACO02000: 4-channel analog current output, 4–20mA, 12-bit
• 140AVO02000: 4-channel analog voltage output, ±10V, 12-bit
• 140ATI03000: 8-channel thermocouple input, types J/K/T/E/R/S/B, cold junction compensated

CPU & Processor Modules

• 140CPU65150: Quantum CPU, 512KB user memory, Modbus Plus + Ethernet co-processor slot
• 140CPU67160: Quantum CPU, 7MB user memory, dual Ethernet, Unity Pro compatible
• 140CPU67160S: Hot-standby capable CPU, 7MB, dual Ethernet, SIL2 certified

Communication & Network Modules

• 140NOE77100: Ethernet TCP/IP network option module, 10/100 Mbps, Modbus TCP server
• 140NOE77101: Ethernet TCP/IP module with enhanced web server and I/O scanning
• 140NOM21200: Modbus Plus network option module, dual-port, peer-to-peer messaging

Power Supply Modules

• 140CPS11420: 115/230VAC input power supply, 3.4A @ 24VDC bus output
• 140CPS21400: 24VDC input power supply, 11A output, for DC-powered panels
• 140CPS41400: Redundant power supply module, 24VDC, hot-swap capable

Quality Control for the Modicon Quantum Range

The Modicon Quantum backplane uses a proprietary S908 parallel bus for I/O communication. Output modules such as the 140DDO35300 are tested using a dedicated backplane simulator that replicates the electrical and timing characteristics of the Quantum rack bus. Each module undergoes the following verification steps:

• Point-by-point output activation test across all 32 channels under rated 24VDC load
• Fuse continuity verification for all four output groups
• Backplane connector pin integrity check (gold-plated edge connector inspection)
• Thermal cycling test: 0°C to 60°C operational range validation
• LED status indicator functional verification per output point
• Isolation resistance test between output commons and chassis ground (>10MΩ)
