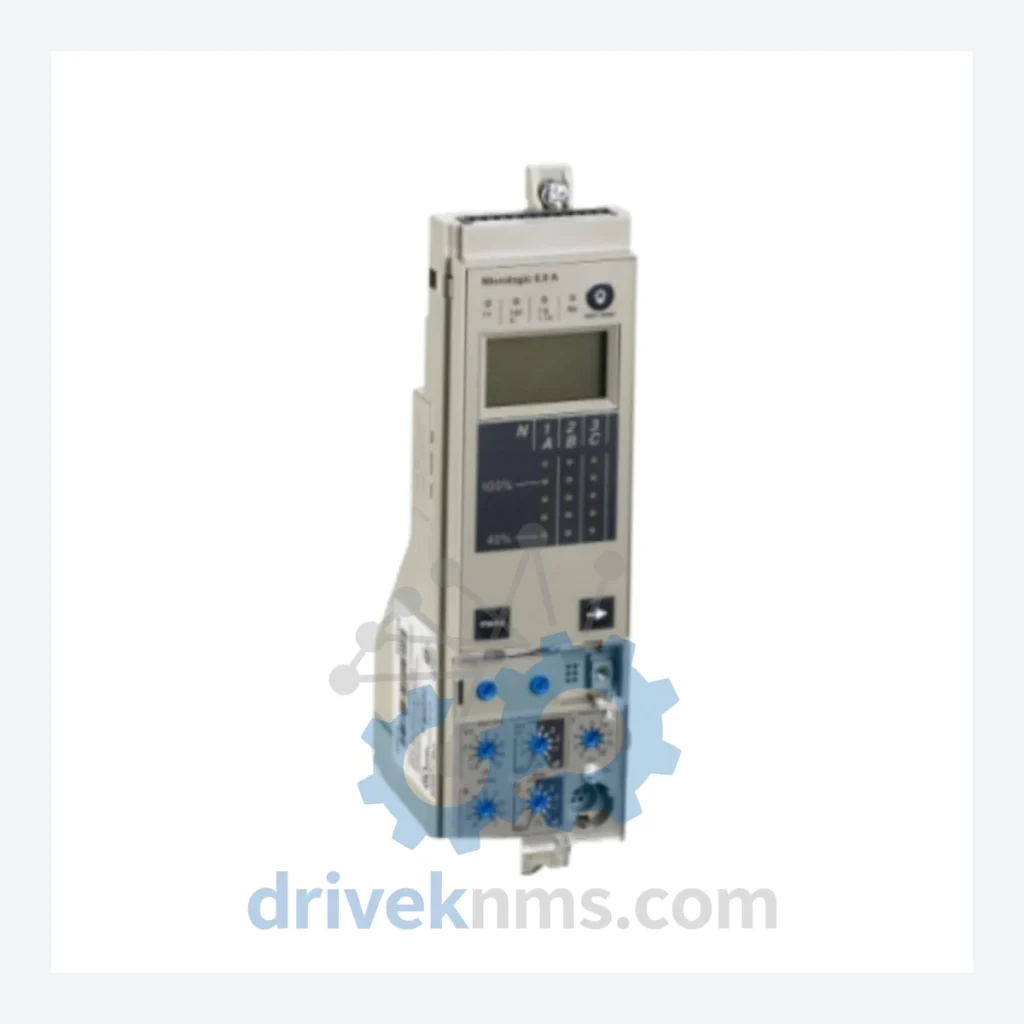

Schneider Electric MicroLogic 6.0A Control Unit – Obsolete Trip Unit Spare Part

When a MicroLogic 6.0A trip unit fails inside a Masterpact NT/NW or Compact NS circuit breaker, the consequences extend far beyond a single component. The entire low-voltage switchgear assembly becomes non-functional. In facilities where this breaker protects a critical bus section, the downstream impact — production downtime, emergency engineering assessments, and potential forced migration to a new switchgear platform — can reach costs measured in hundreds of thousands to millions of dollars. DriveKNMS holds verified physical stock of the MicroLogic 6.0A, providing a direct path to restoring protection coordination without triggering a full panel replacement.

Technical Specifications

Solving the Discontinued Hardware Crisis

The MicroLogic 6.0A was the protection intelligence of an entire generation of Schneider Electric low-voltage power distribution systems. Installed across industrial plants, data centers, water treatment facilities, and commercial high-rises throughout the 1990s and 2000s, these trip units were engineered for 20–30 year service lives — but the supply chain supporting them has not kept pace.

When Schneider Electric transitioned to the E and X series MicroLogic platform, backward mechanical compatibility was maintained at the breaker frame level, but the A-series trip unit itself became a sourcing problem. OEM channels no longer stock it. Authorized distributors have exhausted their buffer inventory. The result: a plant engineer facing a failed MicroLogic 6.0A has three options — source it from the secondary market, replace the entire breaker (requiring re-coordination studies and potential busbar modification), or shut down the protected circuit indefinitely.

For facilities operating Masterpact NT/NW or Compact NS breakers in main incomer or bus-tie positions, the third option is not viable and the second option carries engineering costs and lead times of 8–20 weeks. Sourcing a verified replacement trip unit from DriveKNMS resolves the failure event in days, not months, and preserves the existing protection coordination settings without requiring a new relay study.

How to extend the service life of your Masterpact / Compact NS installation by 5–10 years:

• Maintain a dedicated spare pool. For any facility with more than three Masterpact or Compact NS frames using MicroLogic A-series trip units, holding a minimum of two spare MicroLogic 6.0A units eliminates single-point-of-failure exposure. The cost of two spare trip units is a fraction of one day of unplanned production downtime.
• Audit trip unit condition proactively. MicroLogic A-series units are susceptible to electrolytic capacitor degradation after 15+ years of service. A scheduled inspection every 3–5 years — checking for display anomalies, self-test failures, and erratic tripping — allows planned replacement rather than emergency sourcing.
• Document your protection settings before any removal. Record all Ir, Isd, Ii, and Ig settings prior to removing a trip unit. This eliminates re-commissioning risk and avoids the need for a protection engineer to re-derive coordination parameters from scratch.
• Defer full switchgear replacement. A new Masterpact MTZ switchgear upgrade, including engineering, installation, and commissioning, typically costs USD 150,000–500,000 per panel. Maintaining the existing Masterpact NT/NW installation with verified spare trip units defers this capital expenditure by a measurable 5–10 years, freeing budget for higher-priority asset renewal.
• Centralize legacy spare parts procurement. Assign a single procurement contact responsible for sourcing MicroLogic A-series and other legacy Schneider components. Fragmented sourcing across multiple brokers increases counterfeit risk and inflates unit costs.

Condition & Reliability Assurance

Obsolete components sourced from the secondary market carry inherent risk. DriveKNMS applies a structured 5-step qualification process to every MicroLogic 6.0A unit before it is offered for sale:

1. Visual and mechanical inspection. Full external examination for housing cracks, connector pin corrosion, and label integrity. Units with evidence of field damage or unauthorized disassembly are rejected.
2. Electrolytic capacitor assessment. Internal capacitors are the primary age-related failure mode in A-series trip units. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned with OEM-equivalent components or removed from inventory.
3. Firmware version verification. The installed firmware revision is recorded and cross-referenced against known compatibility matrices for Masterpact NT/NW and Compact NS frames. Units with unverifiable or corrupted firmware are not sold.
4. Functional self-test execution. Each unit undergoes the MicroLogic built-in self-test sequence to confirm protection function integrity across L, S, I, and G channels.
5. Pin and connector integrity check. All interface connectors are inspected under magnification for oxidation, fretting corrosion, and mechanical deformation. Affected contacts are cleaned and treated prior to shipment.

Key Features for System Maintenance

• Drop-in replacement. The MicroLogic 6.0A installs directly into compatible Masterpact NT/NW and Compact NS frames with no mechanical modification. Existing wiring harnesses and cradle connectors are retained.
• No reprogramming of the breaker frame required. Protection settings are configured on the trip unit itself via the front-panel rotary switches. There is no PLC or DCS configuration change required upon replacement.
• Preserves existing protection coordination. Replacing a like-for-like MicroLogic 6.0A unit maintains the original relay coordination study results. No new arc flash study is triggered by a trip unit swap of identical model.
• Avoids engineering reconstruction costs. A forced migration from Masterpact NT to MTZ platform requires new engineering drawings, updated protection studies, and potential civil modifications. A verified spare trip unit eliminates this cost entirely.
• Immediate dispatch. Stock on hand. No lead time associated with OEM manufacturing queues.

FAQ

Q: What warranty applies to an obsolete MicroLogic 6.0A unit?
A: DriveKNMS provides a 90-day functional warranty on all refurbished and tested units. New old stock (NOS) units carry a 180-day warranty. Warranty covers functional failure under normal operating conditions and excludes physical damage caused during installation.

Q: How do I confirm the unit is genuine Schneider Electric and not a counterfeit?
A: All units supplied by DriveKNMS include original Schneider Electric labeling, date codes, and serial number traceability where available. We do not source from unverified brokers. Upon request, we can provide pre-shipment inspection photos of the specific unit allocated to your order.

Q: Should I buy multiple units as long-term spares?
A: For any facility with more than two Masterpact or Compact NS frames using MicroLogic A-series trip units, purchasing 2–3 spare units is a sound asset protection strategy. Secondary market availability of A-series units will continue to decline. Current pricing reflects today's availability; future sourcing will be more difficult and more expensive.

Q: Can this unit be used with Masterpact NW frames as well as NT?
A: Compatibility depends on the specific breaker frame rating and the MicroLogic mounting interface. Contact DriveKNMS with your breaker nameplate data and we will confirm compatibility before shipment.

Q: What is the lead time?
A: Units in stock ship within 2–3 business days of order confirmation. International freight options include DHL Express, FedEx International Priority, and sea freight for bulk orders.
