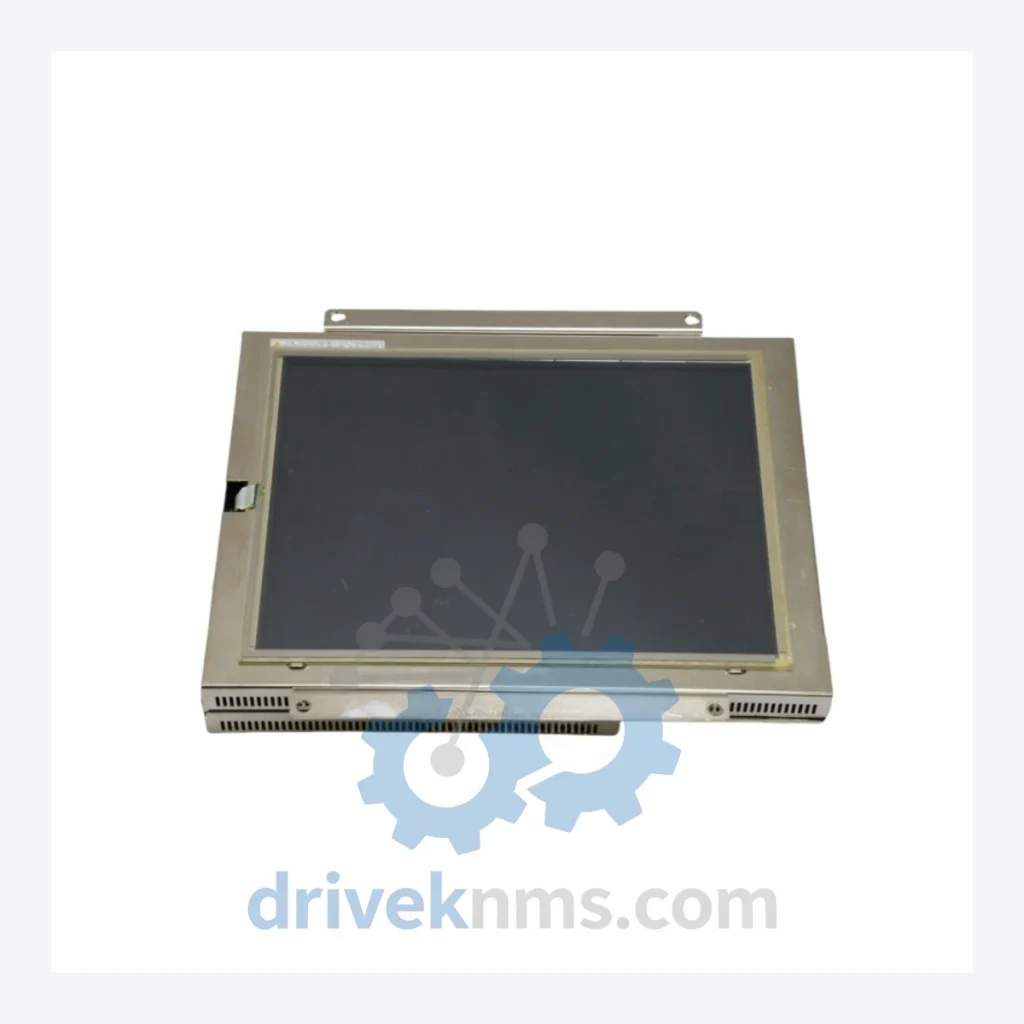

Schneider Electric UF7811-2-DV1-24V Operator Panel – Obsolete Modicon Spare Part

Technical Dossier

Product Details And Specifications

Schneider Electric UF7811-2-DV1-24V Operator Panel – Obsolete Modicon Spare Part: Protecting Your Automation Assets When Replacements No Longer Exist

When a critical operator panel fails on a legacy Modicon-based control system, the financial exposure is immediate and severe. A full control system migration — including new hardware, engineering hours, software re-commissioning, and production downtime — routinely costs manufacturers between $500,000 and $3,000,000 USD per line. The Schneider Electric UF7811-2-DV1-24V is a discontinued operator panel that once served as the primary human-machine interface in Modicon automation architectures. DriveKNMS maintains verified stock of this obsolete unit, offering procurement managers a direct path to asset protection without the catastrophic cost of forced system retirement.

Technical Specifications

Solving the Discontinued Hardware Crisis

The UF7811-2-DV1-24V belongs to Schneider Electric's legacy Modicon UF7800 operator panel family — a product line that has been out of production for years. These panels were widely deployed in process manufacturing, automotive assembly, and utilities infrastructure throughout the 1990s and 2000s. Many of these installations remain operational today because the underlying control logic is deeply embedded in proprietary Modicon programming environments that cannot be trivially migrated to modern platforms.

When this operator panel fails, plant engineers face a hard choice: source the original part or commit to a full system overhaul. The overhaul path is rarely straightforward. It requires re-engineering control logic, retraining operators, recertifying safety systems, and absorbing weeks of production loss. For facilities running 24/7 operations, even a two-week shutdown can eliminate an entire quarter's margin.

DriveKNMS specializes in sourcing exactly these hard-to-find components. Our global procurement network spans authorized distributors, decommissioned plant inventories, and certified refurbishment channels across Europe, North America, and Asia. When standard supply chains have nothing, we frequently do.

Extending the operational life of a Modicon-based system by 5 to 10 years through targeted spare part procurement is not a workaround — it is a legitimate capital asset management strategy. The cost of a verified UF7811-2-DV1-24V replacement is a fraction of the cost of system retirement. For plant managers under pressure to defer capital expenditure, this is the most defensible financial decision available.

Condition & Reliability Assurance

Obsolete parts sourced from secondary markets carry real risk if not properly vetted. DriveKNMS applies a 5-step QA protocol to every legacy panel before shipment:

• Step 1 – Visual & Structural Inspection: Full external examination for physical damage, housing cracks, and connector integrity.
• Step 2 – Electrolytic Capacitor Assessment: Aging capacitors are the leading cause of failure in legacy HMI hardware. Each unit is inspected for capacitor bulging, leakage, and ESR degradation.
• Step 3 – Firmware Version Verification: Where applicable, firmware versions are documented and confirmed against known-compatible releases for the target system.
• Step 4 – Pin & Connector Corrosion Check: All I/O pins, backplane connectors, and terminal blocks are inspected under magnification for oxidation and corrosion that could cause intermittent faults.
• Step 5 – Functional Power-On Test: Units are powered at rated voltage and observed for correct initialization, display function, and communication response where test fixtures permit.

Units that do not pass all five steps are not shipped. Condition is clearly documented in the shipment certificate provided with every order.

Key Features for System Maintenance

• Drop-in Replacement: The UF7811-2-DV1-24V is a direct hardware replacement for the original installation position. No mechanical modification required.
• No Reprogramming Required: Operator panel replacement does not require re-loading PLC logic or reconfiguring the control system, provided the replacement unit is the same part number and firmware-compatible version.
• Avoids Engineering Reconstruction Costs: Sourcing this spare eliminates the need to engage system integrators for migration projects that can run $200,000–$800,000 in engineering fees alone.
• Documented Chain of Custody: Every unit ships with a condition report, test record, and export compliance documentation suitable for corporate procurement audit requirements.
• Multi-Currency Payment Support: USD, EUR, CNY, and other major currencies accepted. Wire transfer, TT, and trade finance options available for qualified buyers.
• Global Express Logistics: DHL and FedEx express shipping available to over 180 countries. Customs documentation and HS code classification provided as standard.

FAQ

Q: What warranty applies to a discontinued part like the UF7811-2-DV1-24V?
A: DriveKNMS provides a 12-month warranty on all shipped units, covering functional failure under normal operating conditions. Warranty claims are handled with direct replacement or full refund, subject to return inspection.

Q: How do I know the unit is genuine and not counterfeit?
A: All units are sourced through traceable channels. We provide a condition certificate and, where available, original manufacturer labeling. We do not ship units with removed or altered serial numbers.

Q: Is the unit new or refurbished?
A: Stock condition varies. We clearly state whether a unit is new-old-stock (NOS), factory-refurbished, or professionally reconditioned. You will know exactly what you are receiving before payment is confirmed.

Q: Can I order multiple units for long-term spares inventory?
A: Yes. Bulk orders for strategic spares stocking are actively encouraged. Volume pricing is available. We recommend procurement managers secure at least 2–3 units given the scarcity of this part number on the open market.

Q: What is the return policy?
A: Units that arrive non-functional or materially different from the described condition are eligible for return within 30 days of receipt. Return shipping costs are covered by DriveKNMS for verified warranty claims.

Q: What payment terms are available for corporate buyers?
A: Standard terms are 100% TT in advance for first-time orders. Established accounts may qualify for net payment terms. Contact us to discuss your procurement requirements.
