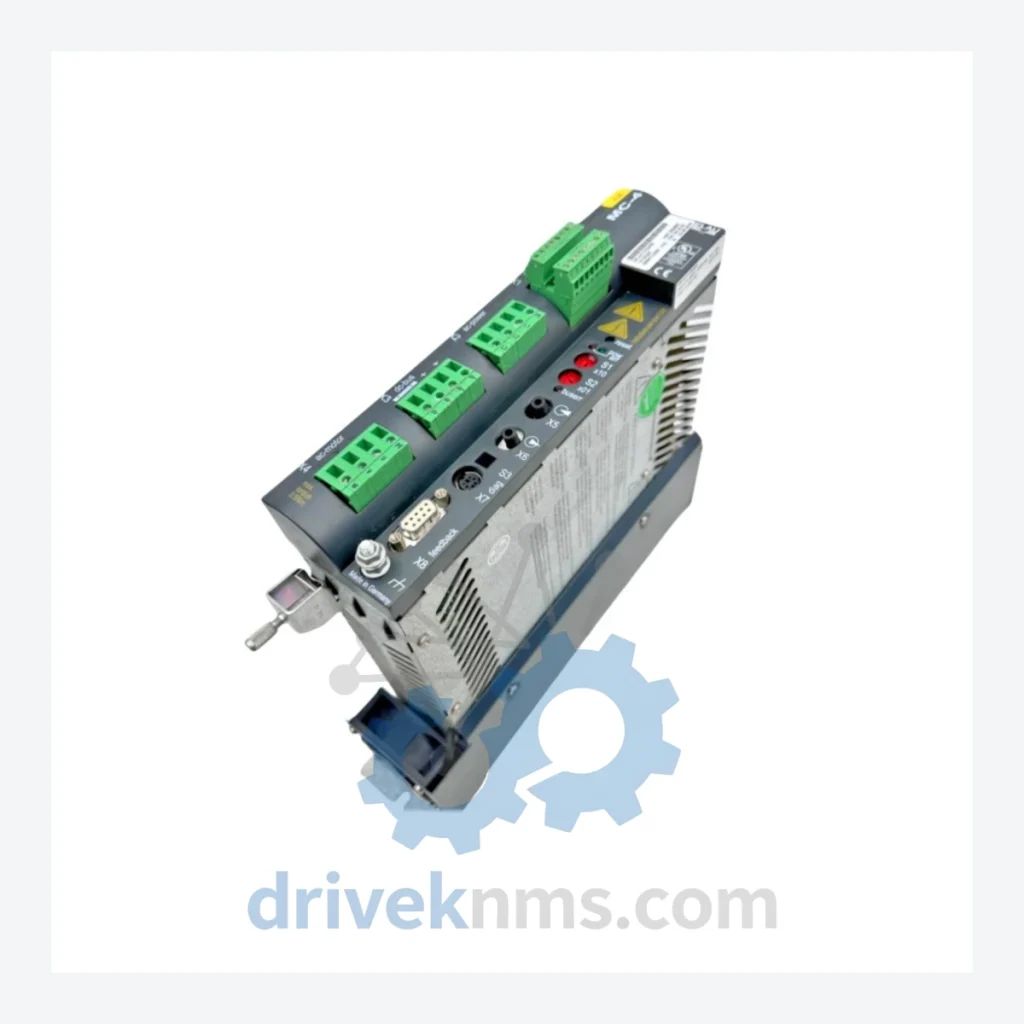

Schneider MC-4/11/10/400 Motion Controller – Obsolete ELAU PacDrive Spare Part

Technical Dossier

Product Details And Specifications

Schneider MC-4/11/10/400 Motion Controller – Obsolete ELAU PacDrive Spare Part

When the MC-4/11/10/400 motion controller fails on a PacDrive-based packaging or converting line, the consequences are immediate and severe. A single unplanned shutdown can cost a facility tens of thousands of dollars per hour in lost production. A forced system-wide migration to a modern motion platform — new controllers, new drives, new HMI, new commissioning, new operator retraining — routinely runs into the hundreds of thousands, sometimes exceeding seven figures for multi-axis installations. The MC-4/11/10/400 is a discontinued component. OEM supply channels are closed. The only viable path to protecting your existing automation asset is a verified replacement unit sourced from a specialist in legacy industrial hardware.

DriveKNMS maintains a controlled inventory of the MC-4/11/10/400 (Hardware Revision: E0P603 / Firmware: SW 00.22.03). Each unit is processed through a documented inspection protocol before dispatch. Stock is finite and not replenishable from the manufacturer.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ELAU PacDrive platform was widely deployed across packaging, printing, converting, and food processing lines throughout the 1990s and 2000s. The MC-4 series served as the central motion controller coordinating servo axes via the SERCOS interface. When Schneider Electric absorbed ELAU, the PacDrive product line entered a managed phase-out. Firmware branches such as SW 00.22.03 are no longer supported, and hardware revisions like E0P603 are not available through any authorized distribution channel.

For plant managers operating these systems, the calculus is straightforward: a verified replacement MC-4/11/10/400 at a fraction of the cost of a platform migration preserves years of additional productive life from an asset that is otherwise fully amortized. The engineering investment already made in PacDrive — the motion programs, the cam profiles, the synchronized axis configurations — has zero residual value the moment the controller is replaced with an incompatible platform. Retaining the original hardware architecture protects that investment.

Facilities that have adopted a structured spare parts strategy for their PacDrive installations — maintaining at minimum one cold-standby MC-4 unit — consistently report mean time to recovery measured in hours rather than weeks. Those without a spare face lead times of 8–20 weeks for sourcing, assuming a unit can be located at all, plus commissioning time for any firmware or hardware revision mismatch.

Condition & Reliability Assurance

Discontinued hardware sourced from secondary markets carries inherent risk. DriveKNMS applies a structured 5-step inspection protocol to every MC-4/11/10/400 unit before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Full external examination for physical damage, connector pin condition, and housing integrity. Corroded or bent pins are documented and assessed for recoverability.
• Step 2 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in controllers of this vintage. Boards are inspected for bulging, leakage, and ESR deviation. Units with compromised capacitors are either reconditioned or rejected.
• Step 3 – Firmware Version Verification: The firmware revision is confirmed against the unit's label and internal identification. SW 00.22.03 compatibility is verified. No unauthorized firmware modifications are accepted.
• Step 4 – Functional Power-On Test: Where test infrastructure permits, units are powered and basic initialization sequences are confirmed.
• Step 5 – Packaging and ESD Protection: Units are packed in anti-static shielding bags with appropriate cushioning for international freight.

Key Features for System Maintenance

• Drop-in replacement: The MC-4/11/10/400 at hardware revision E0P603 and firmware SW 00.22.03 is a direct substitute for a failed unit of the same specification. No re-engineering of the motion program is required.
• No reprogramming required: Existing PLC logic, cam tables, and axis configurations stored on the PacDrive system remain intact. Swap the controller, restore the project backup, resume production.
• Avoids platform migration costs: Replacing a single controller unit eliminates the need for a full drive system overhaul, new HMI integration, and the associated downtime and engineering fees.
• Extends asset life by 5–10 years: A verified spare MC-4 unit, combined with a documented preventive maintenance schedule for the broader PacDrive installation, provides a credible operational runway without capital expenditure on a new motion platform.

FAQ

• What warranty applies to a discontinued unit? DriveKNMS provides a 90-day warranty against functional failure under normal operating conditions. Warranty terms are confirmed in writing at the time of sale.
• Is the unit new or refurbished? Stock condition varies. Each listing specifies whether the unit is new-old-stock (NOS), tested-serviceable, or reconditioned. Condition documentation is provided upon request before purchase.
• Can you supply multiple units for long-term spares holding? Yes. For facilities managing multiple PacDrive lines or planning a multi-year maintenance strategy, DriveKNMS can discuss volume allocation. Contact us directly to discuss availability and lead times.
• What if the firmware version does not match exactly? Firmware revision compatibility within the SW 00.xx.xx branch should be confirmed with your system integrator before installation. DriveKNMS can advise on known compatibility ranges based on available documentation.
• How is the unit shipped? Units are shipped in ESD-safe packaging via tracked international freight. Export documentation is provided for customs clearance.
