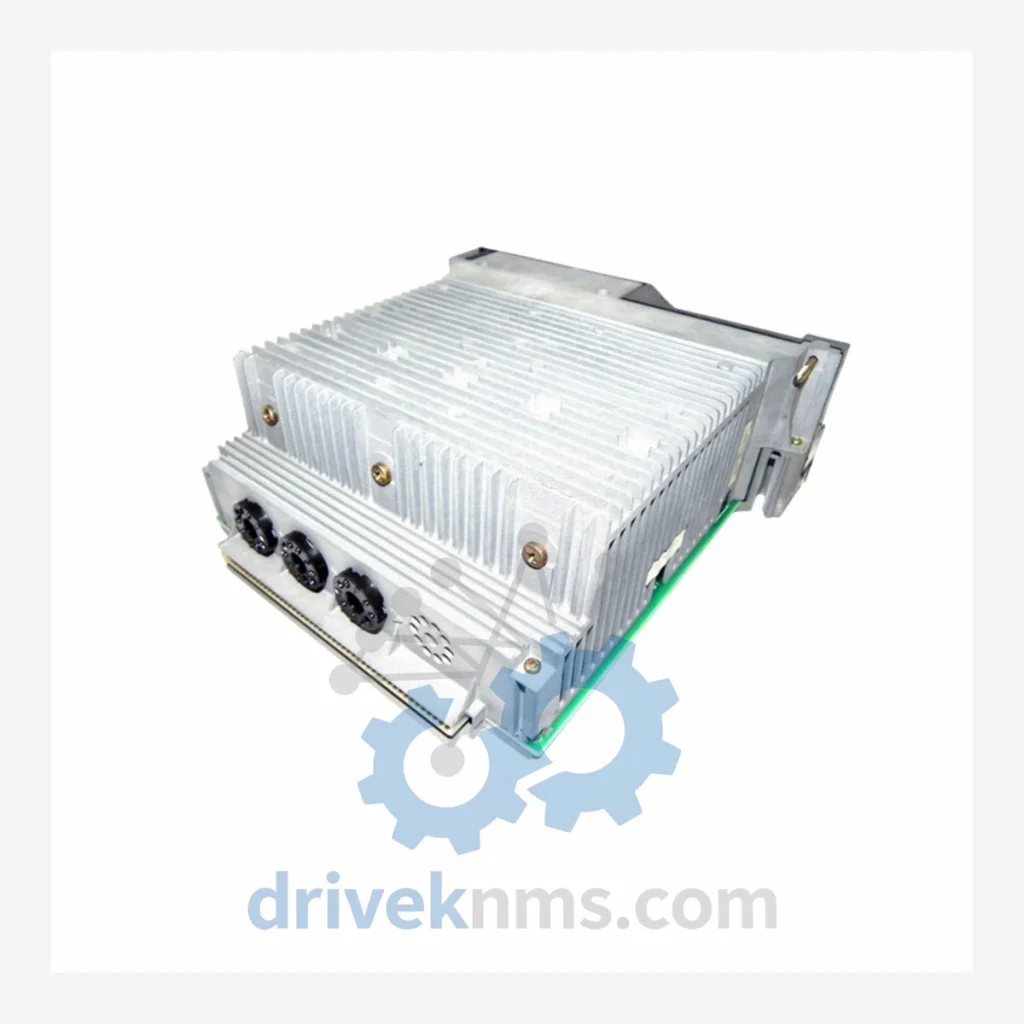

Schneider TSXSUP702 Power Supply Module – Obsolete TSX7 Spare Part

When a TSXSUP702 power supply module fails in a running TSX7 PLC system, the consequences are not limited to a single machine going offline. The TSX7 series has been discontinued by Schneider Electric, and no direct replacement exists within the current Modicon product line that offers a drop-in fit without engineering rework. A forced migration to a modern PLC platform — including hardware, software, I/O rewiring, and recommissioning — routinely costs manufacturing operations between USD 150,000 and USD 800,000 per line, excluding production downtime losses. A single verified spare TSXSUP702 unit eliminates that exposure entirely.

DriveKNMS maintains a limited inventory of TSXSUP702 modules sourced through controlled industrial channels. Each unit undergoes a documented inspection process before dispatch.

Technical Specifications

Note: Electrical parameters (input voltage range, output ratings, protection class) are not published here to prevent specification errors. Please contact us directly for verified datasheet confirmation prior to ordering.

Solving the Discontinued Hardware Crisis

The TSX7 platform was a workhorse of European and Asian industrial automation through the 1980s and 1990s. Many of these systems remain embedded in chemical processing, water treatment, and discrete manufacturing lines where the cost and risk of a full PLC migration cannot be justified on a short timeline. The TSXSUP702 is the rack power supply that keeps the entire TSX7 backplane alive. Without it, every I/O module, every CPU card, and every communication interface in that rack goes dark simultaneously.

Schneider Electric's current Modicon M340 and M580 platforms are not backward-compatible with TSX7 rack hardware. Any transition requires new I/O wiring, software rewriting from PL7 or similar legacy environments, and a full Factory Acceptance Test cycle. For a plant manager operating under a capital expenditure freeze or managing a system that is scheduled for decommission in three to seven years, absorbing that cost now makes no financial sense. Sourcing a verified TSXSUP702 spare is the operationally sound decision.

The strategic case for maintaining a buffer stock of two to three TSXSUP702 units is straightforward: the module is the single point of failure for the entire rack. Its failure mode is typically sudden rather than gradual. Lead time for sourcing obsolete units from the open market, once a failure occurs, ranges from two to eight weeks. A pre-positioned spare reduces that recovery window to hours.

Condition & Reliability Assurance

DriveKNMS applies a five-stage inspection protocol to all obsolete power supply modules before they are offered for sale:

• Visual and mechanical inspection: Housing integrity, connector pin condition, and label legibility are verified. Units with physical damage to the backplane connector are rejected.
• Electrolytic capacitor assessment: Power supply modules of this generation are susceptible to electrolytic capacitor degradation. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Units with compromised capacitors are either reconditioned by qualified technicians or removed from inventory.
• Firmware and hardware revision verification: Where revision markings are present on the PCB or label, these are documented and disclosed to the buyer prior to shipment.
• Pin and contact corrosion check: Backplane connector pins are inspected under magnification for oxidation and corrosion. Affected contacts are treated or the unit is rejected.
• Functional power-on test: Where test bench infrastructure permits, units are powered on and output stability is verified before packaging.

Condition grade (New, Refurbished-Grade-A, or Tested-Used) is disclosed on the invoice and confirmed in writing before payment.

Key Features for System Maintenance

• Drop-in replacement: The TSXSUP702 installs directly into the TSX7 rack slot without mechanical modification.
• No reprogramming required: The power supply module carries no user-configurable firmware. Replacement does not affect PLC program integrity or I/O configuration.
• Avoids engineering rework costs: Unlike a platform migration, a like-for-like spare replacement requires no system integrator involvement, no software revalidation, and no production line requalification.
• Extends asset service life by 5–10 years: For systems scheduled for decommission within a decade, maintaining a verified spare supply is the lowest-cost continuity strategy available. The capital cost of two spare TSXSUP702 units is a fraction of one day of unplanned downtime on a production line.
• Supports phased migration planning: Holding verified spares allows operations teams to plan and budget a controlled migration on their own schedule, rather than executing an emergency replacement under production pressure.

FAQ

What warranty applies to an obsolete TSXSUP702 unit?
DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New old-stock units carry a 180-day warranty. Warranty terms are confirmed in writing before shipment.

How do I confirm the unit is genuine and not counterfeit?
All units are sourced from documented industrial channels. Serial numbers, PCB revision markings, and label characteristics are cross-referenced against known-good references. Buyers may request pre-shipment photographs of the specific unit reserved for their order.

Should I order more than one unit?
For any TSX7 installation that is expected to remain in service for more than 18 months, holding a minimum of two TSXSUP702 spares is advisable. The module is no longer manufactured, and open-market availability will continue to decline. Pricing for obsolete parts also tends to increase as supply contracts. Securing stock now locks in current market pricing.

Can you source other TSX7 series modules?
Yes. DriveKNMS specializes in obsolete Schneider Electric and Telemecanique components across the TSX7, TSX17, and TSX37 families. Contact us with your full BOM for availability assessment.
