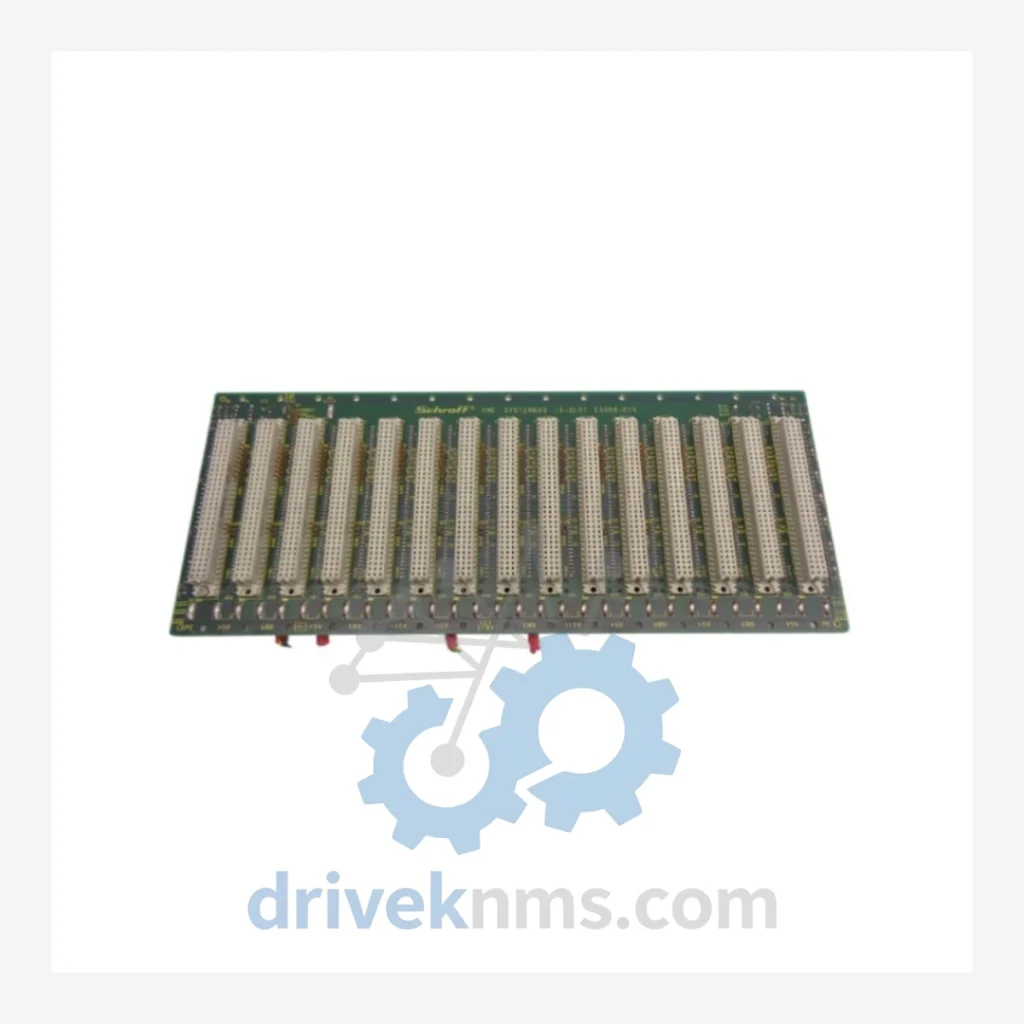

Schroff 23000-015 Backplane Board – Obsolete VMEbus Spare Part

When a VMEbus backplane fails in a production environment, the consequences extend far beyond the cost of a single board. A full system migration — new rack architecture, re-engineering of I/O mapping, software re-validation, and operator retraining — routinely runs into the hundreds of thousands of dollars, and in complex process control or defense applications, the figure climbs higher still. The Schroff 23000-015 is a discontinued backplane board that remains the structural backbone of subrack systems deployed across industrial automation, telecommunications infrastructure, and embedded computing platforms built on VMEbus architecture. DriveKNMS holds verified stock of this component. Once this inventory is exhausted, no further supply can be guaranteed.

Technical Specifications

Note: Electrical parameters specific to this board revision are not published here to prevent misapplication. Contact our technical team for configuration verification before ordering.

Solving the Discontinued Hardware Crisis

VMEbus-based subrack systems from Schroff were the preferred platform for high-reliability embedded computing throughout the 1990s and 2000s. They are still actively running in power generation control rooms, railway signaling cabinets, semiconductor fab equipment, and military ground systems — environments where the cost of platform migration is prohibitive and the operational risk of downtime is unacceptable.

The Schroff 23000-015 backplane board is not a commodity item that can be substituted with a generic alternative. Its slot configuration, bus termination characteristics, and mechanical form factor are specific to the subrack assembly it was designed for. When this board fails, the entire subrack becomes non-functional. There is no software patch, no firmware workaround, and no cross-brand substitute that resolves the hardware gap.

Factory managers operating these systems face a binary choice: source the original part, or commit to a capital-intensive platform replacement. For facilities running lean maintenance budgets, the calculus is straightforward. A verified spare of the 23000-015 purchased today can defer a six-figure system overhaul by five to ten years — provided the board is sourced from a supplier with documented quality controls.

How to extend your VMEbus system life by 5–10 years:

• Maintain a minimum of two spare backplane boards per subrack chassis in active service.
• Conduct annual visual inspection of backplane connectors for oxidation and mechanical stress fractures.
• Store spare boards in anti-static, humidity-controlled packaging — electrolytic capacitor degradation accelerates in uncontrolled environments.
• Document firmware and BIOS versions of all active CPU boards in the subrack so replacement boards can be matched exactly.
• Engage a specialist supplier — not a general electronics broker — for obsolete Schroff components to ensure traceability and condition verification.

Condition & Reliability Assurance

Sourcing obsolete industrial boards from unverified channels is a documented cause of premature field failures. DriveKNMS applies a structured 5-step quality process to every discontinued board before it leaves our facility:

1. Visual and Mechanical Inspection: Full examination of PCB surface, connector pins, and solder joints. Boards with corrosion, physical damage, or evidence of prior rework are quarantined.
2. Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the primary failure mode in boards stored beyond their design life. Each board is assessed for capacitor condition; boards with suspect capacitors are either recapped or rejected.
3. Firmware and Revision Verification: Where applicable, board revision markings and any embedded firmware are documented and matched against known-good configurations.
4. Pin and Connector Integrity Check: VMEbus backplane connectors are inspected for bent pins, oxidation, and contact resistance issues that would cause intermittent bus errors in service.
5. Functional Verification: Boards are bench-tested in a compatible subrack environment prior to shipment where test infrastructure permits.

Key Features for System Maintenance

• Drop-in replacement: The 23000-015 installs directly into the original subrack chassis without mechanical modification.
• No re-programming required: Backplane boards carry no user-configurable firmware. Replacement does not require software re-validation or system re-commissioning in most configurations.
• Avoids engineering redesign costs: Retaining the original backplane architecture eliminates the need for I/O remapping, cable harness modification, or control logic rewriting.
• Preserves system certification: In regulated industries, replacing a backplane with an original-specification part maintains existing safety and compliance certifications. A platform migration would require full re-certification.

Frequently Asked Questions

What warranty applies to discontinued parts?
DriveKNMS provides a 90-day warranty on all refurbished boards and a 180-day warranty on verified New Old Stock units. Warranty covers functional failure under normal operating conditions and excludes physical damage caused after delivery.

How do I confirm the board is new or professionally refurbished?
Each unit shipped by DriveKNMS is accompanied by an inspection report documenting its condition grade, the checks performed, and the technician sign-off. New Old Stock units retain original Schroff packaging where available.

Should I purchase more than one unit?
For any subrack system in continuous production service, holding a minimum of one cold spare is standard practice. For critical infrastructure with no acceptable downtime window, two spares per active chassis is the recommended baseline. Given the finite availability of discontinued components, consolidating your spare requirement now is more cost-effective than sourcing under emergency conditions.

Can you source other Schroff VMEbus components?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial components across multiple platforms. Contact us with your full bill of materials for a consolidated sourcing assessment.
