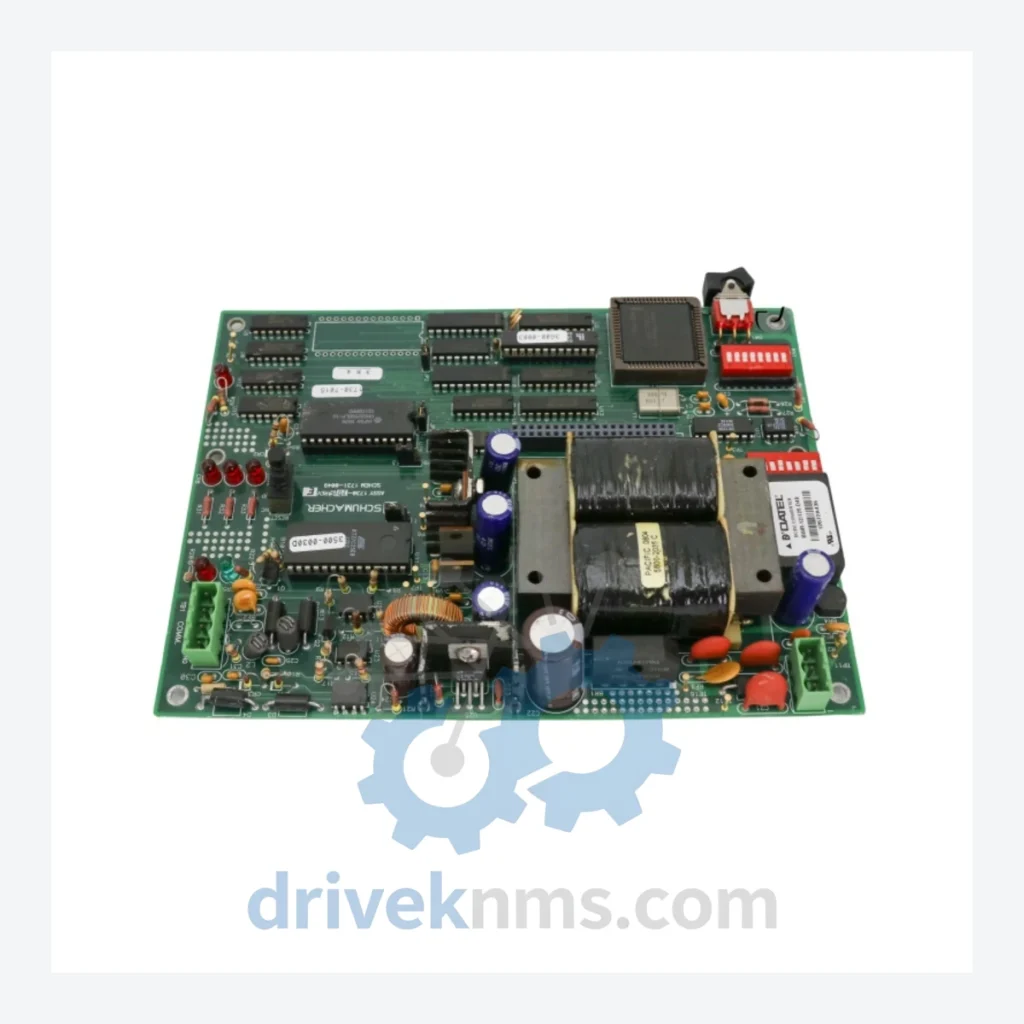

SCHUMACHER 1731-0049 1730-7015 43H4A-2.33-072 853-126733-021 DIA 42.5CM 1K-6Z2-265 Pneumatic System CPU Board

Technical Dossier

Product Details And Specifications

SCHUMACHER Pneumatic System Series: Comprehensive Module Range and Technical Overview

The SCHUMACHER pneumatic system CPU board series — encompassing part numbers 1731-0049, 1730-7015, 43H4A-2.33-072, 853-126733-021, and associated assemblies with mechanical specification DIA 42.5CM / 1K-6Z2-265 — represents a class of industrial control and processing boards deployed in high-reliability pneumatic automation systems. These boards are installed across global heavy industry sectors including petrochemical refineries, chemical processing plants, offshore platforms, and nuclear auxiliary systems where pneumatic actuation control demands deterministic, fault-tolerant processing architectures. The series is characterized by its ruggedized backplane interface, dedicated pneumatic valve sequencing logic, and compatibility with legacy DCS and PLC bus topologies common in facilities commissioned between the 1990s and 2010s.

The Evolution of SCHUMACHER Pneumatic CPU Board Architecture

SCHUMACHER's pneumatic control board lineage evolved through three distinct architectural generations. The first generation (circa early 1990s) used discrete logic with analog signal conditioning for valve position feedback, relying on parallel bus communication and DIN-rail mounted backplanes. The second generation introduced microprocessor-based sequencing with EPROM-stored control programs, enabling configurable valve timing and diagnostic output — this is the generation to which 1731-0049 and 1730-7015 belong. The third generation (late 2000s onward) transitioned to fieldbus-compatible variants with PROFIBUS-DP or HART integration, represented by cross-compatible successors in the 43H4A and 853-series assemblies.

Compatibility between generations is constrained by backplane connector pitch and bus voltage levels. First-to-second generation substitution requires adapter brackets; second-to-third generation substitution requires firmware reconfiguration and, in most cases, a bus coupler module. Facilities running mixed-generation installations must maintain dedicated spare pools for each board revision to avoid unplanned downtime.

SCHUMACHER Pneumatic System Full Catalog & Functionalities (SKU List)

CPU & Controller Boards

• 1731-0049: Main CPU board, pneumatic sequencing controller, 24VDC logic supply
• 1730-7015: Secondary CPU board, redundant processing unit for fail-safe pneumatic control
• 43H4A-2.33-072: Processor assembly, valve timing logic, DIA 42.5CM form factor
• 853-126733-021: Control board assembly, integrated diagnostics, 1K-6Z2-265 revision
• 1731-0050: CPU board variant, extended temperature range, -20°C to +70°C
• 1730-7016: CPU board, enhanced memory variant, 512KB EPROM

Digital Input (DI) Modules

• 1731-0101: 16-channel DI module, 24VDC, valve position feedback input
• 1731-0102: 32-channel DI module, isolated inputs, pneumatic limit switch interface
• 1730-7020: DI expansion board, NAMUR sensor compatible, Ex-rated

Digital Output (DO) / Analog Output (AO) Modules

• 1731-0201: 16-channel DO module, 24VDC, solenoid valve driver, 0.5A per channel
• 1731-0202: 8-channel relay output module, pneumatic actuator control
• 1730-7030: AO module, 4–20mA, positioner signal output, 8-channel
• 43H4A-3.10-015: Analog I/O combined board, 4AI + 4AO, HART-ready

Communication & Bus Adapter Modules

• 853-126733-010: PROFIBUS-DP adapter, pneumatic controller bus interface
• 853-126733-015: RS-485 communication board, Modbus RTU, 19.2kbps
• 1730-7050: Backplane bus coupler, generation-2 to generation-3 bridge module

Power Supply Modules

• 1731-0301: 24VDC power supply board, 5A, integrated fuse protection
• 1730-7060: Redundant PSU module, hot-swap capable, 10A total output

Sourcing Hard-to-Find & Obsolete SCHUMACHER Pneumatic CPU Board Parts

The SCHUMACHER pneumatic CPU board series has entered the mature-to-end-of-life phase of its product lifecycle. OEM production of boards such as 1731-0049, 1730-7015, and 43H4A-2.33-072 has been discontinued, with no direct OEM replacement announced. Facilities dependent on these boards face a binary choice: full system migration to a modern DCS platform, or lifecycle extension through qualified aftermarket spare parts sourcing.

Quality Control for the SCHUMACHER Pneumatic CPU Board Range

SCHUMACHER pneumatic CPU boards present specific test challenges due to their integrated backplane bus logic, EPROM-based firmware, and analog signal conditioning circuits. DriveKNMS applies a multi-stage verification protocol to every unit processed:

• Visual Inspection: PCB trace integrity, capacitor condition, connector pin alignment, and conformal coating assessment under UV light.
• Power-On Self-Test (POST): Board is energized at rated 24VDC; onboard diagnostic LEDs and fault registers are read to confirm processor boot sequence.
• Bus Communication Test: Board is inserted into a reference backplane fixture replicating the target system bus; data exchange with a known-good master controller is verified at rated baud rate.
• I/O Channel Verification: All digital and analog I/O channels are exercised using calibrated signal sources and loads; output accuracy is measured against OEM datasheet tolerances.
• Thermal Soak: Units are operated at 55°C for a minimum of 4 hours to screen for latent component failures.
• Final Functional Test: Pneumatic sequencing logic is validated using a simulated valve feedback loop before packaging and dispatch.

For sourcing inquiries on SCHUMACHER 1731-0049, 1730-7015, 43H4A-2.33-072, 853-126733-021, or any related pneumatic system CPU board:

• Email: [email protected]
• WhatsApp: +86 18359293191
• Web: driveknms.com
