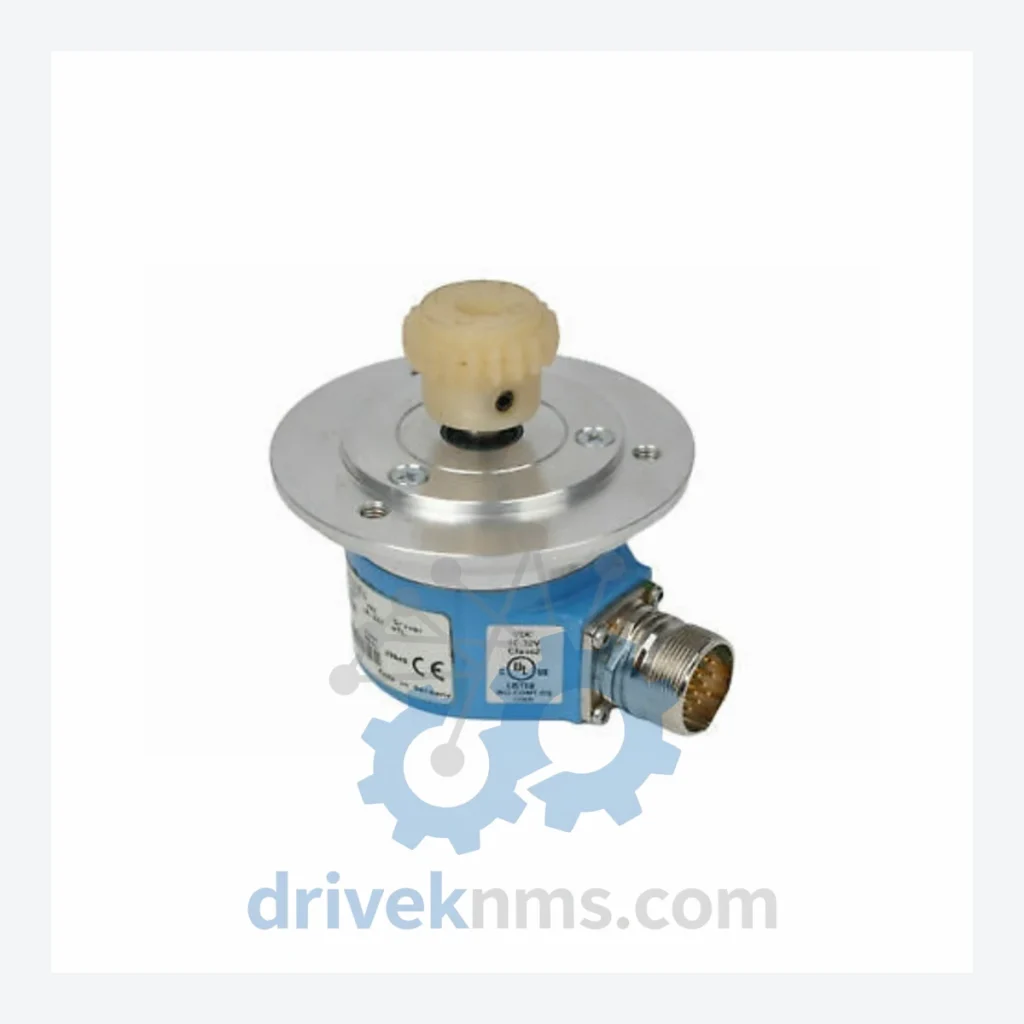

SICK DRS60-E4M01024 Rotary Encoder – Obsolete DRS60 Series Spare Part

Technical Dossier

Product Details And Specifications

SICK DRS60-E4M01024 Rotary Encoder – Obsolete DRS60 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters listed above are based on published SICK documentation. Parameters not confirmed by documentation are intentionally omitted to preserve accuracy and equipment safety.

Solving the Discontinued Hardware Crisis

The DRS60 series was a workhorse encoder deployed extensively throughout the 2000s and 2010s in packaging machinery, material handling conveyors, CNC positioning systems, and process automation lines. Its 1024 PPR resolution and HTL push-pull output made it a reliable fit for the signal input requirements of the PLC generations dominant during that era.

The core problem facing plant engineers today is not the encoder itself — it is the surrounding system. The PLC, the HMI, the motion controller, and the field wiring were all commissioned together as an integrated asset. Replacing the encoder with a modern alternative requires resolving signal compatibility, shaft coupling dimensions, connector pinout differences, and in many cases, PLC input card reconfiguration. None of that work is free, and none of it is fast.

For plant managers operating under capital expenditure constraints, the arithmetic is straightforward: the cost of one spare encoder versus the cost of one unplanned production stoppage. The DRS60-E4M01024 is not a consumable. It is an insurance policy for an asset that has already been paid for.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality verification process to all obsolete and hard-to-find encoder units before dispatch:

• Step 1 – Visual and Mechanical Inspection: Shaft runout, housing integrity, connector condition, and cable jacket assessment. Units with physical damage to the shaft or housing are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Internal capacitors are evaluated for signs of aging, bulging, or electrolyte leakage — a common failure mode in encoders stored beyond five years.
• Step 3 – Firmware and Label Verification: Part number markings, date codes, and where applicable, firmware version identifiers are cross-referenced against SICK's published documentation to confirm authenticity and revision compatibility.
• Step 4 – Pin and Connector Integrity Check: All connector pins are inspected for corrosion, oxidation, and mechanical deformation. Corroded contacts are a leading cause of intermittent signal faults in legacy encoder installations.
• Step 5 – Functional Output Verification: Where test equipment permits, pulse output signal integrity is verified under simulated rotation conditions prior to packaging.

Units that do not pass all five stages are not offered for sale. Condition grade (New / Refurbished-Grade-A) is disclosed on the invoice and packing documentation.

Key Features for System Maintenance

• Drop-in replacement: The DRS60-E4M01024 installs directly into existing DRS60 mounting positions. No mechanical adaptation, no shaft coupling modification.
• No PLC reprogramming required: Signal output characteristics match the original unit. The control system sees no difference — scaling parameters, input card configuration, and motion profiles remain unchanged.
• No engineering retrofit cost: Avoiding a modern encoder substitution eliminates the need for signal converter modules, wiring harness modifications, and the associated commissioning labor.
• Immediate operational continuity: A verified spare on the shelf means MTTR (Mean Time to Repair) is measured in hours, not weeks. Production resumes on the same shift.
• Long-term asset protection: Holding two to three spare units covers the realistic remaining service life of most DRS60-based systems — typically 5 to 10 additional years of operation without capital expenditure on system replacement.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Q: How do I confirm the unit is genuine and not a counterfeit?
A: All units supplied by DriveKNMS include original SICK labeling with traceable date codes. Documentation confirming part number, condition grade, and inspection status is provided with each shipment. We do not supply unmarked or relabeled units.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.
