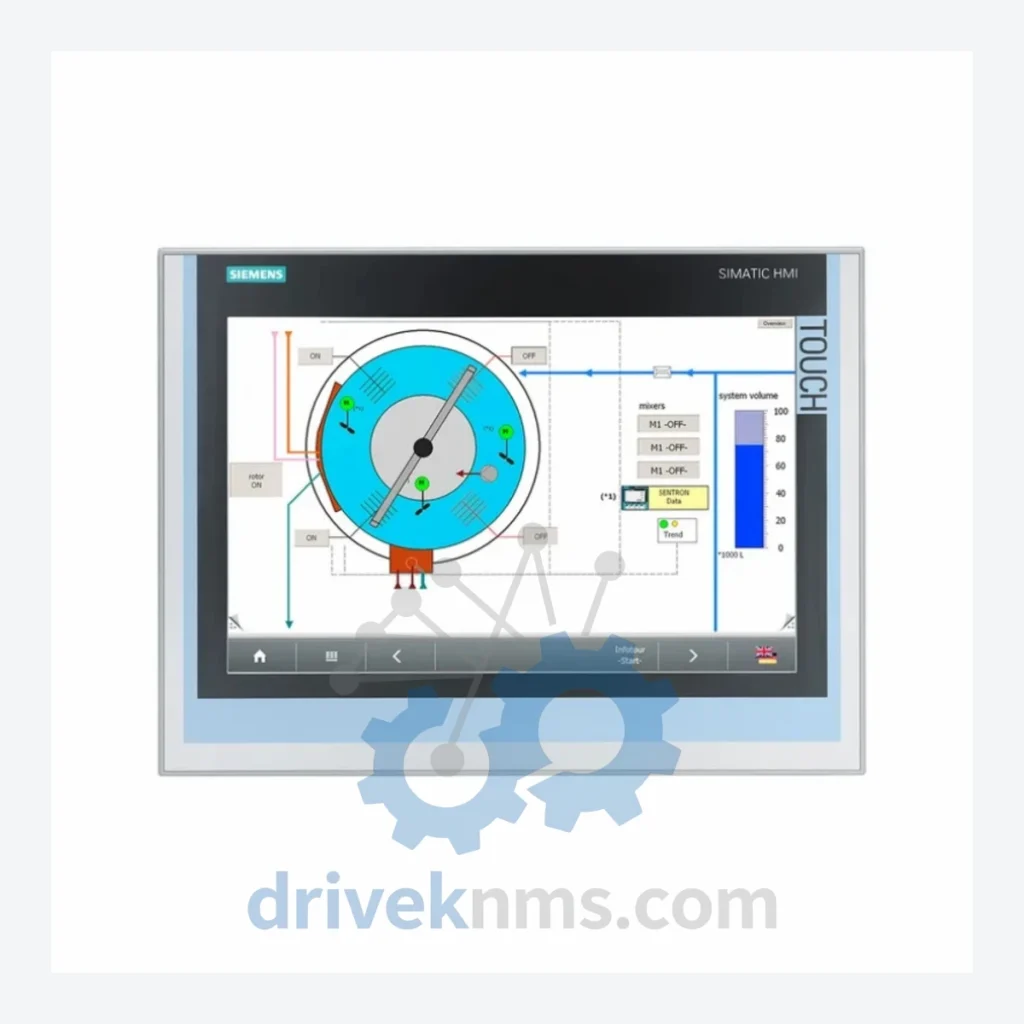

Siemens 6AV7240-7LC07-0HA3 HMI Operator Panel – Obsolete SIMATIC Panel PC Spare Part

Technical Dossier

Product Details And Specifications

Siemens 6AV7240-7LC07-0HA3 HMI Operator Panel – Obsolete SIMATIC Panel PC Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as supply voltage, display resolution, and communication interfaces are confirmed against physical unit inspection prior to shipment. Specifications are not published here to prevent misapplication. Contact us for a full datasheet.

Solving the Discontinued Hardware Crisis

The Siemens SIMATIC Panel PC and Flat Panel product lines served as the operator interface backbone for thousands of industrial installations built between the late 1990s and mid-2010s. Many of these systems remain in active production service today — not because operators are unaware of their age, but because the cost and risk of a full control system upgrade cannot be justified against current capital budgets or production schedules.

Neither outcome is acceptable for a production environment with contractual delivery obligations. The only rational mitigation is to hold verified spare units before the failure occurs.

How to extend your SIMATIC-based automation asset life by 5 to 10 years:

Condition & Reliability Assurance

Discontinued hardware sourced from the secondary market carries inherent risk. DriveKNMS applies a structured 5-step inspection protocol to every unit before it is offered for sale.

• Step 1 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in HMI panels of this generation. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned or rejected.
• Step 2 – Firmware Version Verification: The firmware version is read and documented. Compatibility with the customer's existing WinCC or Step 7 project version is confirmed prior to shipment where project details are provided.
• Step 3 – Pin and Connector Corrosion Inspection: All interface connectors — including MPI/PROFIBUS ports, power terminals, and display connectors — are inspected under magnification for oxidation, pin deformation, and contact contamination.
• Step 4 – Power-On Functional Test: Each unit is powered and tested for display function, backlight integrity, touch or keypad response, and communication port activity.
• Step 5 – Packaging and ESD Protection: Units are packed in anti-static bags with foam cushioning. Shipping method is selected based on destination transit time to minimize thermal and mechanical stress.

Key Features for System Maintenance

• Drop-in replacement: The 6AV7240-7LC07-0HA3 installs directly into the existing panel cutout and connects to existing cabling. No mechanical modification is required.
• No reprogramming required: The replacement unit accepts the existing project file from the failed unit. Provided the firmware version is compatible — which DriveKNMS verifies — operator screens, alarm configurations, and communication settings transfer without modification.
• Avoids engineering reconstruction costs: A forced migration to a current-generation HMI platform requires screen layout redesign, communication driver updates, and operator retraining. A like-for-like replacement eliminates all of these costs and restores production in hours rather than weeks.
• Preserves validated process configurations: In regulated industries — pharmaceutical, food and beverage, chemical — HMI changes trigger revalidation requirements. A drop-in replacement with the same firmware version avoids triggering that process.
