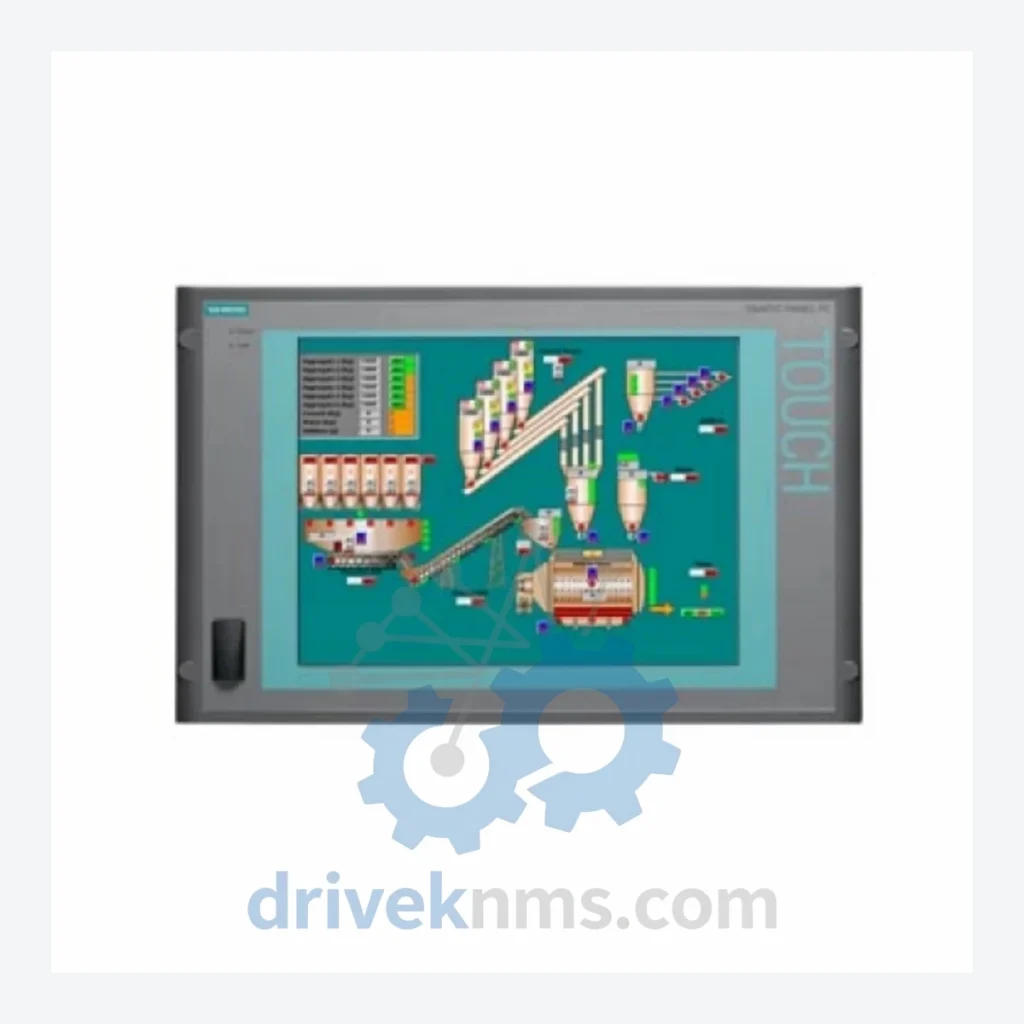

Siemens 6BK1200-0JD00-0AA0 Touch Screen Panel – Obsolete SIMATIC HMI Spare Part

Technical Dossier

Product Details And Specifications

Siemens 6BK1200-0JD00-0AA0 Touch Screen Panel – Obsolete SIMATIC HMI Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters for this discontinued component are not published here to prevent specification errors. Please contact us directly for verified datasheet documentation.

Solving the Discontinued Hardware Crisis

The SIMATIC HMI platform represented a generation of operator interface technology that was deeply integrated into process control architectures across automotive, chemical, food processing, and utilities sectors. The 6BK1200-0JD00-0AA0 panel was not a peripheral accessory — it was the primary operator interface through which technicians monitored alarms, adjusted setpoints, and executed manual overrides. In many installations, this panel communicates directly with S7-series PLCs via MPI or PROFIBUS, and its replacement with a non-identical unit requires protocol reconfiguration, screen layout rebuilding, and in some cases, PLC program modification.

How to extend your SIMATIC HMI system life by 5 to 10 years through strategic spare part management:

These measures do not require capital investment. They require planning. For facilities that have already invested in SIMATIC infrastructure, this approach protects that investment and defers a multi-million dollar migration decision until it is made on the plant's terms, not forced by a component failure.

Condition & Reliability Assurance

Sourcing a discontinued panel from the secondary market carries legitimate risk. DriveKNMS applies a structured 5-step inspection protocol to every unit before it is offered for sale.

1. Visual and mechanical inspection: Full examination of the housing, connector pins, and display surface. Units with cracked bezels, bent pins, or screen delamination are rejected at this stage.
2. Electrolytic capacitor assessment: Aged capacitors are the primary failure mode in panels of this generation. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Units showing capacitor degradation are either reconditioned by qualified technicians or removed from inventory.
3. Firmware version verification: The firmware revision is read and documented. This information is provided to the buyer to confirm compatibility with their installed PLC and HMI configuration before dispatch review.
4. Connector and pin corrosion check: All interface connectors are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned to IPC standards or the unit is rejected.
5. Functional power-on test: Where test fixtures are available for this model, units are powered and display function is verified. Test results are documented and accompany the shipment.

Key Features for System Maintenance

• Drop-in replacement: The 6BK1200-0JD00-0AA0 installs directly into the existing panel cutout and connects to existing cabling. No mechanical modification is required.
• No reprogramming required: When the firmware version is matched, the replacement panel loads the existing project from the connected PLC or memory card without requiring HMI software intervention.
• Avoids engineering reconstruction costs: A direct spare eliminates the need to engage a systems integrator, rebuild screen layouts, or revalidate the HMI application — costs that routinely exceed the value of the hardware itself.
• Preserves validated process configurations: For regulated industries, replacing a like-for-like component avoids triggering a change control process that would be required for a platform migration.
