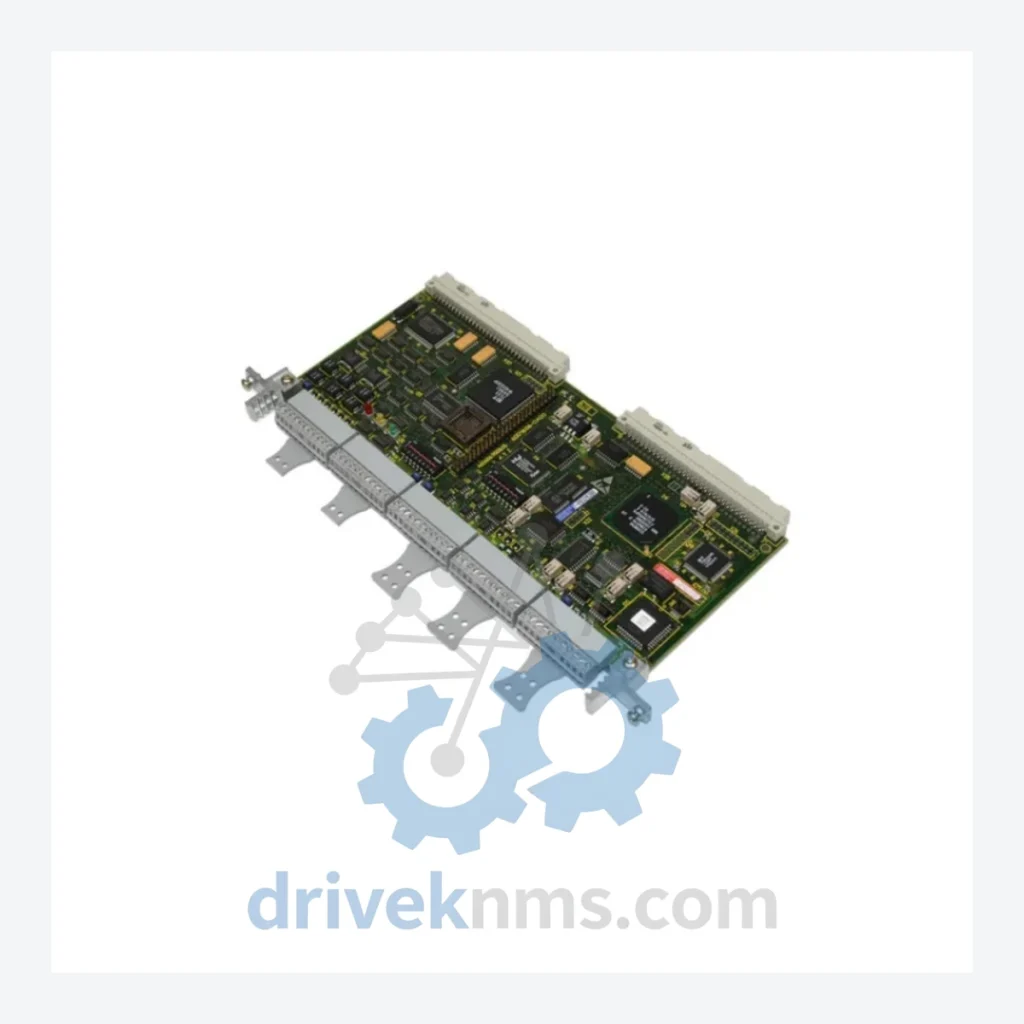

Siemens SIMADYN D T400 Modules: 6DD1606-0AD1 Technology Board

Technical Dossier

Product Details And Specifications

Siemens SIMADYN D Series Technical Notes

The Siemens SIMADYN D system is a modular, rack-based digital control platform developed by Siemens AG for high-demand industrial drive and process control applications. It has been deployed extensively across global heavy industry sectors including petrochemical refineries, nuclear power generation auxiliaries, steel rolling mills, cement plants, and offshore oil & gas platforms. The T400 Technology Board — model 6DD1606-0AD1 — is a programmable technological module within the SIMADYN D architecture, designed to execute closed-loop control algorithms, cam controllers, and position control tasks independently of the main CPU rack. Its onboard DSP processing capability made it a preferred solution for high-speed coordinated drive control in multi-axis applications.

The Evolution of SIMADYN D Architecture

SIMADYN D was introduced by Siemens in the mid-1980s as a successor to the analog SIMADYN C platform, representing a transition to fully digital, software-configurable control. The system is built around a VMEbus-compatible backplane, allowing modular expansion of CPU, I/O, communication, and technology boards within a single rack. Early configurations relied on the CS31 bus for I/O expansion; later revisions integrated PROFIBUS-DP adapters to align with the emerging fieldbus standard in European process industries.

The T400 board (6DD1606-0AD1) was introduced as a standalone technological coprocessor, offloading complex control tasks — such as electronic cam profiles and multi-axis synchronization — from the main CS7 or PM5 CPU modules. This architectural separation improved determinism and reduced scan-cycle jitter in time-critical applications. As Siemens transitioned its drive control portfolio toward the SIMOVERT MASTERDRIVES and later SINAMICS platforms, SIMADYN D entered a maintenance-only lifecycle phase. Compatibility between SIMADYN D and SINAMICS S120 via CU320 control units has been documented for migration projects, but direct hardware interchangeability does not exist. Sites running SIMADYN D today require original spare parts or certified refurbished equivalents to maintain uptime.

SIMADYN D Full Catalog & Functionalities (SKU List)

Technology & CPU Modules

• 6DD1606-0AD1: T400 Technology Board — DSP-based cam controller and closed-loop position control coprocessor.
• 6DD1606-0AD0: T400 Technology Board — earlier hardware revision, functionally equivalent with firmware differences.
• 6DD1607-0AA0: T500 Technology Board — enhanced successor to T400 with extended memory and faster cycle time.
• 6DD1600-0AK0: CS7 Central Processing Unit — primary CPU module for SIMADYN D rack, handles main control program execution.
• 6DD1600-0BA0: PM5 Processor Module — high-performance CPU variant for complex multi-loop control applications.

Digital I/O Modules

• 6DD1681-0AE0: DI16 Digital Input Module — 16-channel 24 VDC digital input, optically isolated.
• 6DD1682-0AE0: DO16 Digital Output Module — 16-channel 24 VDC digital output, short-circuit protected.
• 6DD1681-0AF0: DI32 Digital Input Module — 32-channel high-density digital input expansion.
• 6DD1682-0AF0: DO32 Digital Output Module — 32-channel high-density digital output expansion.

Analog I/O Modules

• 6DD1661-0AA0: AI8 Analog Input Module — 8-channel ±10 V / 4–20 mA, 12-bit resolution.
• 6DD1662-0AA0: AO8 Analog Output Module — 8-channel ±10 V / 4–20 mA analog output.
• 6DD1661-0AB0: AI16 Analog Input Module — 16-channel high-density analog input for process variable acquisition.

Communication & Interface Modules

• 6DD1642-0BA0: PROFIBUS-DP Adapter — connects SIMADYN D rack to PROFIBUS-DP fieldbus network at up to 12 Mbit/s.
• 6DD1642-0AA0: CS31 Bus Coupler — legacy I/O bus interface for distributed I/O expansion via CS31 protocol.
• 6DD1643-0AB0: Ethernet Communication Module — TCP/IP interface for supervisory SCADA integration.

Power Supply Modules

• 6DD1680-0AE0: PS5 Power Supply Module — 24 VDC rack power supply, 5 A output, redundancy-capable.
• 6DD1680-0AF0: PS10 Power Supply Module — 24 VDC, 10 A output for high-load rack configurations.

Quality Control for the SIMADYN D Range

SIMADYN D modules present specific testing challenges due to their VMEbus backplane architecture and the tight coupling between hardware and firmware versions. DriveKNMS applies a structured inspection and functional test protocol to all SIMADYN D units prior to dispatch:

• Visual inspection for backplane connector pin damage, capacitor condition, and PCB corrosion.
• Firmware version identification and documentation — critical for T400 boards where firmware revision determines supported function block library versions.
• Powered functional test using a SIMADYN D test rack with matched CPU and power supply modules, verifying module initialization, bus communication, and I/O channel integrity.
• For T400 (6DD1606-0AD1) specifically: DSP boot sequence verification, EEPROM parameter retention test, and encoder interface channel continuity check.
• Final burn-in test under load conditions for a minimum of 24 hours before packaging.
