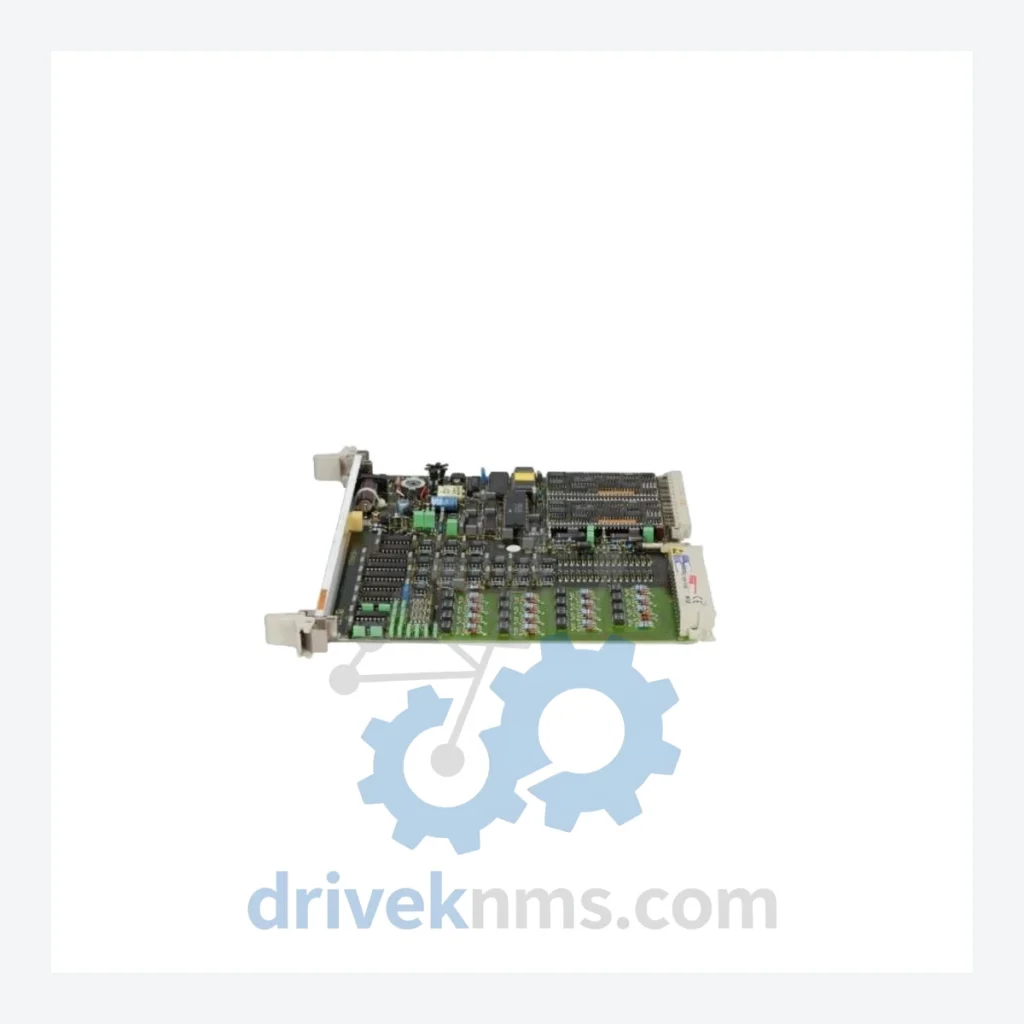

Siemens 6DP1511-8AA Communication Processor – Obsolete SINEC H1 Spare Part

Technical Dossier

Product Details And Specifications

Siemens 6DP1511-8AA Communication Processor – Obsolete SINEC H1 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. No fabricated specifications are presented. Consult original Siemens documentation (e.g., SINEC H1 manual 6GK1 971-5DA10-0AA0) for full electrical ratings.

Solving the Discontinued Hardware Crisis

The SINEC H1 network was Siemens' industrial Ethernet backbone throughout the 1990s and into the early 2000s, deeply embedded in process industries including chemical plants, automotive body shops, steel mills, and power generation facilities. The 6DP1511-8AA served as the physical and logical bridge between the S5 PLC backplane and the plant-wide SINEC H1 Ethernet ring — handling token-passing, ISO transport sessions, and deterministic data exchange with SCADA hosts and operator panels.

There is no direct plug-in replacement from Siemens' current portfolio. Modern CP modules operate on PROFINET and carry entirely different firmware architectures. Substituting a current-generation CP into an S5 rack is not a configuration change — it is a system redesign. For plant managers operating equipment with 15 to 25 years of remaining mechanical service life, the rational decision is not migration. It is asset protection through verified spare part inventory.

Long-tail search context for plant engineers: facilities running Siemens S5-115U, S5-135U, S5-155U, or early S7-400 systems with SINEC H1 backbones will recognize this part number immediately. If your site still operates WinCC v5.x or earlier SCADA configurations communicating over SINEC H1, this CP board is a non-negotiable maintenance item.

Condition & Reliability Assurance

DriveKNMS applies a 5-stage quality assurance protocol to all obsolete industrial components before dispatch:

• Stage 1 – Visual and Mechanical Inspection: Board surface examined for physical damage, trace burns, cracked solder joints, and connector pin integrity.
• Stage 2 – Electrolytic Capacitor Assessment: All electrolytic capacitors checked for bulging, leakage, and ESR deviation. Aged capacitors on boards from long-term storage are flagged and replaced where necessary.
• Stage 3 – Firmware Version Verification: Where accessible, onboard firmware or EPROM revision is documented and cross-referenced against known compatible versions for the target system configuration.
• Stage 4 – Pin and Connector Corrosion Screening: Edge connectors and backplane pins inspected under magnification for oxidation. Contact surfaces cleaned to IPC-A-610 workmanship standards where applicable.
• Stage 5 – Functional Power-On Test: Where test fixtures are available for the specific module type, boards are powered and basic communication initialization is verified prior to packaging.

Each unit is individually packaged in anti-static shielding with desiccant, and ships with a condition report documenting the QA stages completed.

Key Features for System Maintenance

• Drop-in replacement: The 6DP1511-8AA installs directly into the original S5 subrack slot with no mechanical modification required.
• No reprogramming required: The replacement module operates with existing PLC program blocks and SINEC H1 network configuration. There is no need to modify Step 5 code or reconfigure network station addresses, provided the replacement unit carries a compatible firmware revision.
• Avoids engineering reconstruction costs: Retaining the existing S5 architecture eliminates the need for control system re-engineering, field instrument re-tagging, and SCADA database rebuilds — costs that routinely exceed the capital value of the production equipment itself.
• Preserves validated process configurations: In regulated industries (pharmaceutical, food & beverage, chemical), replacing a PLC platform triggers revalidation requirements. Maintaining the original hardware avoids this compliance burden entirely.

Should I buy more than one unit?
For any S5 installation where the 6DP1511-8AA is a single point of failure in the network architecture, holding a minimum of one verified spare on-site is a standard risk management practice. For facilities with multiple SINEC H1 nodes, a proportional reserve is advisable. Market availability of this part number is not guaranteed to persist — procurement windows for discontinued Siemens S5 components are narrowing each year.

Can you source other discontinued Siemens S5 or SINEC components?
Yes. DriveKNMS specializes in hard-to-find and obsolete industrial automation components across multiple OEM brands. Contact us with your full part number list for availability assessment.
