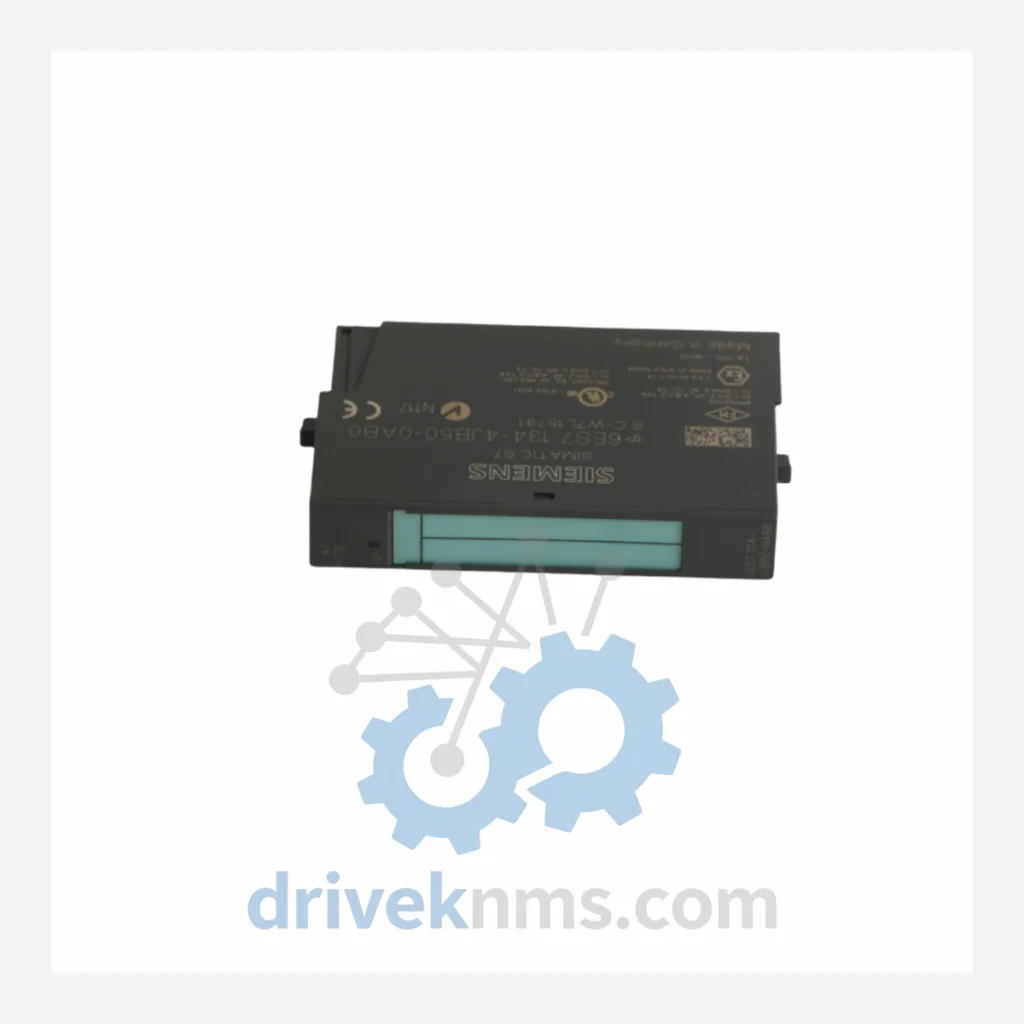

Siemens 6ES7134-4JB50-0AB0 Analog Input Module – Obsolete ET 200S Spare Part

Technical Dossier

Product Details And Specifications

Siemens 6ES7134-4JB50-0AB0 Analog Input Module – Obsolete ET 200S Spare Part

DriveKNMS maintains sourced inventory of hard-to-find Siemens SIMATIC modules specifically to serve facilities that cannot justify a full system overhaul. If you have located this page, your window to act is narrow.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Siemens ET 200S platform was widely deployed across automotive assembly lines, chemical processing plants, food and beverage facilities, and water treatment infrastructure throughout the 1990s and 2000s. The 6ES7134-4JB50-0AB0 served as the analog signal acquisition point for process variables — temperature transmitters, flow meters, pressure sensors — feeding data directly into SIMATIC S7-300 and S7-400 PLCs via the ET 200S distributed I/O architecture.

Siemens has formally discontinued this module. Replacement within the current SIMATIC ET 200SP ecosystem requires not only new hardware but a redesign of the I/O station mechanical footprint, updated GSD files, revised hardware configuration in TIA Portal, and in many cases, modifications to existing field wiring. For a facility running 20 to 50 such stations, this is not a maintenance task — it is a capital project.

The practical alternative, adopted by maintenance engineers at facilities across Europe and Asia, is strategic spare part procurement. A single verified 6ES7134-4JB50-0AB0 unit, sourced and held in reserve, eliminates the risk of an unplanned outage triggering a forced migration. The cost differential between a spare module and an emergency system upgrade is not marginal — it is measured in orders of magnitude.

How to extend your ET 200S system life by 5 to 10 years without a capital project:

This approach has been validated in facilities where ET 200S infrastructure, originally commissioned in 2003–2008, continues to operate reliably in 2026. The investment in spare parts is a fraction of the cost of a forced migration executed under production pressure.

Condition & Reliability Assurance

Discontinued modules sourced from secondary markets carry inherent risk. DriveKNMS applies a structured 5-step inspection protocol before any unit is offered for sale:

1. Visual and mechanical inspection: Housing integrity, connector pin condition, and label verification against the original Siemens part number.
2. Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in modules of this generation. Each unit is inspected for capacitor bulging, leakage, and ESR deviation.
3. Firmware version verification: The installed firmware revision is documented and disclosed. Buyers receive this information prior to shipment to confirm compatibility with their existing STEP 7 or TIA Portal hardware configuration.
4. Pin and connector corrosion check: Backplane connector pins are inspected under magnification for oxidation, corrosion, and mechanical deformation. Affected pins are treated or the unit is rejected.
5. Functional power-on test: Where test infrastructure permits, modules are powered and basic I/O response is verified before dispatch.

Units that do not pass all five stages are not offered for sale. Condition grade (New, Refurbished-Grade-A, or Tested-Used) is disclosed on every order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The 6ES7134-4JB50-0AB0 installs directly into an existing ET 200S terminal module (TM-E) without mechanical modification.
• No reprogramming required: The module retains its original hardware identity on the PROFIBUS or PROFINET network. The PLC program does not require modification.
• No engineering re-commissioning: Existing STEP 7 or TIA Portal hardware configurations remain valid. There is no requirement to engage a systems integrator for a replacement of like-for-like hardware.
• Avoids forced migration costs: A verified spare eliminates the scenario where a single module failure triggers a capital-budget system upgrade that was not planned, not budgeted, and not scheduled.
• Preserves validated process configurations: In regulated industries — pharmaceutical, food processing, water treatment — replacing a module with a non-identical successor requires re-validation. A like-for-like replacement does not.

How do I confirm the unit is genuine Siemens and not a counterfeit?
All units are inspected against Siemens original labeling standards, including holographic markings where present. Firmware version and hardware revision are documented. We do not source from unverified brokers. Provenance documentation is available on request for critical applications.

Should I buy more than one unit?
For any ET 200S station where this module is installed on a critical process loop, holding a minimum of one spare on-site is the standard recommendation. For facilities with multiple stations using this module, a quantity of two to three units provides meaningful protection against back-to-back failures during a sourcing gap — which, for discontinued parts, can extend to 6–18 months.

Can this module be used with TIA Portal?
Yes. The ET 200S platform is supported in TIA Portal via legacy hardware catalogs. The 6ES7134-4JB50-0AB0 can be configured in both STEP 7 Classic and TIA Portal environments, subject to the installed software version supporting the ET 200S hardware family.
