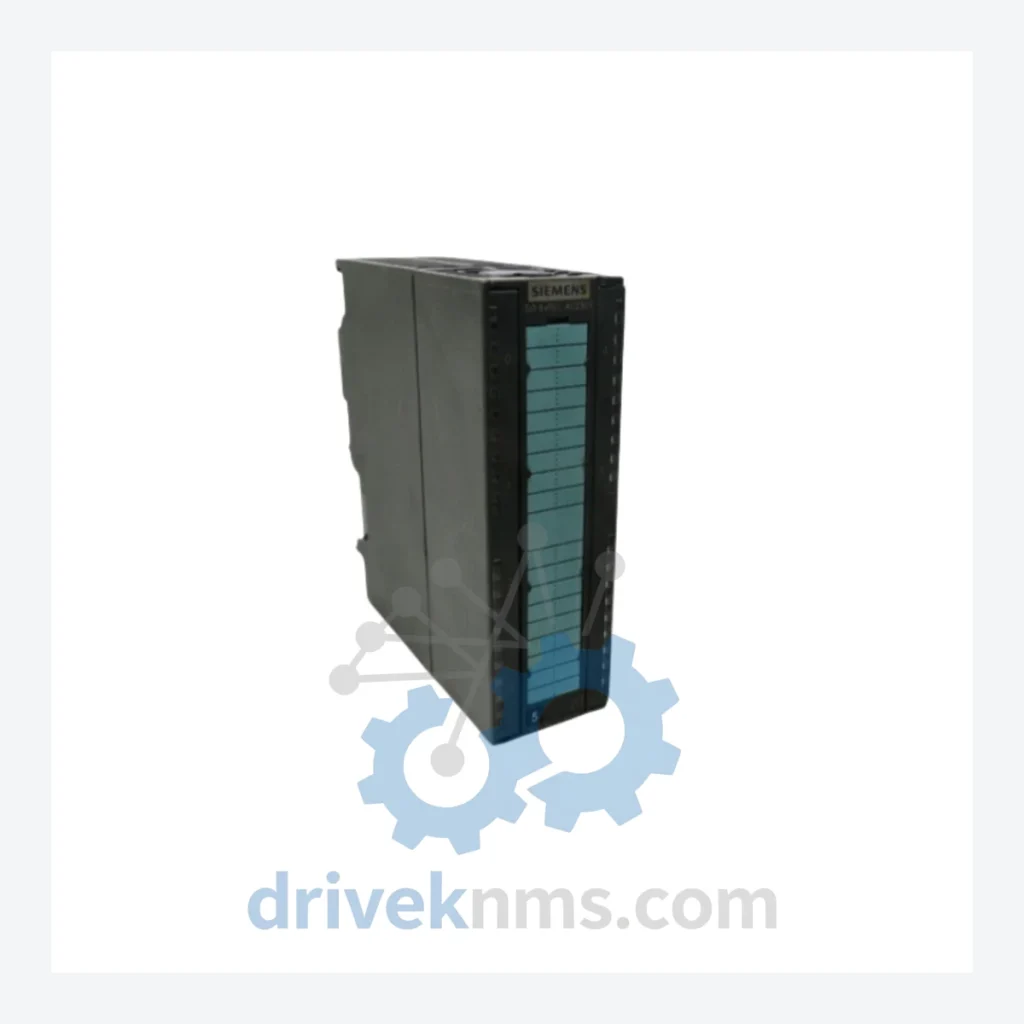

Siemens S7-300 SM 322 Modules: 6ES7322-1HF10-0AA0

Technical Dossier

Product Details And Specifications

Siemens S7-300 SM 322 Series Technical Notes

The Siemens SIMATIC S7-300 SM 322 Signal Module family represents one of the most widely deployed digital output module platforms in global heavy industry. Installed across petrochemical complexes, nuclear power auxiliary systems, offshore oil & gas platforms, and continuous-process refineries, the SM 322 series provides the discrete output backbone for S7-300 CPU-based control architectures. Its modular backplane design, standardized 20-pin front connector interface, and compatibility with the S7-300 rack system (up to 8 signal modules per rack segment) have made it the reference standard for DCS migration projects and legacy PLC maintenance programs spanning three decades.

The Evolution of SM 322 Architecture

The SM 322 series was introduced alongside the original SIMATIC S7-300 platform in the early 1990s as a direct successor to the S5-100U and S5-115U I/O modules. The initial release covered 24VDC transistor outputs (sourcing and sinking) and relay contact outputs for AC load switching. By the mid-1990s, Siemens expanded the range to include high-density 32-channel and 16-channel AC output variants, addressing the demand from process industries requiring large discrete output counts within a single rack slot.

The 6ES7322-1HF10-0AA0 specifically addresses 120/230VAC load switching at 8 channels — a configuration critical for motor starter coil control, solenoid valve actuation, and contactor energization in AC-dominant plant environments. Its optocoupler isolation architecture provides 4kV galvanic separation between the S7-300 backplane bus and field wiring, a specification that remains relevant for installations in electrically noisy industrial environments.

With the introduction of the S7-1500 platform and TIA Portal engineering framework, Siemens positioned the S7-300 series into a long-term maintenance phase. As of 2023, the S7-300 hardware line is in end-of-sale status, with Siemens committing to spare parts availability through 2028 and repair services through 2033. This lifecycle position makes third-party sourcing of SM 322 modules — including the 6ES7322-1HF10-0AA0 — a critical operational requirement for plants that cannot justify a full migration project.

SM 322 Full Catalog & Functionalities (SKU List)

Digital Output Modules — 24VDC Transistor (Sourcing)

• 6ES7322-1BF01-0AA0: 8DO x 24VDC/0.5A, transistor sourcing, standard density
• 6ES7322-1BH01-0AA0: 16DO x 24VDC/0.5A, transistor sourcing, high density
• 6ES7322-1BL00-0AA0: 32DO x 24VDC/0.5A, transistor sourcing, ultra-high density
• 6ES7322-1CF00-0AA0: 8DO x 24VDC/2A, transistor sourcing, high-current variant
• 6ES7322-1FF01-0AA0: 8DO x 24–120VDC/1A, transistor sourcing, wide voltage range

Digital Output Modules — 120/230VAC Triac & Relay

• 6ES7322-1HF10-0AA0: 8DO x 120/230VAC/1A, triac (solid-state) output, isolated channels
• 6ES7322-1HH01-0AA0: 16DO x 120/230VAC/0.5A, triac output, high density AC switching
• 6ES7322-5FF00-0AB0: 8DO x 24–120VDC or 48–230VAC, relay contact, universal voltage
• 6ES7322-5GH00-0AB0: 16DO x 24VDC/230VAC, relay contact, high-density relay output
• 6ES7322-5SD00-0AB0: 8DO x 24VDC/230VAC/5A, relay contact, high-current relay

Digital Output Modules — Fail-Safe (F-Series)

• 6ES7326-2BF41-0AB0: 8DO x 24VDC/2A, fail-safe digital output, SIL2/Cat.4 rated
• 6ES7326-2BF10-0AB0: 8DO x 24VDC/2A, fail-safe digital output, earlier F-DO generation

Digital Input Modules — SM 321 (Complementary Range)

• 6ES7321-1BH02-0AA0: 16DI x 24VDC, standard digital input, sink/source compatible
• 6ES7321-1EL00-0AA0: 32DI x 24VDC, high-density digital input module
• 6ES7321-1FF01-0AA0: 8DI x 120/230VAC, AC digital input, field voltage sensing
• 6ES7321-1FH00-0AA0: 16DI x 120/230VAC, high-density AC digital input

Sourcing Hard-to-Find & Obsolete SM 322 Parts

All units are cross-referenced against Siemens firmware revision records and hardware revision markings (e.g., HW: 01, FW: V1.0) to ensure compatibility with the target S7-300 rack configuration. Customers operating plants with long maintenance cycles — refineries, power generation facilities, water treatment infrastructure — can request long-term supply agreements (LTA) for SM 322 modules to guarantee parts availability beyond Siemens' official support window.

Quality Control for the SM 322 Range

Each SM 322 module processed by DriveKNMS undergoes a structured inspection and functional test protocol specific to the S7-300 backplane bus architecture:

• Backplane Bus Communication Test: Module is seated in a live S7-300 rack and polled via STEP 7 or TIA Portal hardware configuration to confirm correct module identification (order number, hardware revision, firmware version).
• Output Channel Functional Test: Each discrete output channel is individually energized and verified against a calibrated load bank. For AC output modules (including 6ES7322-1HF10-0AA0), load switching is tested at both 120VAC and 230VAC nominal voltages.
• Isolation Integrity Check: Galvanic isolation between backplane logic side and field output side is verified using a 500VDC insulation resistance tester. Minimum acceptable reading: 10MΩ.
• Thermal Cycling Inspection: Modules are inspected post-thermal cycle for solder joint integrity on output driver ICs and optocoupler arrays — the primary failure points in aged SM 322 units.
• Front Connector Inspection: 20-pin front connector contact condition is verified and cleaned. Replacement connectors (6ES7392-1AJ00-0AA0) are fitted where contact wear is detected.
