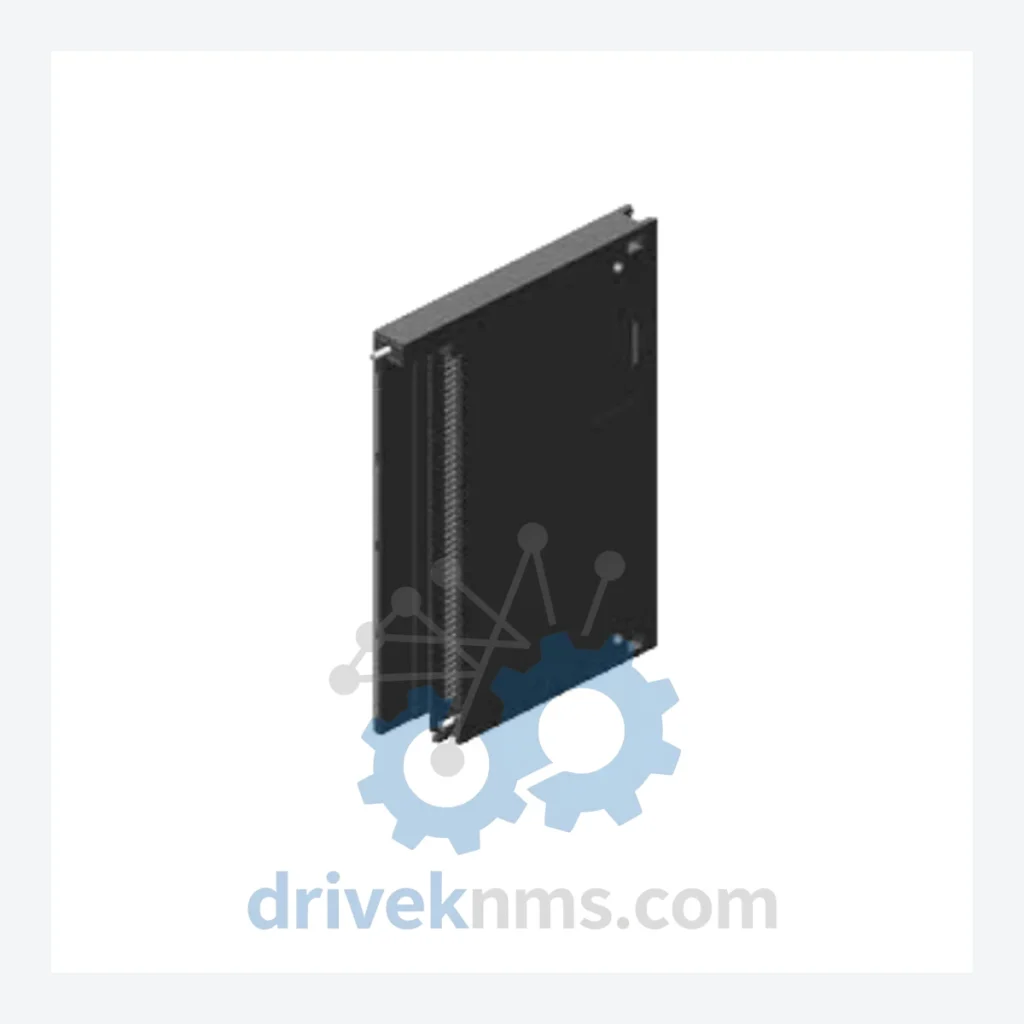

Model: 6ES7421-1FH20-0AA0
Product Overview
Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.
Datasheet Preview
Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.
Commercial Path
Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.
Technical Dossier
The Siemens SIMATIC S7-400 is a high-performance programmable logic controller platform engineered for process automation in heavy industrial environments. Deployed across chemical plants, nuclear power stations, oil refineries, steel mills, and large-scale water treatment facilities, the S7-400 platform has maintained a dominant installed base globally since its introduction in the mid-1990s. The SM 421 sub-family constitutes the digital input (DI) signal module tier of the S7-400 rack architecture, providing the primary interface between field-level sensors, switches, and proximity detectors and the central processing units. The 6ES7421-1FH20-0AA0 is a 32-channel, 24 VDC digital input module within this family, designed for high-density I/O configurations in demanding process environments.
The SIMATIC S7-400 platform was launched by Siemens in 1994 as the successor to the S5-115U/H and S5-135U/155U series, addressing the need for modular, fault-tolerant automation in continuous process industries. The SM 421 digital input module family evolved through several hardware revisions (identified by the trailing version code, e.g., -0AA0, -0AB0) to improve noise immunity, diagnostic depth, and compatibility with PROFIBUS DP and later PROFINET architectures via the IM 460/461 interface modules.
Early SM 421 variants operated exclusively at 24 VDC or 120/230 VAC input levels with basic status LEDs. Later revisions introduced per-channel diagnostics, configurable input delays (0.1 ms to 20 ms), and compatibility with the S7-400H redundant CPU configurations (CPU 412H, CPU 414H, CPU 417H). The platform reached end-of-sale for several core CPU variants around 2020, with Siemens recommending migration to the SIMATIC S7-1500 and ET 200MP distributed I/O systems. However, the S7-400 installed base in brownfield process plants ensures continued demand for SM 421 spare parts well into the 2030s.
The following SKUs represent verified, commonly stocked members of the Siemens SIMATIC S7-400 SM 421 digital input module family. Each entry is classified by channel count, input voltage, and functional variant.
6ES7421-1FH20-0AA0: 32-channel 24 VDC DI, 4-wire, no isolation groups, standard diagnostics.
6ES7421-1BL01-0AA0: 32-channel 24 VDC DI, sink/source, configurable input delay, diagnostic interrupt capable.
6ES7421-1EL00-0AA0: 16-channel 24 VDC DI, isolated groups, suitable for high-noise environments.
6ES7421-7BH01-0AB0: 16-channel 24 VDC DI, NAMUR sensor compatible, intrinsically safe interface.
6ES7421-1FF01-0AA0: 8-channel 120/230 VAC DI, isolated, for AC field devices and limit switches.
6ES7421-1FH00-0AA0: 32-channel 24 VDC DI, predecessor to -1FH20, no diagnostic interrupt.
6ES7421-1BL00-0AA0: 32-channel 24 VDC DI, earlier hardware revision of -1BL01, reduced diagnostic features.
6ES7421-1EL01-0AA0: 16-channel 24 VDC DI, updated isolation design, improved EMC rating.
6ES7421-7DH00-0AB0: 16-channel 48 VDC DI, isolated, for legacy field wiring at elevated voltage levels.
6ES7421-1FH20-0AB0: 32-channel 24 VDC DI, hardware revision B, enhanced surge protection.
6ES7421-1BH01-0AA0: 16-channel 24 VDC DI, high-speed input, 0.1 ms minimum input delay for fast-switching applications.
6ES7421-1EH00-0AA0: 16-channel 24 VDC DI, group isolation, compatible with S7-400H redundant systems.
6ES7421-1FF00-0AA0: 8-channel 120/230 VAC DI, earlier revision, standard status diagnostics only.
6ES7421-7BH00-0AB0: 16-channel 24 VDC DI, NAMUR, earlier revision, Zener barrier compatible.
6ES7421-1BL01-0AB0: 32-channel 24 VDC DI, hardware revision B of -1BL01, updated firmware baseline.
6ES7421-1EL00-0AB0: 16-channel 24 VDC DI, isolated, hardware revision B with improved diagnostic reporting.
For operators committed to maintaining S7-400 systems beyond the Siemens standard support window, DriveKNMS provides lifecycle extension services including cross-reference validation, firmware revision identification, and compatibility verification against specific CPU and rack configurations. All modules are catalogued by hardware revision code to prevent mismatched replacements in redundant or safety-rated installations.
Each SM 421 module processed by DriveKNMS undergoes a structured test protocol adapted to the S7-400 backplane bus architecture. Functional verification is performed using a live S7-400 rack with a compatible CPU (CPU 414-2 or CPU 416-2), confirming correct STEP 7 or TIA Portal hardware recognition, channel-level input status reporting, and diagnostic interrupt generation where applicable. Input voltage thresholds are verified at both the 0-signal level (≤5 VDC) and 1-signal level (≥15 VDC) per IEC 61131-2 Type 1 input specifications. Isolation resistance between input groups and backplane is measured to confirm dielectric integrity. Modules with per-channel diagnostic capability are tested for accurate fault reporting under simulated wire-break and short-circuit conditions. All units are logged with their hardware revision, firmware version where readable, and test date prior to dispatch.
