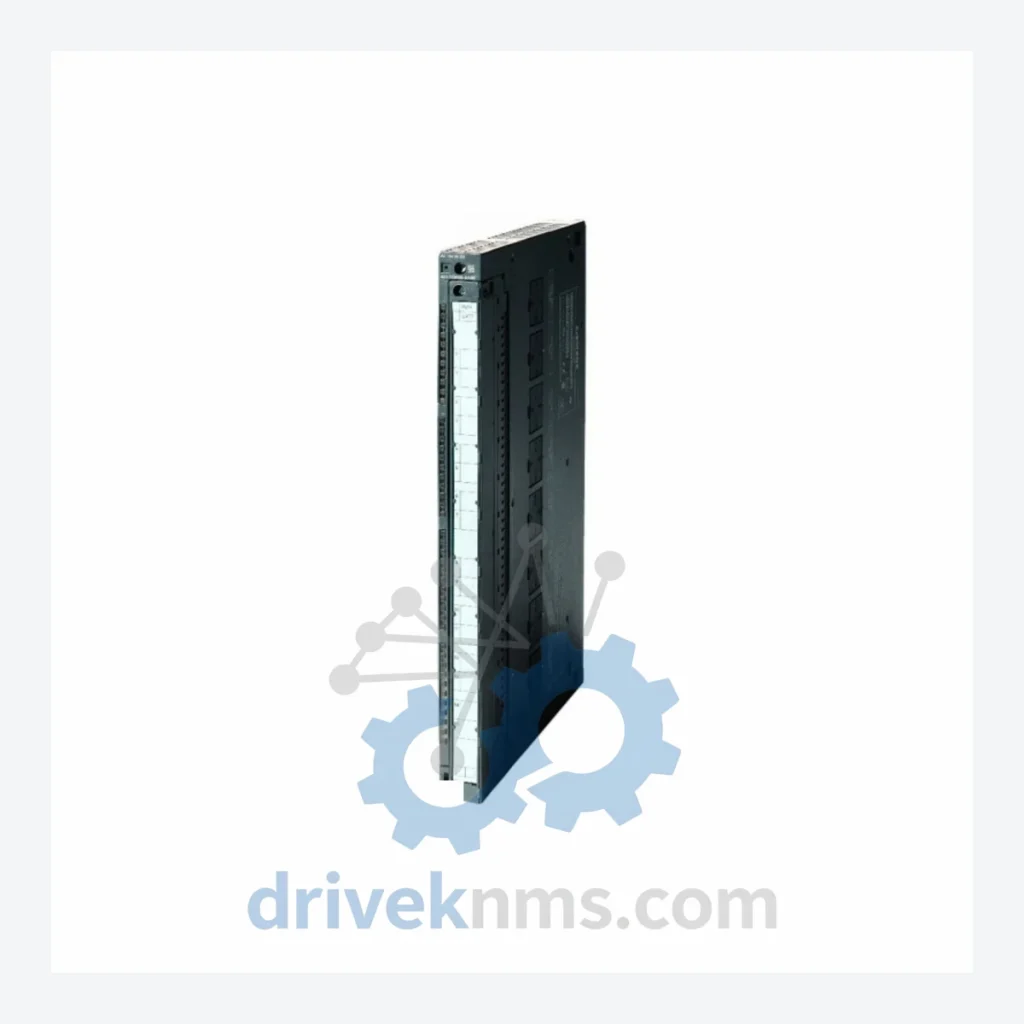

Siemens S7-400 SM 431 Analog Input Modules: 6ES7431-7KF00-0AB0

Technical Dossier

Product Details And Specifications

Siemens S7-400 SM 431 Series Technical Notes

The Siemens SIMATIC S7-400 is a high-performance programmable logic controller platform deployed across the most demanding segments of global heavy industry, including petrochemical refineries, nuclear power generation facilities, offshore oil and gas platforms, steel mills, and large-scale water treatment infrastructure. The SM 431 sub-family within the S7-400 ecosystem constitutes the primary analog signal acquisition layer, converting real-world process variables — temperature, pressure, flow, and current — into digital values processed by the CPU. The 6ES7431-7KF00-0AB0 is a representative module in this family, offering 8 analog input channels with configurable measurement ranges and 13-bit resolution, designed for continuous process monitoring in environments where signal integrity and deterministic scan cycles are non-negotiable.

The S7-400 platform has been installed in tens of thousands of facilities worldwide since its introduction in the mid-1990s. Its modular backplane architecture, redundancy support, and compatibility with PROFIBUS DP and Industrial Ethernet make it a reference standard for distributed control system (DCS) integration in process industries. Many installations remain in active production service well beyond the original design lifecycle, creating sustained global demand for certified spare modules.

The Evolution of S7-400 SM 431 Architecture

The SM 431 analog input module family was introduced alongside the S7-400 platform in 1994. Early hardware revisions (Order suffix -0AA0) supported fixed measurement ranges and required external signal conditioning for thermocouple and RTD inputs. Subsequent revisions introduced on-board linearization, expanded channel counts, and configurable input types via STEP 7 parameter assignment blocks (PABs).

The transition from -0AA0 to -0AB0 hardware revisions brought improved EMC shielding, extended operating temperature tolerance, and enhanced diagnostic interrupt capability. The -7KF00 variant specifically targets high-density analog acquisition with 8 differential input channels, supporting voltage (±10V, ±5V, ±2.5V, ±1.25V) and current (0–20mA, 4–20mA, ±20mA) measurement modes selectable per channel group.

S7-400 SM 431 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Siemens S7-400 SM 431 analog input family. Each entry reflects a distinct hardware configuration available for sourcing through DriveKNMS.

Analog Input Modules (SM 431)

• 6ES7431-0HH00-0AB0: 8-channel AI, ±10V/4–20mA, 12-bit, standard resolution analog input module.
• 6ES7431-1KF00-0AB0: 8-channel AI, ±10V/4–20mA, 13-bit, high-accuracy differential input module.
• 6ES7431-1KF10-0AB0: 8-channel AI, 13-bit, extended diagnostic interrupt support, hardware revision 10.
• 6ES7431-7KF00-0AB0: 8-channel AI, ±10V/4–20mA/±20mA, 13-bit, configurable per channel group, diagnostic capable.
• 6ES7431-7KF10-0AB0: 8-channel AI, 13-bit, hardware revision 10, improved EMC, drop-in replacement for -7KF00.
• 6ES7431-7QH00-0AB0: 16-channel AI, ±10V/4–20mA, 13-bit, high-density analog acquisition for large process loops.
• 6ES7431-7RF00-0AB0: 8-channel AI, thermocouple/RTD input, on-board linearization, temperature measurement module.
• 6ES7431-7SF00-0AB0: 8-channel AI, resistance/potentiometer input, specialized for position feedback applications.
• 6ES7431-7TF00-0AB0: 8-channel AI, HART-capable analog input, supports field device diagnostics over 4–20mA loop.
• 6ES7431-7UF00-0AB0: 8-channel AI, high-speed analog input, reduced conversion time for fast process variables.
• 6ES7431-7KF20-0AB0: 8-channel AI, 13-bit, hardware revision 20, latest production revision of the KF sub-family.
• 6ES7431-7QH10-0AB0: 16-channel AI, hardware revision 10, extended temperature range, suitable for harsh environments.
• 6ES7431-7RF10-0AB0: 8-channel thermocouple/RTD AI, hardware revision 10, enhanced cold junction compensation.
• 6ES7431-7SF10-0AB0: 8-channel resistance AI, hardware revision 10, improved linearity specification.
• 6ES7431-7TF10-0AB0: 8-channel HART AI, hardware revision 10, updated HART command set support.
• 6ES7431-7UF10-0AB0: 8-channel high-speed AI, hardware revision 10, sub-millisecond conversion cycle.

Quality Control for the S7-400 SM 431 Range

The SM 431 module family presents specific quality verification challenges due to the complexity of its analog front-end circuitry, backplane communication interface, and channel-level diagnostic logic. DriveKNMS applies a structured test protocol to all SM 431 units prior to dispatch:

• Backplane connector inspection: pin integrity, contact resistance measurement, and mechanical seating verification against S7-400 rack specifications.
• Power rail verification: internal DC/DC converter output stability under load, ripple measurement within Siemens-specified limits.
• Channel-level analog accuracy test: each input channel is stimulated across the full measurement range using calibrated signal sources; output values are compared against reference within ±0.1% of full scale.
• Diagnostic interrupt functional test: hardware fault simulation to verify that the module correctly generates diagnostic interrupts readable by the CPU via OB82.
• STEP 7 parameter assignment verification: modules are configured with standard PABs and confirmed to accept and retain parameter data across power cycles.
• Firmware revision logging: hardware and firmware revision codes are recorded and included in the shipment documentation for traceability.
