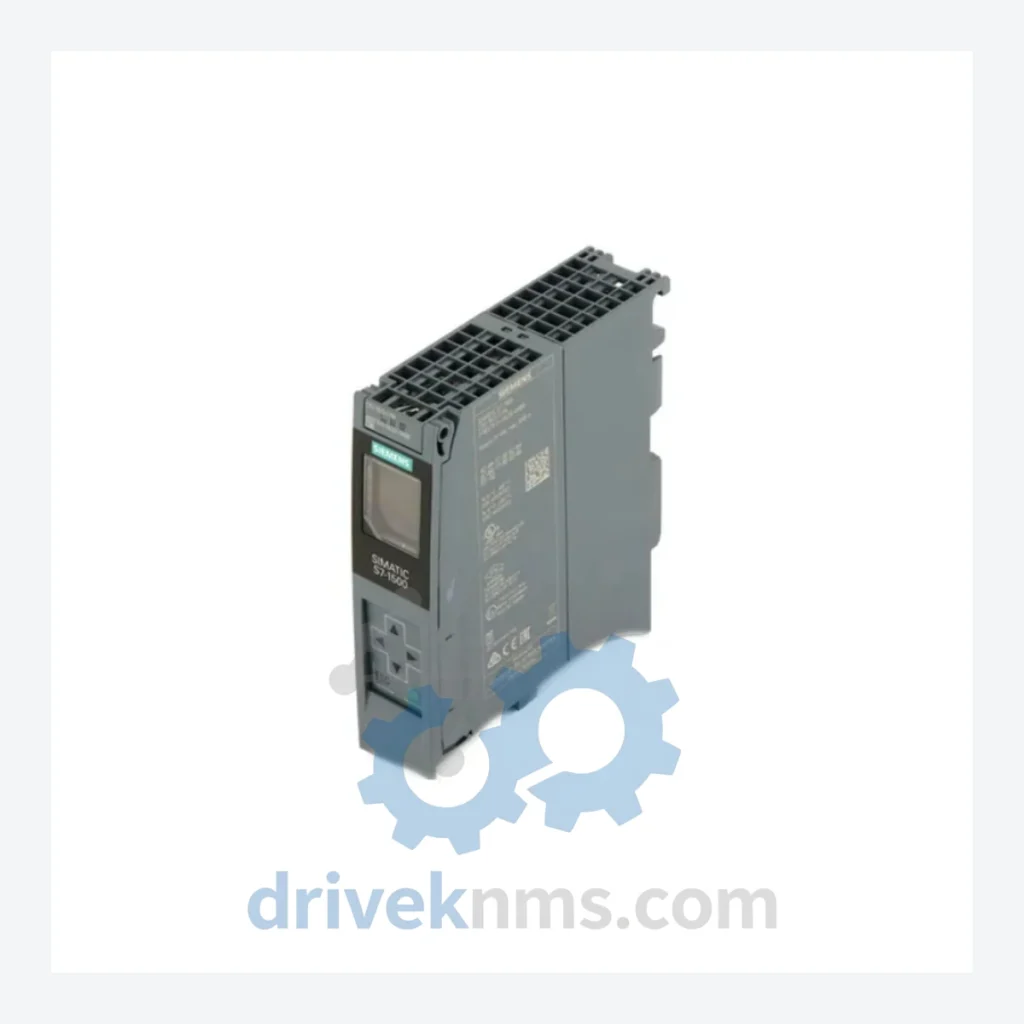

Siemens SIMATIC S7-1500 CPU Modules: 6ES7513-1AL02-0AB0

Name: Siemens SIMATIC S7-1500 CPU Modules: 6ES7513-1AL02-0AB0
Brand: Siemens

Model: 6ES7513-1AL02-0AB0

Brand Siemens

Series S7-1500

Model 6ES7513-1AL02-0AB0

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Siemens SIMATIC S7-1500 Series Technical Notes

The Siemens SIMATIC S7-1500 is the current-generation programmable logic controller (PLC) platform deployed across heavy industrial sectors globally, including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, pharmaceutical batch processing, and automotive body-in-white assembly lines. Introduced in 2012 as the successor to the S7-300 and S7-400 families, the S7-1500 architecture is built around a high-speed backplane bus, integrated motion control, and native PROFINET IRT communication — making it the dominant DCS/PLC hybrid platform in European and Asian process industries. The 6ES7513-1AL02-0AB0 (CPU 1513-1 PN, firmware V2.9+) represents the mid-range processing tier of this family, rated for medium-complexity automation tasks with 300 KB work memory for code and 1.5 MB for data.

The Evolution of S7-1500 Architecture

The S7-1500 platform has undergone four major hardware generations since its 2012 launch. The initial V1.x firmware generation (2012–2015) established the core backplane bus at 400 Mbit/s and introduced the integrated display panel on CPU modules. The V2.x generation (2016–2020) added OPC UA server functionality natively on the CPU, expanded motion control axis counts, and introduced the ET 200SP distributed I/O integration. The V3.x generation (2021–present) introduced the S7-1500R/H redundancy CPUs and the T-CPU series for CNC/motion applications.

The 6ES7513-1AL02-0AB0 belongs to the V2.x hardware revision (firmware baseline V2.1, upgradeable to V3.1), placing it in the mature phase of the product lifecycle. Siemens continues to supply this article number but has introduced the CPU 1513-1 PN V3.0 (6ES7513-1AL03-0AB0) as the current shipping variant. The -0AB0 suffix denotes standard firmware packaging without safety extensions. Compatibility with existing S7-1500 racks (6ES7590-1AB60-0AA0, 6ES7590-1AC40-0AA0) is maintained across all firmware generations, ensuring backward integration in brownfield installations.

S7-1500 Full Catalog & Functionalities (SKU List)

CPU Modules

6ES7511-1AK02-0AB0: CPU 1511-1 PN — entry-level CPU, 150 KB code memory, single PROFINET port, for small-to-medium machine control.
6ES7513-1AL02-0AB0: CPU 1513-1 PN — mid-range CPU, 300 KB code memory, dual PROFINET port, standard process automation tier.
6ES7515-2AM02-0AB0: CPU 1515-2 PN — upper mid-range, 500 KB code memory, 2× PROFINET, high I/O point density applications.
6ES7516-3AN02-0AB0: CPU 1516-3 PN/DP — high-end CPU, 1 MB code memory, PROFINET + PROFIBUS DP master, for complex multi-axis and process control.
6ES7518-4AP00-0AB0: CPU 1518-4 PN/DP/MFP — top-tier CPU, 4 MB code memory, multi-function platform with Linux runtime support.
6ES7512-1DK01-0AB0: CPU 1512SP-1 PN — ET 200SP form-factor CPU for distributed control cabinet integration.

Digital Input (DI) Modules

6ES7521-1BH00-0AB0: DI 16×24VDC HF — 16-channel 24 VDC digital input, high-frequency diagnostics, 0.05 ms input delay.
6ES7521-1BL00-0AB0: DI 32×24VDC HF — 32-channel 24 VDC digital input, compact high-density I/O for large machine panels.
6ES7521-1FH00-0AB0: DI 16×24..125VDC BA — 16-channel wide-voltage input, suitable for field devices with non-standard supply voltages.

Digital Output (DO) Modules

6ES7522-1BH01-0AB0: DQ 16×24VDC/0.5A HF — 16-channel transistor output, 0.5 A per channel, high-frequency switching for solenoid valve control.
6ES7522-1BL01-0AB0: DQ 32×24VDC/0.5A HF — 32-channel transistor output, high-density DO for large actuator arrays.
6ES7522-5HH00-0AB0: DQ 16×230VAC/2A ST — 16-channel relay/triac output for 230 VAC load switching in power distribution panels.

Analog Input (AI) Modules

6ES7531-7KF00-0AB0: AI 8×U/I/RTD/TC ST — 8-channel universal analog input, supports voltage, current, RTD, and thermocouple in a single module.
6ES7531-7NF10-0AB0: AI 8×U/I HS — 8-channel high-speed analog input, 62.5 µs conversion time, for fast process variable acquisition.

Analog Output (AO) Modules

6ES7532-5HF00-0AB0: AQ 8×U/I HS — 8-channel high-speed analog output, 62.5 µs settling time, for precision valve positioner and drive reference signals.

Communication & Interface Modules

6ES7541-1AB00-0AB0: CM PtP RS422/485 HF — point-to-point serial communication module for legacy Modbus RTU and proprietary serial protocols.
6ES7545-5DA00-0AB0: CM CANopen — CANopen master/slave communication for automotive and mobile machinery integration.

Power Supply Modules

6EP1333-4BA00: SITOP PSU100S 24V/5A — 24 VDC, 5 A system power supply for S7-1500 rack auxiliary power.
6ES7505-0KA00-0AB0: PM 70W 120/230VAC — system power module, 70 W, for S7-1500 rack bus power supply.

Continue The Model Path

Use system, brand and series routes to compare related published models.

Move from this exact model into the matching system hub, brand archive, model-family archive or lifecycle sourcing route before sending a final RFQ list.
