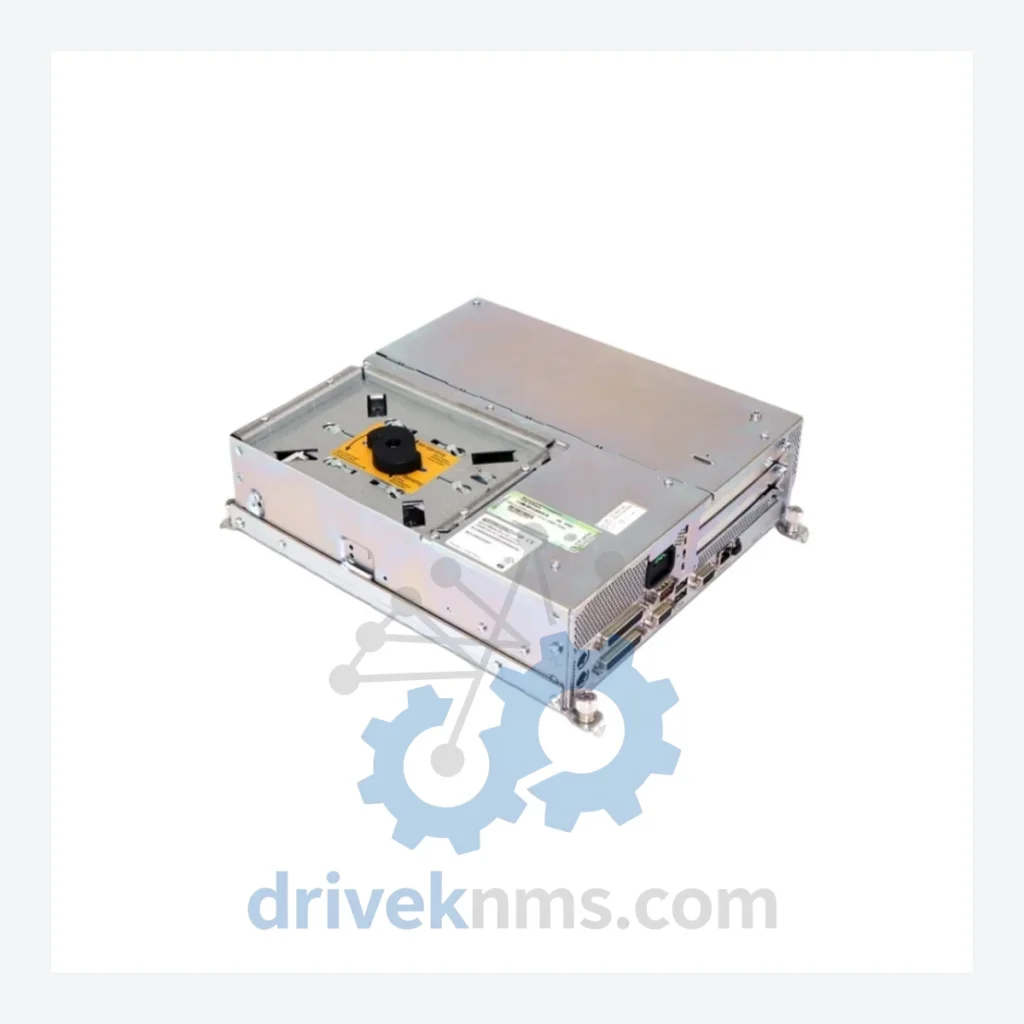

Siemens SINUMERIK PCU 50 Modules – 6FC5210-0DF25-2AA0

Technical Dossier

Product Details And Specifications

Siemens SINUMERIK PCU 50 Series Technical Notes

The Siemens SINUMERIK PCU 50 (PC Unit 50) is the PC-based operator panel computing platform developed for the SINUMERIK 840D and 840Di CNC control systems. It has been deployed across heavy industrial sectors globally — including petrochemical plants, nuclear facility machining centers, automotive body-in-white lines, aerospace component manufacturing, and precision tooling operations. The PCU 50 functions as the human-machine interface (HMI) computing core, running the SINUMERIK HMI Advanced (HMI-ADV) or HMI Embedded software on a Windows-based architecture. Its ruggedized design, passive cooling options, and long-term availability made it the standard computing platform for SINUMERIK 840D installations from the late 1990s through the 2010s. Installed base estimates place the PCU 50 family in tens of thousands of machine tools worldwide, making lifecycle support and spare parts availability a critical operational concern for maintenance engineers and plant managers.

The Evolution of SINUMERIK PCU 50 Architecture

The PCU 50 platform underwent several hardware generations, each tied to advances in PC processor technology while maintaining backward compatibility with the SINUMERIK 840D backplane and drive bus infrastructure.

Generation 1 (PCU 50.1): Based on Intel Pentium III / Celeron processors at 600 MHz and 800 MHz. Ran Windows NT 4.0 or Windows 2000. RAM configurations of 128 MB and 256 MB. IDE hard disk interface. These units are now fully obsolete and require refurbished replacements.

Generation 2 (PCU 50.2): Introduced Intel Pentium 4 / Celeron processors at 1.2 GHz and 1.5 GHz. Transitioned to Windows XP Embedded. RAM expanded to 512 MB. Compact Flash (CF) boot options introduced alongside HDD. The 6FC5210-0DF25-2AA0 belongs to this generation — 1.2 GHz CPU, 512 MB RAM, with RA (Rear Assembly) mechanical configuration.

Generation 3 (PCU 50.3): Intel Core 2 Duo processors. Windows XP Professional or Windows 7 Embedded. SATA storage. USB 2.0 expansion. Improved thermal management. Introduced compatibility with SINUMERIK Operate software layer.

Modern Successor — PCU 50.5 / IPC477C: Siemens transitioned the PCU 50 platform to the SIMATIC IPC477C/D industrial PC family, running Windows 10 IoT Enterprise. The IPC477 series is the current recommended replacement for all PCU 50.1 and PCU 50.2 installations requiring hardware refresh. Migration requires HMI software re-commissioning and may require NCK parameter backup and restore procedures.

Compatibility note: PCU 50.1 and PCU 50.2 units share the same mechanical mounting interface (OP 010, OP 012, OP 015 operator panels) but differ in BIOS, driver stacks, and supported HMI software versions. Cross-generation substitution requires firmware validation.

SINUMERIK PCU 50 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented SINUMERIK PCU 50 product range. Each unit is a self-contained PC computing module for CNC HMI operation.

PCU 50.1 — Generation 1 Units (Pentium III / Celeron, Windows NT/2000)

6FC5210-0DF00-1AA0: PCU 50.1, 600 MHz Celeron, 128 MB RAM, HDD, Win NT 4.0
6FC5210-0DF00-2AA0: PCU 50.1, 600 MHz Celeron, 256 MB RAM, HDD, Win 2000
6FC5210-0DF01-0AA0: PCU 50.1, 800 MHz Celeron, 128 MB RAM, HDD, Win NT 4.0
6FC5210-0DF01-1AA0: PCU 50.1, 800 MHz Celeron, 256 MB RAM, HDD, Win 2000
6FC5210-0DF10-0AA0: PCU 50.1, 1.0 GHz Pentium III, 256 MB RAM, HDD, Win 2000

PCU 50.2 — Generation 2 Units (Pentium 4 / Celeron, Windows XP Embedded)

6FC5210-0DF20-0AA0: PCU 50.2, 1.2 GHz Celeron, 256 MB RAM, HDD, Win XP Emb
6FC5210-0DF20-1AA0: PCU 50.2, 1.2 GHz Celeron, 512 MB RAM, HDD, Win XP Emb
6FC5210-0DF25-0AA0: PCU 50.2, 1.2 GHz Celeron, 256 MB RAM, CF boot, Win XP Emb
6FC5210-0DF25-1AA0: PCU 50.2, 1.2 GHz Celeron, 512 MB RAM, CF boot, Win XP Emb
6FC5210-0DF25-2AA0: PCU 50.2, 1.2 GHz Celeron, 512 MB RAM, RA config, Win XP Emb — current listing
6FC5210-0DF30-0AA0: PCU 50.2, 1.5 GHz Pentium 4, 512 MB RAM, HDD, Win XP Emb
6FC5210-0DF30-1AA0: PCU 50.2, 1.5 GHz Pentium 4, 1 GB RAM, HDD, Win XP Emb

PCU 50.3 — Generation 3 Units (Core 2 Duo, Windows XP Pro / Win 7 Emb)

6FC5210-0DF40-0AA0: PCU 50.3, Core 2 Duo 1.5 GHz, 1 GB RAM, SATA HDD, Win XP Pro
6FC5210-0DF40-1AA0: PCU 50.3, Core 2 Duo 1.5 GHz, 2 GB RAM, SATA HDD, Win 7 Emb
6FC5210-0DF40-2AA0: PCU 50.3, Core 2 Duo 1.5 GHz, 2 GB RAM, SSD, Win 7 Emb
6FC5210-0DF50-0AA0: PCU 50.3, Core 2 Duo 2.0 GHz, 2 GB RAM, SSD, Win 7 Emb

Quality Control for the SINUMERIK PCU 50 Range

The PCU 50 platform presents specific quality verification challenges due to its PC architecture operating within an industrial CNC environment. Standard functional power-on testing is insufficient. DriveKNMS applies the following test protocol to all PCU 50 units:

Hardware Inspection: Visual inspection of PCB for capacitor bulge, corrosion on edge connectors, and physical damage to the backplane interface. BIOS battery voltage check and replacement if below threshold.

Storage Media Verification: HDD units undergo S.M.A.R.T. diagnostic scan and sector-level read verification. CF card units are tested for read/write cycle integrity and block error rate. Units with degraded storage media receive replacement with compatible capacity drives pre-loaded with the appropriate OS image.

Functional Boot Test: Each unit is booted to the SINUMERIK HMI environment using a reference system. HMI software launch, NCK communication handshake simulation, and operator panel interface signal verification are performed.

Thermal Soak: Units are operated at elevated ambient temperature (45°C) for a minimum of 4 hours to screen for latent thermal failures common in aged electrolytic capacitors and thermal interface materials.

Interface Port Verification: All USB, serial (RS-232/RS-422), Ethernet, and MPI/Profibus ports are tested for signal integrity using loopback and protocol analyzers.

Units passing all stages are issued a DriveKNMS test certificate with technician ID, test date, and individual unit serial number.
