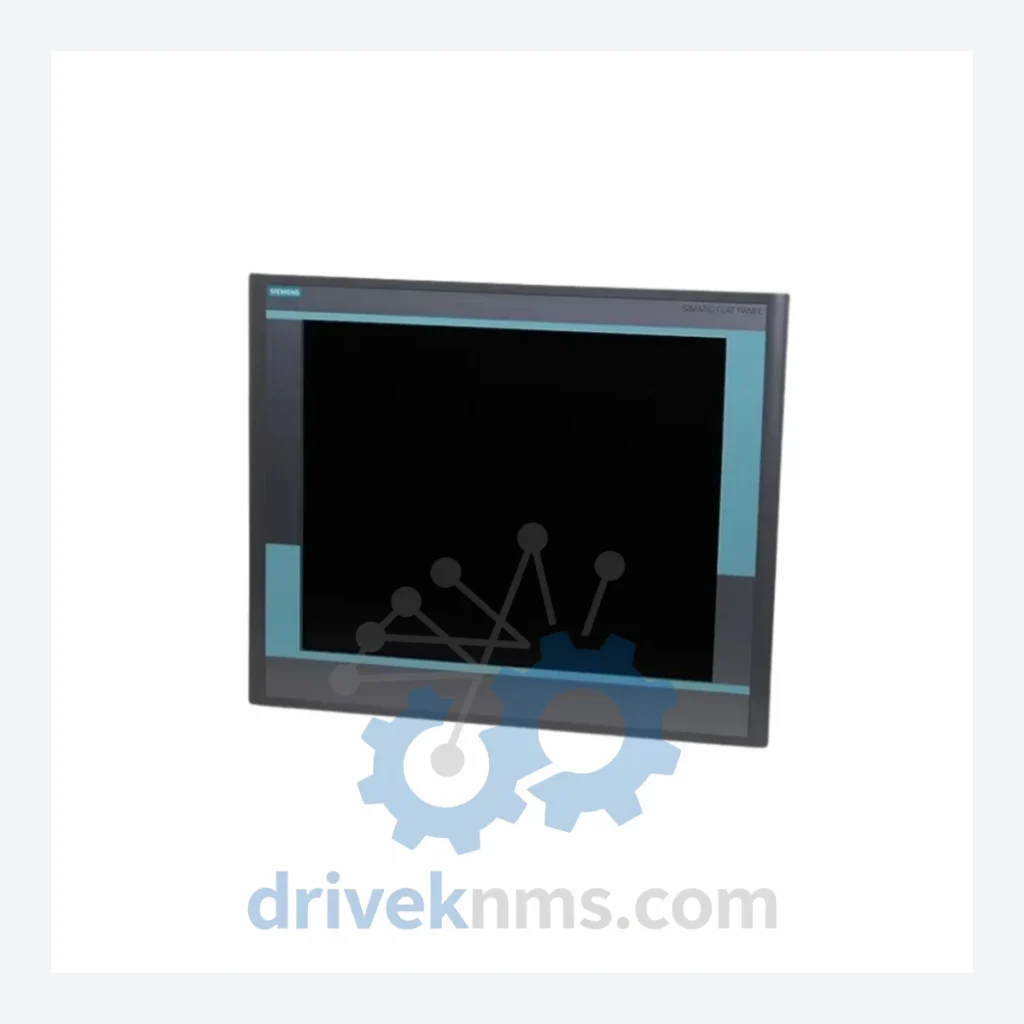

Siemens SIMATIC HMI 6GF6221-2CA11 Touch Panel

Technical Dossier

Product Details And Specifications

Siemens SIMATIC HMI 6GF6xxx Series Technical Notes

The Siemens SIMATIC HMI 6GF6xxx series represents a generation of operator panels and touch screens deployed across global heavy industry — including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and continuous-process chemical plants. The 6GF6221-2CA11 is a 5.7-inch STN color touch panel operating under the SIMATIC HMI TP/OP platform, designed for direct integration with SIMATIC S5, S7-300, and S7-400 PLCs via MPI, PROFIBUS DP, or serial interfaces. These units are characterized by their ruggedized front-panel IP65 rating, 24 VDC supply, and compatibility with WinCC flexible runtime environments. Installed base counts in the tens of thousands across European and Asian process industries make this series a long-term maintenance priority for plant engineers and MRO procurement teams.

The Evolution of SIMATIC HMI 6GF6xxx Architecture

The 6GF6xxx product line traces its origin to Siemens' early 1990s operator interface strategy, when the SIMATIC OP (Operator Panel) and TP (Touch Panel) families were introduced to replace discrete pushbutton control stations. Early units — such as the OP3, OP7, and OP17 — used character-based monochrome displays and communicated exclusively via PPI or MPI. The transition to the 6GF6xxx catalog number structure marked the introduction of graphical STN and TFT displays, expanded memory, and multi-protocol communication stacks.

By the mid-2000s, the 6GF6xxx series was superseded in new installations by the SIMATIC HMI Comfort Panel line (6AV2124-xxx), which introduced widescreen TFT displays, Ethernet/PROFINET connectivity, and Windows CE 6.0 runtime. However, the 6GF6xxx series remains in active service in brownfield plants where panel replacement requires full mechanical and electrical re-engineering. Siemens officially classified the majority of 6GF6xxx models as discontinued between 2010 and 2018, placing them in the lifecycle phase requiring third-party MRO sourcing for spare and replacement units. Compatibility with WinCC flexible 2008 SP5 is the last confirmed software support milestone for this hardware generation.

SIMATIC HMI 6GF6xxx Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Siemens SIMATIC HMI 6GF6xxx operator panel and touch panel series, classified by display type and primary function:

Touch Panels (TP Series)

6GF6221-2CA11: 5.7-inch STN color touch panel, 320x240 px, MPI/PROFIBUS DP, 24 VDC, IP65 front
6GF6221-2CA10: 5.7-inch STN color touch panel, predecessor revision, MPI interface, 24 VDC
6GF6221-2CB10: 5.7-inch STN color touch panel with integrated PROFIBUS DP, 24 VDC
6GF6240-2CA10: 10.4-inch STN color touch panel, 640x480 px, MPI/PROFIBUS DP, 24 VDC
6GF6240-2CA11: 10.4-inch STN color touch panel, revised firmware, MPI/PROFIBUS DP, 24 VDC
6GF6240-2CB10: 10.4-inch TFT color touch panel, 640x480 px, PROFIBUS DP, 24 VDC
6GF6260-2CA10: 15-inch TFT color touch panel, 1024x768 px, MPI/PROFIBUS DP, 24 VDC
6GF6260-2CA11: 15-inch TFT color touch panel, revised backlight assembly, MPI/PROFIBUS DP

Operator Panels (OP Series)

6GF6210-2AA10: OP 27 monochrome operator panel, 240x128 px, MPI/PROFIBUS DP, 24 VDC
6GF6210-2AA11: OP 27 monochrome operator panel, revised display module, MPI/PROFIBUS DP
6GF6210-2BA10: OP 27 color operator panel, 240x128 px STN, MPI/PROFIBUS DP, 24 VDC
6GF6230-2AA10: OP 37 monochrome operator panel, 320x240 px, MPI/PROFIBUS DP, 24 VDC
6GF6230-2BA10: OP 37 color operator panel, 320x240 px STN, MPI/PROFIBUS DP, 24 VDC
6GF6230-2BA11: OP 37 color operator panel, revised revision, MPI/PROFIBUS DP, 24 VDC
6GF6250-2BA10: OP 77B color operator panel, 320x240 px, MPI/PROFIBUS DP/RS-422, 24 VDC
6GF6250-2BA11: OP 77B color operator panel, updated firmware baseline, MPI/PROFIBUS DP

Quality Control for the SIMATIC HMI 6GF6xxx Range

The 6GF6xxx series presents specific quality verification challenges due to its age profile and the prevalence of counterfeit or misrepresented units in the secondary market. DriveKNMS applies a structured inspection protocol to all incoming 6GF6xxx units:

Visual and mechanical inspection: Front bezel, membrane keypad (where applicable), and connector housing are examined for wear, repair evidence, or non-OEM replacement components. Serial number format is cross-referenced against Siemens production date coding conventions.
Power-on functional test: Each unit is powered at 24 VDC nominal and verified to complete POST without fault codes. Display uniformity, touch calibration (for TP variants), and backlight output are measured.
Communication interface verification: MPI and PROFIBUS DP ports are tested using a SIMATIC S7-300 test rack to confirm protocol handshake, address assignment, and data exchange at rated baud rates up to 12 Mbit/s for PROFIBUS DP.
Firmware revision logging: Installed firmware version is recorded and disclosed to the customer prior to shipment. Where customer-specified firmware versions are required, DriveKNMS coordinates with the customer's engineering team on compatibility.
Packaging and ESD protection: All units are shipped in anti-static bags with foam cushioning. Export packaging meets ISTA 2A transit test standards.
