Siemens 6GK1161-3AA00 Communication Processor – Obsolete SIMATIC NET Spare Part

Technical Dossier

Product Details And Specifications

Siemens 6GK1161-3AA00 Communication Processor – Obsolete SIMATIC NET Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

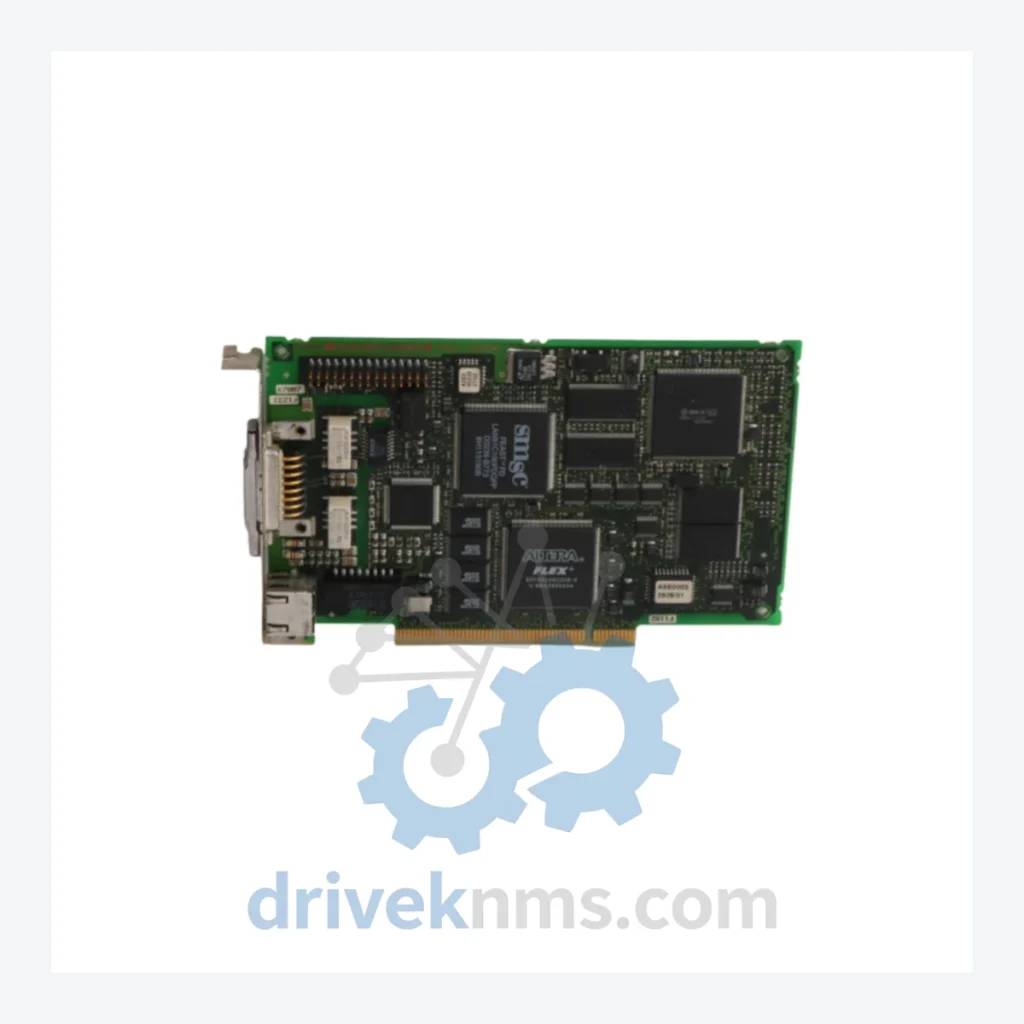

The 6GK1161-3AA00 was the standard PCI communication card for SIMATIC NET installations throughout the 2000s and early 2010s. It provided the physical and protocol layer connecting Windows-based SCADA and engineering stations to S7-300, S7-400, and S7-1500 controllers over Industrial Ethernet. Siemens has since transitioned to PCIe-based successors, but those successors are not drop-in replacements: they require updated SIMATIC NET PC Software versions, driver re-installation, and in many cases, a Windows OS upgrade — none of which are trivial in a validated or safety-classified environment.

For plant managers facing pressure to retire aging SIMATIC systems, the financial calculus is straightforward. A full migration of a mid-size S7-400 line — including new hardware, engineering hours, FAT/SAT testing, and production loss during cutover — routinely exceeds USD 500,000. A verified spare 6GK1161-3AA00 card, held in climate-controlled storage, can defer that expenditure by 5 to 10 years. The strategy is not to ignore modernization; it is to execute it on the plant's schedule, not on the schedule imposed by an unplanned hardware failure.

Procurement teams responsible for asset protection should maintain a minimum of two spare units per engineering station cluster. Single-point-of-failure exposure on a communication card of this criticality is an unacceptable operational risk.

Condition & Reliability Assurance

Discontinued hardware sourced from the secondary market carries inherent risk. DriveKNMS applies a 5-step inspection protocol before any 6GK1161-3AA00 unit is offered for sale:

• Step 1 – Visual Inspection: Board-level examination for physical damage, solder joint integrity, and connector pin condition. Units with bent or corroded PCI edge connectors are rejected.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode on cards of this vintage. Each unit is inspected for bulging, leakage, or ESR deviation. Suspect capacitors are flagged for replacement before dispatch.
• Step 3 – Firmware Version Verification: The onboard firmware version is confirmed against known-compatible SIMATIC NET PC Software releases. Mismatched firmware is a common cause of intermittent communication faults that are difficult to diagnose in the field.
• Step 4 – Functional Bench Test: Where test infrastructure permits, the card is seated in a compatible PCI slot and communication is verified at the protocol layer.
• Step 5 – Anti-Static Packaging & Documentation: Units are shipped in ESD-safe packaging with inspection records. Traceability documentation is available on request.

Extending Automation Asset Life: A Maintenance Strategy for Plant Management

The 6GK1161-3AA00 is one component in a broader strategy for extending the operational life of SIMATIC-based automation assets. Plants that have invested in S7-300 or S7-400 infrastructure — and the associated process knowledge, operator training, and validated software — have strong financial reasons to protect that investment rather than accelerate replacement.

A structured spare parts program for legacy SIMATIC systems should address three categories: communication hardware (CP cards, switches, media converters), power supply modules, and CPU battery/memory card assemblies. Communication hardware, including the 6GK1161-3AA00, is the highest-risk category because it sits at the interface between the control system and the operator layer. Its failure is immediately visible and immediately production-impacting.

Q: Can this card work with newer versions of SIMATIC NET PC Software?
A: The 6GK1161-3AA00 has confirmed compatibility with SIMATIC NET PC Software up to specific versions aligned with Windows 7. Compatibility with Windows 10 and later SIMATIC NET releases is not guaranteed and should be verified against your specific software version before procurement.
