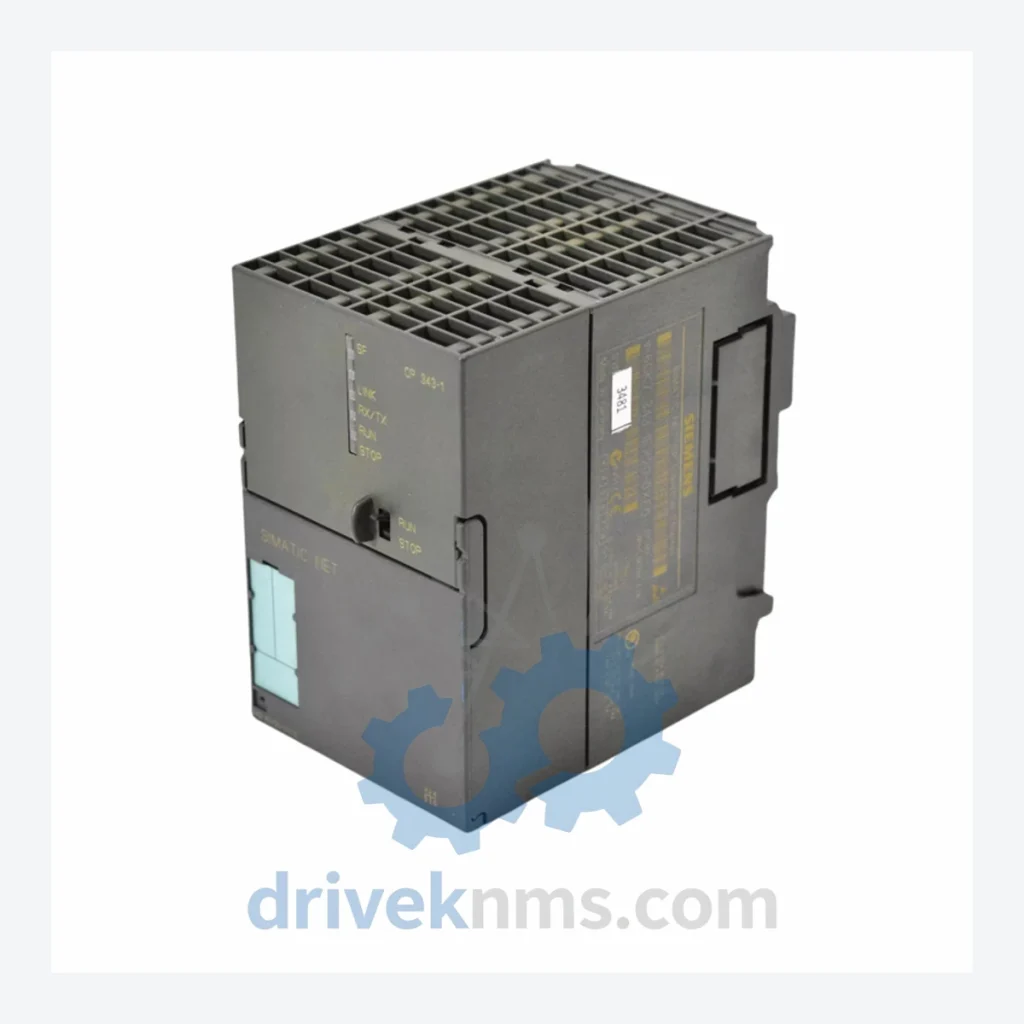

Siemens 6GK7343-1EX20-0XE0 Ethernet CP – Obsolete SIMATIC NET Spare Part

When a CP 343-1 EX Advanced fails on an active S7-300 line, the clock starts immediately. A full migration from SIMATIC S7-300 to a current-generation S7-1500 platform — including engineering hours, new hardware, software licensing, I/O rewiring, and production downtime — routinely exceeds $500,000 USD for a mid-size manufacturing cell. That figure does not account for lost throughput, customer penalties, or the months of validation required in regulated industries. The 6GK7343-1EX20-0XE0 is a discontinued module. DriveKNMS holds verified physical stock. Securing a replacement unit today is not a purchasing decision — it is an asset protection decision.

Technical Specifications

Solving the Discontinued Hardware Crisis

The SIMATIC S7-300 platform was the backbone of industrial automation for over two decades. Tens of thousands of production lines worldwide still depend on it — not because plant managers are unaware of newer alternatives, but because the cost and risk of migration are prohibitive. The CP 343-1 EX Advanced (6GK7343-1EX20-0XE0) is the Ethernet gateway for these systems: it handles all TCP/IP and ISO communication between the S7-300 CPU and the plant network, SCADA systems, and HMI panels.

Siemens has formally discontinued this module. Authorized distributors no longer carry stock. When this component fails, the standard response from OEMs is a forced migration proposal. That proposal is not in your interest — it is in theirs.

A targeted spare-parts strategy changes the economics entirely. A single verified replacement unit, sourced and held before a failure event, converts a potential six-figure crisis into a four-hour maintenance window. Plants running S7-300 infrastructure with a remaining useful life of 5–10 years should treat the 6GK7343-1EX20-0XE0 as a critical insurance asset, not a consumable line item.

How to extend your S7-300 system life by 5–10 years without a platform migration:

• Identify single points of failure. The CP module is the network node. Its failure isolates the entire PLC from SCADA and MES. Holding one verified spare eliminates this risk at a fraction of the cost of any migration project.
• Audit firmware versions before a crisis. Mismatched firmware between a replacement CP and the existing CPU can cause communication faults. Pre-validate compatibility during a scheduled maintenance window, not during an emergency.
• Establish a documented spare-parts register. For each S7-300 rack in service, catalog the CP, CPU, and power supply part numbers. This register becomes the foundation of a low-cost, multi-year maintenance strategy.
• Negotiate long-term supply agreements. For plants with multiple identical racks, securing a small buffer stock (2–3 units) through a specialist supplier locks in current pricing and guarantees availability regardless of market conditions.
• Defer migration on your terms. With a reliable spare-parts pipeline, the decision to migrate becomes a planned capital project — scheduled during a low-demand period, budgeted properly, and executed without production pressure.

Condition & Reliability Assurance

Discontinued hardware sourced from the secondary market carries inherent risk. DriveKNMS applies a structured 5-step qualification process to every unit before it is offered for sale.

• Step 1 – Visual and mechanical inspection: Full external examination for physical damage, pin corrosion, connector wear, and label integrity. Units with compromised housings are rejected at this stage.
• Step 2 – Electrolytic capacitor assessment: Aged electrolytic capacitors are the primary failure mode in legacy communication modules. Each unit is assessed for capacitor condition; units showing signs of electrolyte leakage or bulging are disqualified.
• Step 3 – Firmware version verification: The installed firmware version is documented and cross-referenced against known compatibility matrices for S7-300 CPU generations. Firmware version is disclosed to the buyer prior to shipment.
• Step 4 – Functional power-on test: The module is powered and tested for correct initialization and communication response under controlled bench conditions.
• Step 5 – Anti-static packaging and documentation: Units are packaged in ESD-safe materials with a condition report. Traceability documentation is included where available.

Key Features for System Maintenance

• Drop-in replacement: The 6GK7343-1EX20-0XE0 installs directly into the existing S7-300 rack without mechanical modification.
• No CPU reprogramming required: Provided the replacement unit carries a compatible firmware version, existing S7 program blocks and network configuration parameters are retained. Engineering intervention is limited to parameter download via STEP 7 or TIA Portal in S7-300 compatibility mode.
• Avoids engineering reconstruction costs: A forced platform migration requires full I/O mapping, program conversion, HMI screen redevelopment, and factory acceptance testing. A like-for-like CP replacement eliminates all of these cost categories.
• Immediate dispatch: Stock is held at our warehouse and can be shipped same day or next business day upon order confirmation.

FAQ

What warranty applies to a discontinued module?
DriveKNMS provides a 90-day functional warranty on all refurbished units and a 30-day warranty on new surplus stock. Warranty covers failure under normal operating conditions and excludes physical damage caused after installation.

How do I confirm the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for label authenticity, PCB markings, and component consistency. We do not source from unverified brokers. Buyers may request pre-shipment photographs and, where available, original packaging documentation.

Should I buy more than one unit?
For any production line where the S7-300 system is expected to remain in service for more than three years, holding a minimum of one cold spare is standard practice. For multi-rack installations or lines where downtime cost exceeds $10,000/hour, a buffer of two to three units is a defensible capital expenditure.

Can you source other S7-300 components?
Yes. DriveKNMS specializes in obsolete and hard-to-find Siemens SIMATIC components. Contact us with your full BOM for a consolidated sourcing assessment.
