Siemens 6SE7034-5HK84-1JC0 Trigger IGD Board – Obsolete MASTERDRIVES Spare Part

Technical Dossier

Product Details And Specifications

Siemens 6SE7034-5HK84-1JC0 Trigger IGD Board – Obsolete MASTERDRIVES Spare Part

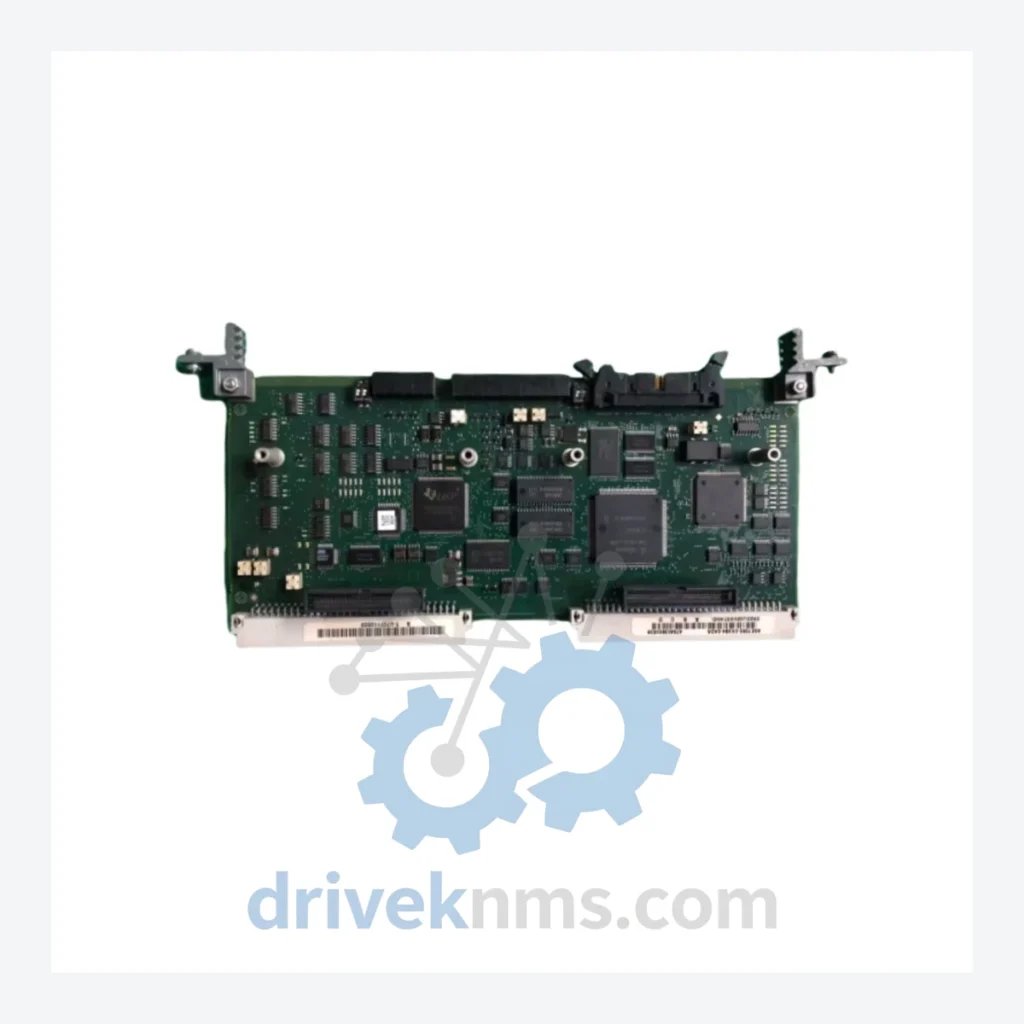

The Siemens 6SE7034-5HK84-1JC0 is the trigger and gate driver (IGD) board used in high-power MASTERDRIVES MC/VC units. Siemens discontinued the MASTERDRIVES 6SE70 product family, and OEM replacement boards are no longer available through standard distribution channels. DriveKNMS maintains a RFQ availability review of this board sourced through controlled industrial channels.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Siemens MASTERDRIVES 6SE70 series was a dominant platform in heavy industrial automation throughout the 1990s and 2000s — cement plants, steel mills, paper machines, and municipal water treatment facilities built their drive infrastructure around it. Siemens formally ended production and support for this family, leaving thousands of installed units without a factory parts pipeline.

The trigger/IGD board is the component most vulnerable to thermal cycling stress over a multi-decade service life. It sits at the interface between the control electronics and the IGBT power modules, managing gate signals and overcurrent protection. When it fails, the drive faults hard and cannot be restarted by any parameter adjustment or firmware reset. There is no workaround — the board must be replaced.

DriveKNMS specializes in sourcing and verifying obsolete Siemens MASTERDRIVES components. Our inventory is not sourced from unknown secondary markets — each unit passes a documented inspection protocol before it is offered for sale.

Extending Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

A structured spare parts strategy can defer that investment by 5–10 years at a fraction of the cost. The approach is straightforward:

This is not a strategy built on optimism. It is a capital allocation decision grounded in the actual cost structure of industrial automation maintenance.

Condition & Reliability Assurance

Every 6SE7034-5HK84-1JC0 board offered by DriveKNMS passes a 5-step inspection protocol before it is listed for sale:

1. Visual inspection: Full board examination for physical damage, burn marks, cracked components, and contamination.
2. Electrolytic capacitor assessment: Capacitors are the primary failure point in aged power electronics. Each board is inspected for bulging, leakage, and ESR degradation.
3. Pin and connector inspection: All edge connectors and pin headers are examined for corrosion, oxidation, and mechanical deformation. Corroded contacts are cleaned and verified for continuity.
4. Firmware version verification: Where readable, firmware version is documented and disclosed to the buyer prior to shipment.
5. Functional cross-reference check: Board configuration is cross-referenced against the 6SE7034-5HK84-1JC0 part number specification to confirm it is the correct assembly revision.

Boards that do not pass all five steps are not offered for sale. Condition grade (new surplus, tested pull, or refurbished) is disclosed on each order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The 6SE7034-5HK84-1JC0 installs directly into the existing drive chassis with no mechanical modification required.
• No reprogramming required: Drive parameters are stored in the CU (Control Unit) board, not the trigger/IGD board. Replacing this board does not erase drive parameters or require re-commissioning of the control program.
• No engineering redesign: Unlike a drive platform migration, a board-level replacement preserves the existing wiring, motor configuration, and PLC interface. The drive returns to service in the same operational state.
• Avoids costly system integration projects: A verified spare board eliminates the need to engage a systems integrator for a drive replacement project, avoiding both the cost and the schedule risk.

How do I confirm the board is genuine Siemens and not a counterfeit?
All boards are inspected for Siemens part markings, PCB revision codes, and component date codes consistent with the original manufacturing period. Boards with inconsistent markings are rejected. We do not source from unverified brokers.

Can you source other MASTERDRIVES boards?
Yes. DriveKNMS maintains sourcing relationships for the broader 6SE70xx spare parts ecosystem, including CU boards, power supply boards, and I/O option boards. Contact us with your full part number.
