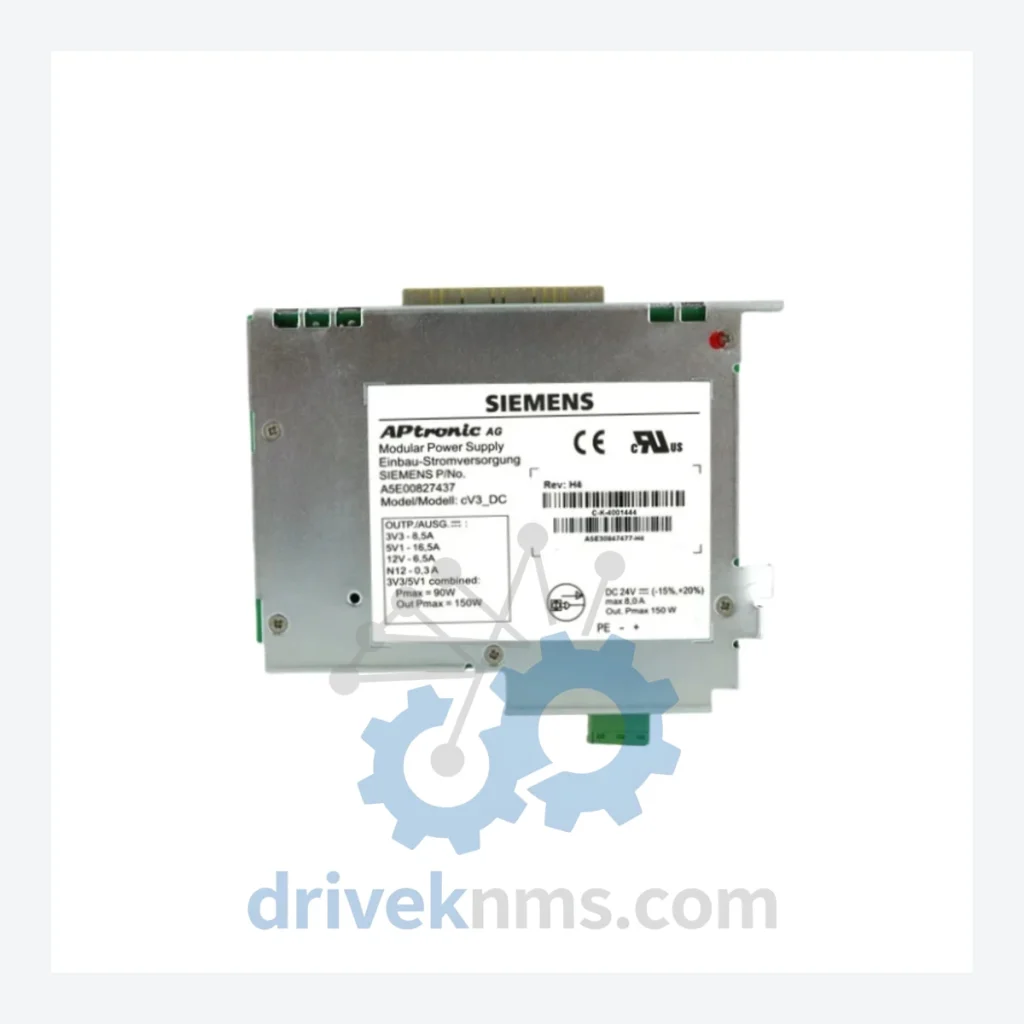

Siemens SIMATIC S7-400 Power Supply Modules: A5E30947477-H4

Name: Siemens SIMATIC S7-400 Power Supply Modules: A5E30947477-H4
Brand: Siemens

Model: A5E30947477-H4

Brand Siemens

Series S7-400

Model A5E30947477-H4

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Siemens SIMATIC S7-400 Series Technical Notes

The Siemens SIMATIC S7-400 is a high-performance programmable logic controller platform engineered for demanding process automation environments. It holds a dominant installed base across global heavy industry sectors including petrochemical refineries, nuclear power stations, chemical processing plants, offshore platforms, and steel manufacturing facilities. The S7-400 architecture supports hot-swappable modules, redundant CPU configurations, and high-availability rack designs — characteristics that made it the preferred DCS backbone for safety-critical continuous process operations throughout the 1990s and 2000s. The A5E30947477-H4 is a power supply module within this ecosystem, providing regulated DC voltage to the S7-400 backplane and connected I/O modules.

The Evolution of SIMATIC S7-400 Architecture

The SIMATIC S7-400 platform was introduced by Siemens in the mid-1990s as the successor to the S5-115U/H and S5-135U/155U series. Its architecture is built around a passive backplane bus (the S7-400 central rack, UR1/UR2) that supports up to 32 modules per rack via expansion interfaces (IM 460/461 send/receive modules). The system operates on a multi-master PROFIBUS-DP architecture and later integrated PROFINET IO capabilities through dedicated CP modules.

Key architectural generations:

Generation 1 (1994–2000): Original S7-400 CPUs (CPU 412-1, CPU 414-1, CPU 416-1). Single-channel, non-redundant. Power supplies in the PS 405 and PS 407 families.
Generation 2 (2000–2008): Introduction of H-series redundant CPUs (CPU 414-4H, CPU 417-4H). Redundant power supply configurations became standard in high-availability installations. Firmware-level PROFIBUS-DP master integration.
Generation 3 (2008–2017): PROFINET IO integration via CP 443-1 Advanced. CPU 410-5H Process Automation introduced for hybrid DCS/PLC applications. Extended temperature range variants released for harsh environments.
End-of-Life / Migration Phase (2017–present): Siemens announced the migration path to SIMATIC S7-1500 and PCS 7 V9.x. Many S7-400 modules entered RFQ availability review. Long-term spare parts support remains critical for installed base maintenance. The A5E3xxxxxxx part number range covers replacement and upgraded variants of original 6ES7 catalog modules.

SIMATIC S7-400 Full Catalog & Functionalities (SKU List)

Power Supply Modules (PS)

A5E30947477-H4: S7-400 replacement power supply module, regulated DC output for central rack backplane
6ES7405-0DA02-0AA0: PS 405 4A, 24 VDC input, 4 A output, standard rack power supply
6ES7405-0KA02-0AA0: PS 405 10A, 24 VDC input, 10 A output, high-current rack supply
6ES7407-0DA02-0AA0: PS 407 4A, 120/230 VAC input, 4 A DC output
6ES7407-0KA02-0AA0: PS 407 10A, 120/230 VAC input, 10 A DC output, standard installation
6ES7407-0KR02-0AA0: PS 407 10A R, redundant-capable power supply for H-system racks

Central Processing Units (CPU)

6ES7412-2XJ05-0AB0: CPU 412-2, 256 KB work memory, PROFIBUS-DP master/slave integrated
6ES7414-3XM05-0AB0: CPU 414-3, 4 MB work memory, dual PROFIBUS-DP interface
6ES7416-3XS07-0AB0: CPU 416-3, 16 MB work memory, high-throughput process applications
6ES7417-4XT05-0AB0: CPU 417-4, 32 MB work memory, maximum S7-400 processing capacity
6ES7414-4HM14-0AB0: CPU 414-4H, redundant H-CPU for fault-tolerant systems
6ES7417-4HG14-0AB0: CPU 417-4H, high-memory redundant CPU for large-scale H-systems

Digital Input / Output Modules (DI/DO)

6ES7421-1BL01-0AA0: SM 421 DI 32x24VDC, 32-channel 24 V DC digital input module
6ES7422-1BL00-0AA0: SM 422 DO 32x24VDC/0.5A, 32-channel transistor output module
6ES7431-1KF10-0AB0: SM 431 AI 8x16Bit, 8-channel high-resolution analog input
6ES7432-1HF00-0AB0: SM 432 AO 8x13Bit, 8-channel analog output module

Interface / Communication Modules (IM / CP)

6ES7460-1BA01-0AB0: IM 460-1, send interface for rack expansion, up to 5 m cable
6ES7461-1BA01-0AB0: IM 461-1, receive interface for expansion rack
6GK7443-1EX30-0XE0: CP 443-1, Industrial Ethernet CP, PROFINET IO controller
6GK7443-5DX05-0XE0: CP 443-5 Extended, PROFIBUS-DP master/slave communication processor

Sourcing Hard-to-Find & Obsolete SIMATIC S7-400 Parts

DriveKNMS provides lifecycle extension support for S7-400 installations including: verified replacement modules for discontinued 6ES7 catalog numbers, cross-reference matching between original catalog numbers and A5E replacement part numbers, and technical documentation support for legacy firmware versions. For plants operating S7-400 systems beyond Siemens' standard support window, DriveKNMS offers long-term supply agreements to ensure continued operational availability without forced migration to S7-1500.
