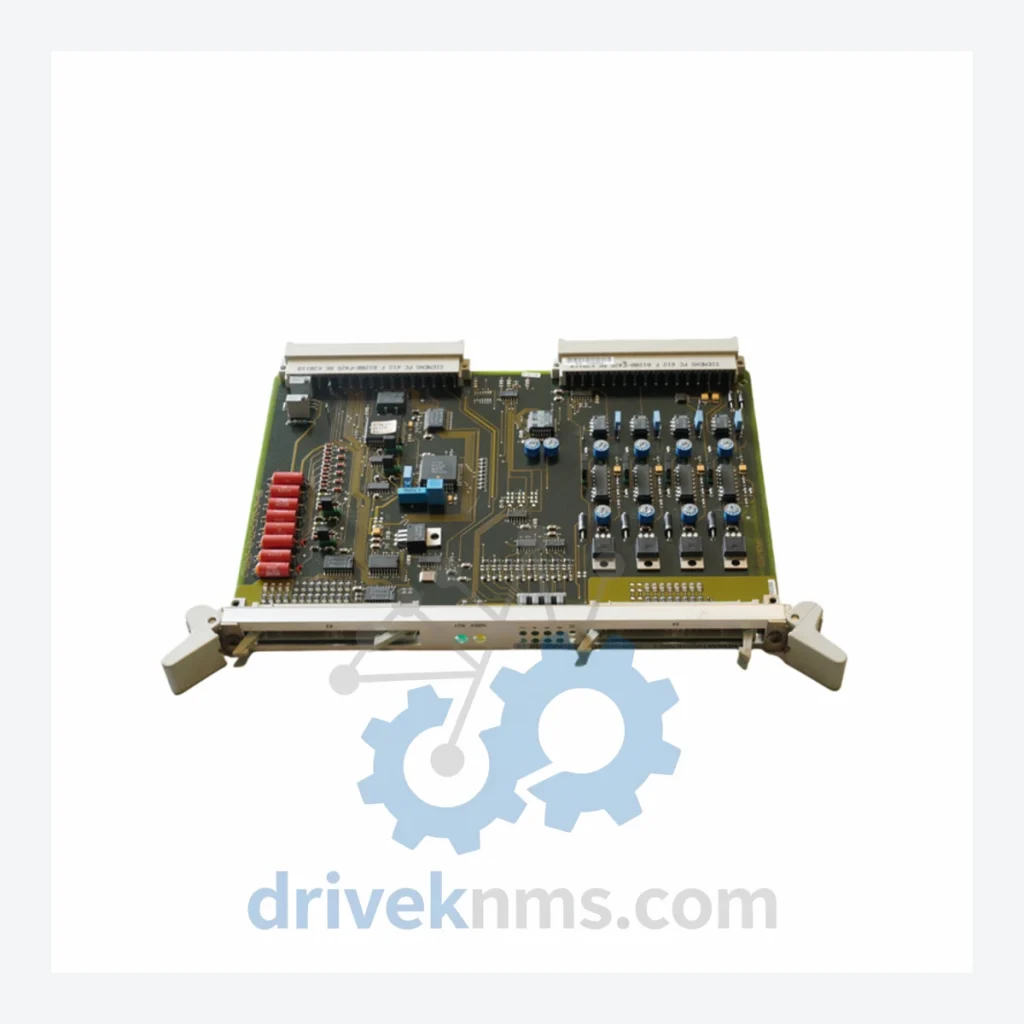

Siemens C79458 Interface Board Modules: C79458-L2430-A1

Technical Dossier

Product Details And Specifications

Siemens C79458 Series Technical Notes

The Siemens C79458 series encompasses a broad family of interface boards, backplane communication modules, and I/O interconnect assemblies developed for use within Siemens SINUMERIK CNC systems and SIMATIC S5/S7 automation platforms. These modules have accumulated significant installed base across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, steel rolling mills, and large-scale chemical processing plants. The C79458 designation covers printed circuit board assemblies that serve as the physical and electrical bridge between the main CPU rack and peripheral I/O, drive, and communication subsystems. Their long service life — often exceeding 20 years in continuous operation — makes reliable spare parts sourcing a critical operational requirement for plant maintenance engineers worldwide.

The Evolution of C79458 Architecture

The C79458 board family was introduced alongside the SINUMERIK 840C and 880 control generations in the late 1980s and early 1990s. Early revisions used through-hole component technology with ISA-style backplane connectors, designed for deterministic real-time communication between the NCU (Numerical Control Unit) and machine-side I/O. As Siemens transitioned through the SINUMERIK 840D and 840Di generations in the late 1990s and 2000s, the C79458 series evolved to incorporate surface-mount components, improved EMI shielding, and support for PROFIBUS-DP communication at up to 12 Mbit/s. Compatibility between early and late revisions is not guaranteed — board suffix letters (e.g., -A1, -B1, -C2) denote hardware revision levels that affect firmware compatibility and connector pinout. Engineers replacing C79458 boards must verify the exact suffix against the machine's original BOM. The entire C79458 product line has entered the obsolescence and long-term maintenance phase; Siemens no longer manufactures these boards as standard catalog items, making third-party specialist suppliers the primary sourcing channel for ongoing plant operations.

C79458 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced part numbers within the C79458 interface board family. Each entry reflects a distinct hardware configuration or revision level.

C79458-L2430-A1: Interface board for SINUMERIK 840C NCU backplane communication link.
C79458-L2430-B1: Revised hardware revision of L2430; improved EMI filtering on bus lines.
C79458-L2001-A1: I/O interface board; connects machine-side digital I/O to NCU rack.
C79458-L2001-B2: Updated revision with extended temperature tolerance for harsh environments.
C79458-L2100-A1: Analog I/O interface board; 8-channel differential input configuration.
C79458-L2100-B1: Analog I/O board with enhanced 16-bit ADC resolution variant.
C79458-L2200-A1: PROFIBUS-DP communication interface board; supports up to 12 Mbit/s.
C79458-L2200-A2: PROFIBUS-DP board with dual-port memory for master/slave configuration.
C79458-L2310-A1: Servo drive interface board; links NCU to SIMODRIVE 611 drive modules.
C79458-L2310-B1: Servo interface board with additional encoder feedback channel support.
C79458-L2400-A1: Backplane bus interface board for SINUMERIK 840D NCU 571/572/573.
C79458-L2400-B1: Revised backplane interface with extended diagnostic LED array.
C79458-L2500-A1: MPI (Multi-Point Interface) communication board; 187.5 kbit/s to 12 Mbit/s.
C79458-L2600-A1: Power supply interface board; monitors 24 VDC and 5 VDC rail integrity.
C79458-L2700-A1: Operator panel interface board; connects OP 010/012/015 panels to NCU.
C79458-L2800-A1: Ethernet TCP/IP interface board for remote diagnostics and DNC communication.
C79458-L2900-A1: Spindle interface board; supports analog ±10 V and digital speed reference output.

Quality Control for the C79458 Range

The C79458 board family presents specific test challenges due to its multi-layer PCB construction, proprietary Siemens backplane bus protocol, and mixed analog/digital signal paths. DriveKNMS applies a structured test protocol to all C79458 units prior to dispatch. Visual inspection covers solder joint integrity, capacitor condition (ESR measurement for electrolytic types), and connector pin straightness. Functional testing is performed using Siemens-compatible backplane test fixtures that simulate the NCU rack environment, verifying correct bus arbitration, interrupt response timing, and I/O channel accuracy. For analog interface boards (L2100 series), all input channels are calibrated against a traceable reference standard. PROFIBUS and MPI communication boards (L2200, L2500) are tested for correct telegram framing and baud rate lock across the full supported speed range. Each board ships with a test certificate documenting pass/fail results for all measured parameters.
