The Siemens LFL1 series of gas burner program controllers occupies a critical position in global heavy industry infrastructure. Deployed across chemical processing plants, nuclear auxiliary systems, petroleum refineries, and district heating stations, the LFL1 family provides sequence-controlled burner management for single-stage and two-stage gas burners. Its relay-based logic architecture, combined with deterministic flame supervision timing, made it the de facto standard for industrial combustion control across Europe, Asia, and the Middle East throughout the 1980s–2010s. Installations remain active in facilities where replacement of the entire burner management system is not economically viable, making long-term spare parts availability a primary operational concern.

The Evolution of LFL1 Architecture

The LFL1 series was developed by Siemens Building Technologies (formerly Landis & Gyr, then Landis & Staefa) as a successor to earlier electromechanical burner controllers. The architecture is built around a fixed-program relay sequencer with integrated flame amplifier inputs, designed to accept ionization probes or UV flame detectors. Early variants (LFL1.1xx) operated on 220V AC with fixed lockout timing. Mid-generation models (LFL1.2xx) introduced adjustable pre-purge and safety times via internal DIP switches or potentiometers, improving compatibility with varying combustion chamber volumes. Later variants (LFL1.3xx and LFL1.6xx) extended the series into two-stage burner applications and added compatibility with Siemens QRA2/QRA4 UV detectors and QRB1 infrared detectors.

Compatibility considerations: LFL1 units are not interchangeable with the newer LME/LMO/LMG series (microprocessor-based), which use CAN-bus diagnostics and differ in terminal layout. Facilities migrating from LFL1 to LME71/LME75 require wiring adaptation and recommissioning. For sites that cannot undertake this migration, sourcing original LFL1 units remains the only path to like-for-like replacement.

LFL1 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified LFL1 series production range. Each unit is a self-contained burner program controller for gas-fired applications.

Single-Stage Controllers (Standard Voltage)

• LFL1.122: Single-stage gas burner controller, 220V AC, fixed pre-purge 30s, ionization input
• LFL1.132: Single-stage controller, 220V AC, extended safety time 10s, ionization/UV input
• LFL1.138: Single-stage controller, 220V AC, 8s safety time, QRB1 infrared detector compatible
• LFL1.178: Single-stage controller, 220V AC, 8s safety time, extended lockout reset delay

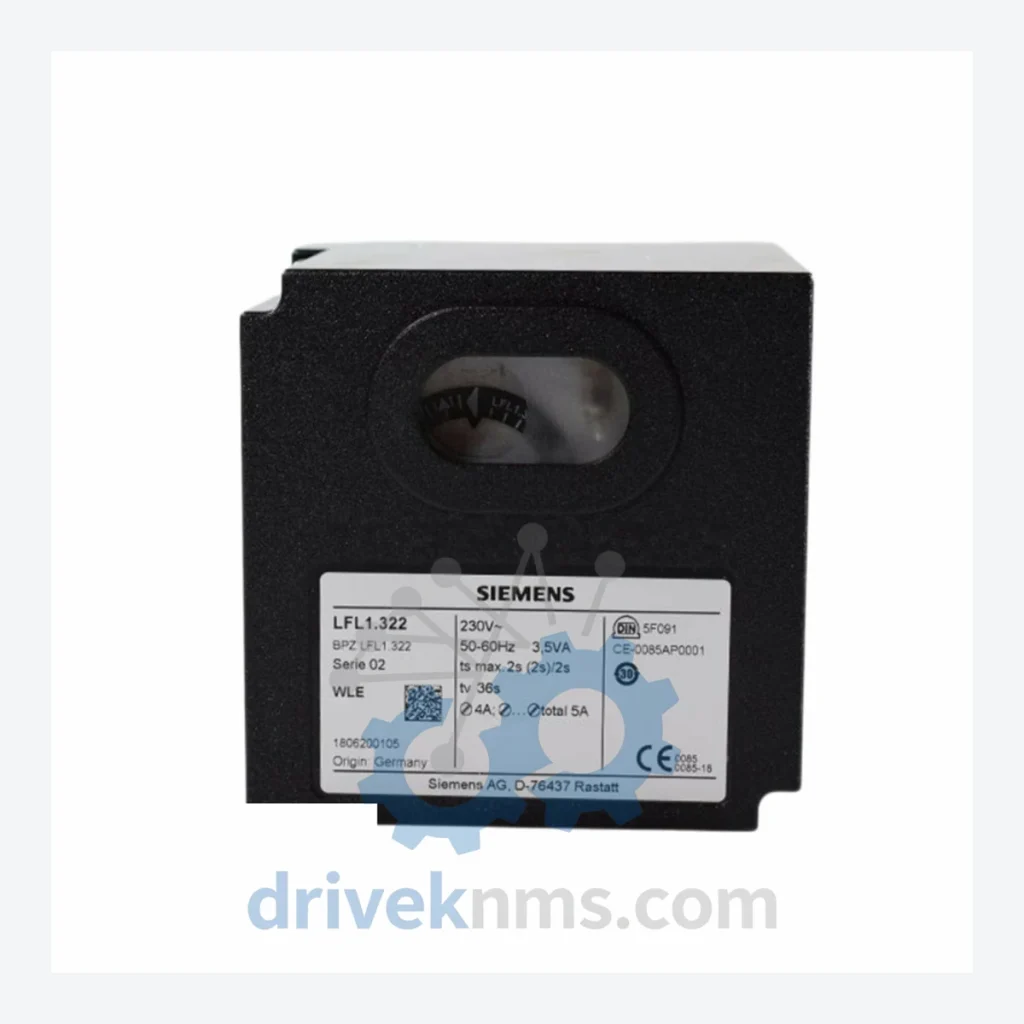

• LFL1.322: Single-stage gas burner controller, 220V AC, 2s safety time, ionization flame detection — this listing
• LFL1.333: Single-stage controller, 220V AC, 3s safety time, UV detector QRA2/QRA4 compatible
• LFL1.335: Single-stage controller, 220V AC, 5s safety time, dual-detector input configuration
• LFL1.338: Single-stage controller, 220V AC, 8s safety time, high-temperature application rated

Two-Stage Controllers

• LFL1.622: Two-stage gas burner controller, 220V AC, 2s safety time, stage-switching relay output
• LFL1.633: Two-stage controller, 220V AC, 3s safety time, UV/ionization selectable input
• LFL1.638: Two-stage controller, 220V AC, 8s safety time, QRB1 compatible, industrial duty
• LFL1.648: Two-stage controller, 220V AC, 8s safety time, extended pre-purge 60s variant

Special Voltage / Regional Variants

• LFL1.125: Single-stage controller, 110V AC (North American market), 5s safety time
• LFL1.325: Single-stage controller, 110V AC, 2s safety time, ionization input
• LFL1.635: Two-stage controller, 110V AC, 5s safety time, stage relay output
• LFL1.928: Special-application variant, extended pre-purge, used in large industrial boiler OEM configurations

Sourcing Hard-to-Find & Obsolete LFL1 Series Parts

DriveKNMS provides: original-manufacture LFL1 units with full traceability documentation; cross-reference matching between LFL1 variants and equivalent safety-time/voltage specifications; technical consultation on LFL1-to-LME migration feasibility; and emergency same-week dispatch for critical plant shutdowns. All units are individually tested prior to shipment.

Quality Control for the LFL1 Range

The LFL1 series presents specific test requirements due to its relay-based sequencer architecture and integrated flame amplifier circuitry. DriveKNMS applies the following test protocol to every LFL1 unit processed:

• Power-on sequence verification: Full burner start sequence simulation (pre-purge → ignition → flame establishment → run) using a calibrated test rig with simulated ionization signal input.
• Safety time measurement: Lockout timing verified against the rated safety time (2s, 3s, 5s, or 8s depending on variant) using a calibrated timer. Tolerance: ±10% of rated value.
• Lockout relay function test: Confirmed lockout on simulated flame failure during run phase; manual reset function verified.
• Flame amplifier sensitivity check: Ionization current threshold tested at minimum detection level per Siemens specification (typically >1µA DC).
• Terminal insulation resistance: Measured at 500V DC between live terminals and earth; minimum 20MΩ required.
• Relay contact resistance: All output relay contacts measured; maximum 100mΩ per contact.
• Visual and mechanical inspection: PCB examined for capacitor degradation, relay contact oxidation, and terminal corrosion — the primary failure modes in aged LFL1 units.
