Siemens Modulpac 6DM1 Modules: 6DM1001-7WA14-0

Technical Dossier

Product Details And Specifications

Siemens Modulpac 6DM1 Series Technical Notes

The Evolution of Modulpac 6DM1 Architecture

The 6DM1 series was designed around a passive backplane bus architecture, where each module slot communicates via a standardized internal bus. Early revisions of the platform (circa 1982–1988) focused on analog signal conditioning and PID control loop execution, with modules operating on ±15 V DC internal rails and supporting 4–20 mA process signals. Mid-generation revisions introduced enhanced diagnostic capabilities and EEPROM-based parameter storage, reducing dependency on external configuration hardware. Later variants incorporated serial communication interfaces compatible with SINEC H1 and PROFIBUS-DP, enabling integration with higher-level SCADA and DCS supervisory layers.

Modulpac 6DM1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Siemens Modulpac 6DM1 series, organized by functional category. Each entry reflects a distinct hardware configuration with a defined role within the control system architecture.

Control & Regulation Modules

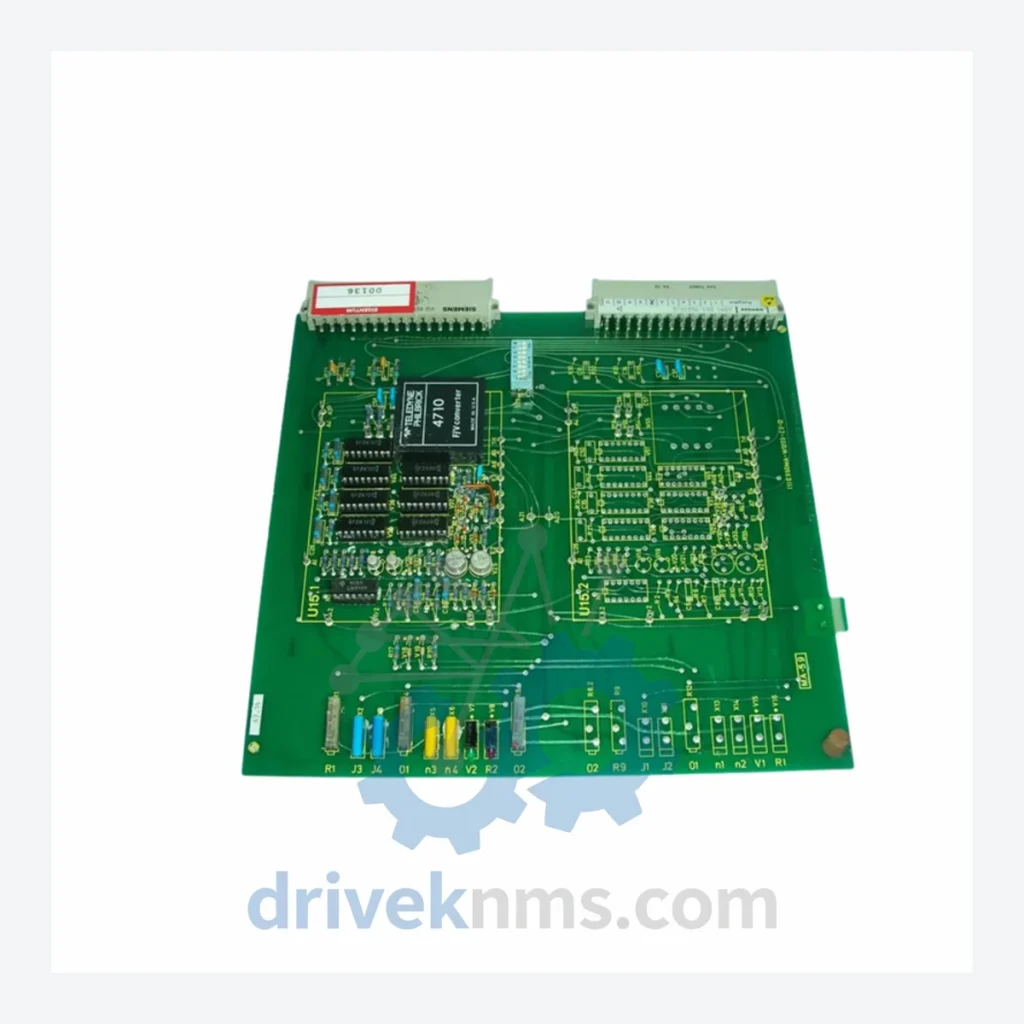

6DM1001-7WA14-0: Regelsystem Modulpac regulation module, analog PID control loop execution unit.
6DM1001-7WA12-0: Single-loop PID controller module, 4–20 mA input/output, EEPROM parameter storage.
6DM1001-7WA13-0: Dual-loop regulation module, cascade control configuration, analog signal processing.
6DM1001-7WA16-0: Advanced regulation module with self-tuning PID algorithm and diagnostic output.
6DM1001-7WA18-0: High-accuracy regulation module, ±0.1% full-scale linearity, for precision process loops.

Analog Input Modules (AI)

6DM1002-7AA01-0: 8-channel analog input module, 4–20 mA, 12-bit resolution, passive backplane bus.
6DM1002-7AA02-0: 16-channel analog input module, thermocouple/RTD compatible, cold junction compensation.
6DM1002-7AA04-0: 4-channel high-speed analog input, 14-bit resolution, for fast-response process variables.
6DM1002-7AA06-0: Differential analog input module, 8-channel, isolated inputs, for high-noise environments.

Digital Input/Output Modules (DI/DO)

6DM1003-7BA01-0: 16-channel digital input module, 24 V DC, sink/source compatible, status LED per channel.
6DM1003-7BA02-0: 32-channel digital input module, 24 V DC, high-density rack configuration.
6DM1003-7CA01-0: 16-channel digital output module, 24 V DC / 0.5 A per channel, short-circuit protected.
6DM1003-7CA02-0: 8-channel relay output module, 230 V AC / 2 A, for valve and actuator control.

Communication & CPU Modules

6DM1004-7DA01-0: SINEC H1 communication adapter module, Ethernet gateway for supervisory integration.
6DM1004-7DA03-0: PROFIBUS-DP slave communication module, 12 Mbit/s, for distributed I/O expansion.
6DM1005-7EA01-0: Central processing unit module, 16-bit architecture, program memory 64 KB EPROM.
6DM1005-7EA02-0: Enhanced CPU module, 32-bit processor, extended memory 256 KB, real-time clock integrated.

Power Supply Modules

6DM1006-7FA01-0: 24 V DC rack power supply module, 10 A output, redundancy-capable with hot-swap support.
6DM1006-7FA02-0: 48 V DC power supply module, for extended-rail rack configurations in high-density installations.

Sourcing Hard-to-Find & Obsolete Modulpac 6DM1 Parts

The Siemens Modulpac 6DM1 series reached official End-of-Life status, and Siemens no longer manufactures or supplies replacement modules through standard distribution channels. For operators of facilities with installed 6DM1 systems — particularly those with remaining operational lifespans of 5–15 years — sourcing certified refurbished modules from specialist suppliers is the primary maintenance strategy.

Quality Control for the Modulpac 6DM1 Range

Each 6DM1 series module processed by DriveKNMS undergoes a structured inspection and functional verification protocol prior to dispatch. The procedure addresses the specific failure modes documented in this series, including backplane connector wear, EEPROM data corruption, electrolytic capacitor degradation, and analog signal drift caused by aging precision resistor networks.
