Siemens S7-200 Series: Comprehensive Module Range and Technical Overview

The Siemens S7-200 is a micro-programmable logic controller (Micro-PLC) platform that has been deployed across global heavy industry since its introduction in the mid-1990s. Its compact form factor, integrated I/O architecture, and deterministic scan-cycle performance made it a standard selection for process control in chemical plants, petroleum refineries, water treatment facilities, and nuclear auxiliary systems. The S7-200 family operates on the STEP 7-Micro/WIN programming environment and supports ladder logic, statement list (STL), and function block diagram (FBD) languages. Installed base counts in the millions of units globally, and the platform remains active in legacy infrastructure where replacement with S7-1200 or S7-1500 is deferred due to capital constraints or process continuity requirements.

The Evolution of S7-200 Architecture

The S7-200 platform progressed through three distinct hardware generations. The first generation (1994–1998) introduced the CPU 21x series with fixed I/O counts and RS-485 PPI communication. These units, including the 6ES7211-0BA22-0XB0 (CPU 211, 6 DI / 4 DO, 24 VDC), operated on firmware versions below 1.x and are incompatible with expansion modules designed for later CPU 22x variants. The second generation (1998–2006) introduced the CPU 22x series with modular expansion capability via the EM bus, support for analog I/O expansion, and enhanced communication options including PROFIBUS-DP via CP 243-5. The third generation consolidated the platform with the CPU 226 XM and introduced higher memory capacity (up to 24 KB program / 10 KB data). Siemens officially announced end-of-sale for the S7-200 in 2017, with end-of-support (repair service) phased out by 2023. Migration paths are documented to the S7-1200 (6ES7 2xx-xxxx-0xB0 series) using the STEP 7 Basic / TIA Portal environment. Compatibility between S7-200 expansion modules and S7-1200 does not exist at the hardware level; full I/O rewiring is required for any migration project.

S7-200 Full Catalog & Functionalities (SKU List)

CPU Modules (Compact Units with Integrated I/O)

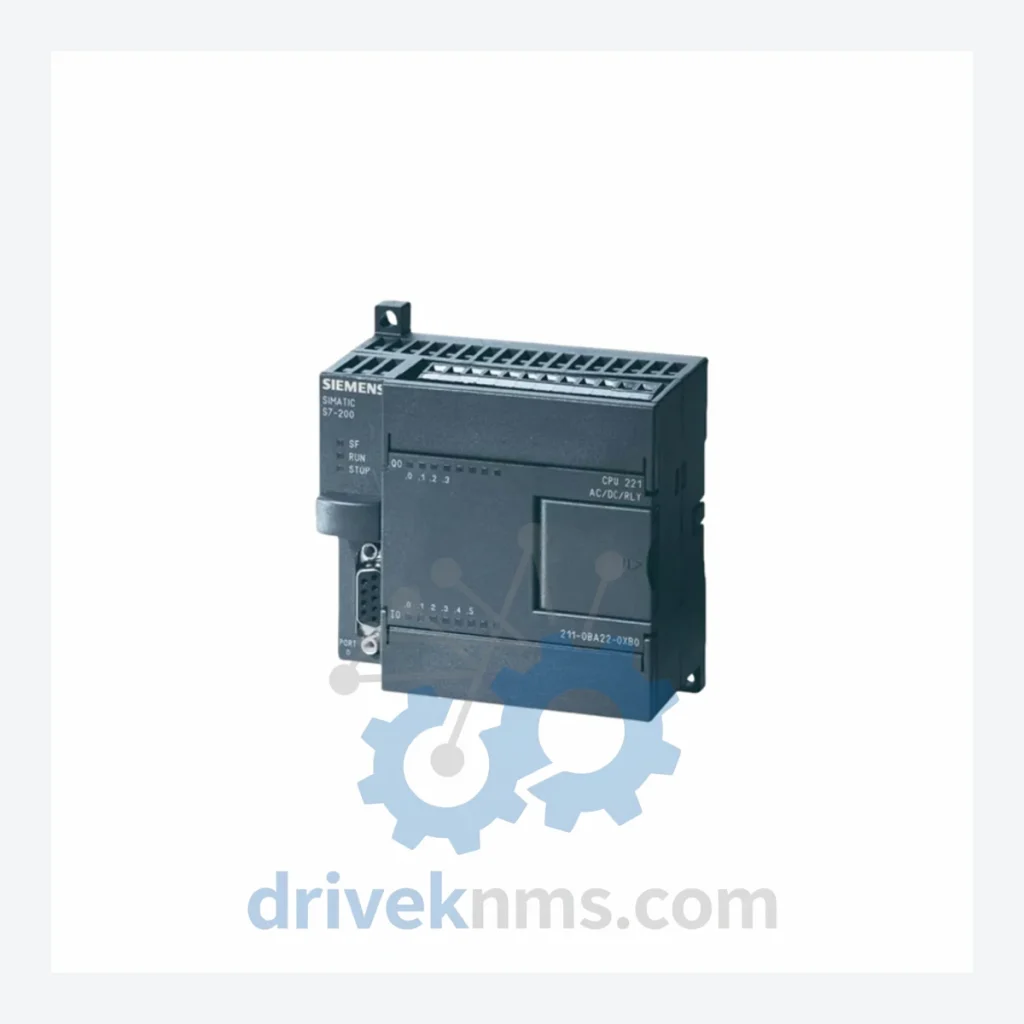

6ES7211-0BA22-0XB0: CPU 211, 6 DI / 4 DO 24VDC, 2 KB prog memory, PPI only
6ES7212-1AB22-0XB0: CPU 212, 8 DI / 6 DO relay, 2 KB prog, PPI/MPI
6ES7214-1AD22-0XB0: CPU 214, 14 DI / 10 DO 24VDC, 4 KB prog, PPI/MPI
6ES7214-1BD22-0XB0: CPU 214, 14 DI / 10 DO relay output variant
6ES7215-2AD23-0XB0: CPU 215, 14 DI / 10 DO, 8 KB prog, built-in analog
6ES7216-2AD23-0XB0: CPU 216, 24 DI / 16 DO 24VDC, 16 KB prog memory
6ES7214-1AE30-0XB0: CPU 224, 14 DI / 10 DO 24VDC, 12 KB prog, 6 comm ports
6ES7214-2AD23-0XB0: CPU 224 XP, 14 DI / 10 DO, 2 analog I/O integrated
6ES7216-2BF22-0XB0: CPU 226, 24 DI / 16 DO relay, 24 KB prog, dual RS-485

Digital Input Expansion Modules (EM DI)

6ES7221-1BF22-0XA0: EM 221, 8 × 24 VDC digital inputs, sink/source
6ES7221-1EF22-0XA0: EM 221, 8 × 120/230 VAC digital inputs

Digital Output Expansion Modules (EM DO)

6ES7222-1BF22-0XA0: EM 222, 8 × 24 VDC transistor outputs, 0.75 A each
6ES7222-1HF22-0XA0: EM 222, 8 × relay outputs, 2 A per point

Analog I/O Expansion Modules (EM AI/AO)

6ES7231-0HC22-0XA0: EM 231, 4 × analog inputs, 12-bit resolution, 0–10 V / 4–20 mA
6ES7232-0HB22-0XA0: EM 232, 2 × analog outputs, 12-bit, voltage or current
6ES7235-0KD22-0XA0: EM 235, 4 AI + 1 AO combined module, 12-bit

Communication Processors

6GK7243-1EX00-0XE0: CP 243-1, Ethernet module for S7-200, TCP/IP, S7 protocol
6GK7243-5DX30-0XE0: CP 243-5, PROFIBUS-DP slave adapter for S7-200

Sourcing Hard-to-Find & Obsolete S7-200 Parts

The S7-200 platform reached end-of-sale in 2017. Standard distribution channels no longer carry new stock for the majority of CPU 21x and early CPU 22x variants. DriveKNMS maintains a dedicated inventory of tested surplus and refurbished S7-200 modules sourced from decommissioned plant equipment, controlled warehouse stock, and verified secondary market channels. For facilities operating S7-200 systems under long-term maintenance contracts — particularly in chemical processing, oil & gas, and water infrastructure — DriveKNMS provides lifecycle extension support including unit-level testing, firmware version verification, and cross-reference matching for discontinued part numbers. Requests for obsolete models including the CPU 211 (6ES7211-0BA22-0XB0), CPU 212, and early EM 221/222 variants are accepted. Lead times and availability are confirmed per inquiry.

Quality Control for the S7-200 Range

S7-200 modules present specific test challenges due to their integrated backplane bus architecture and the absence of hot-swap capability. DriveKNMS applies a structured test protocol for all S7-200 units prior to dispatch. Each CPU module undergoes power-on verification at rated 24 VDC supply, PPI communication handshake test via RS-485 port, program memory read/write cycle validation, and I/O point-by-point functional test under load. Expansion modules (EM series) are tested on a live S7-200 CPU rack to verify EM bus communication integrity and channel-level signal accuracy. Analog modules are calibrated against a traceable reference source. All units are inspected for capacitor condition, connector pin integrity, and conformal coating status. Test records are retained per unit serial number.
