Siemens S7-200 Series: Comprehensive Module Range and Technical Overview

The Siemens S7-200 is a micro-PLC platform that achieved widespread deployment across global heavy industry sectors including petrochemical plants, nuclear auxiliary systems, oil refineries, water treatment facilities, and discrete manufacturing lines. Its compact form factor, integrated I/O architecture, and deterministic scan cycle made it the default choice for standalone machine control and distributed process automation from the mid-1990s through the 2010s. Installed base estimates place S7-200 units in the tens of millions globally, with a significant proportion still operating in brownfield environments where replacement is cost-prohibitive. The platform's longevity has created a sustained demand for spare parts, particularly expansion modules such as the 6ES7253-1AA22-0XA0 positioning module.

The Evolution of S7-200 Architecture

The S7-200 platform was introduced by Siemens in 1994 as a successor to the S5-90U/95U micro-PLC line. The original CPU 210/212/214 generation used a proprietary PPI (Point-to-Point Interface) serial bus for HMI and inter-device communication. The second generation (CPU 221/222/224/226) introduced expanded local I/O, MPI compatibility, and support for EM (Expansion Module) buses operating at 5 VDC backplane logic. The third generation added the CP 243-1 Ethernet module and PROFIBUS-DP adapters, extending the platform into networked SCADA architectures.

Compatibility constraints are significant: CPU 21x units cannot address EM modules designed for CPU 22x. The EM bus connector pinout changed between generations. Firmware versions on CPU 224XP and CPU 226 introduced instruction set extensions (e.g., PID auto-tune, motion control via PTO/PWM) that are not backward-compatible with CPU 221. The 6ES7253-1AA22-0XA0 is a second/third-generation EM module requiring a CPU 224 or higher host unit.

Siemens officially discontinued the S7-200 product line in 2017, with the S7-1200 designated as the migration target. However, no direct firmware or hardware migration path exists; replacement requires full re-engineering of the control program in TIA Portal.

S7-200 Full Catalog & Functionalities (SKU List)

CPU / Controller Modules

• 6ES7211-0AA23-0XB0: CPU 221 — 6 DI / 4 DO, 6 KB program memory, no EM expansion port.
• 6ES7212-1AB23-0XB0: CPU 222 — 8 DI / 6 DO, supports up to 2 EM modules.
• 6ES7214-1AD23-0XB0: CPU 224 — 14 DI / 10 DO, supports up to 7 EM modules, PTO/PWM outputs.
• 6ES7214-2AD23-0XB0: CPU 224XP — dual RS-485 ports, analog I/O onboard, enhanced motion control.
• 6ES7216-2AD23-0XB0: CPU 226 — 24 DI / 16 DO, maximum I/O density for S7-200 platform.

Digital I/O Expansion Modules (DI/DO)

• 6ES7221-1BF22-0XA0: EM 221 — 8 × 24 VDC digital inputs.
• 6ES7221-1BH22-0XA0: EM 221 — 16 × 24 VDC digital inputs.
• 6ES7222-1BF22-0XA0: EM 222 — 8 × 24 VDC digital outputs, transistor type.
• 6ES7222-1HF22-0XA0: EM 222 — 8 × relay digital outputs, 2A per channel.
• 6ES7223-1BF22-0XA0: EM 223 — 4 DI / 4 DO combination module, 24 VDC.
• 6ES7223-1BH22-0XA0: EM 223 — 8 DI / 8 DO combination, transistor outputs.
• 6ES7223-1PH22-0XA0: EM 223 — 8 DI / 8 DO combination, relay outputs.

Analog I/O Expansion Modules (AI/AO)

• 6ES7231-0HC22-0XA0: EM 231 — 4 × analog inputs, 12-bit resolution, 0–10 V / 0–20 mA.
• 6ES7232-0HB22-0XA0: EM 232 — 2 × analog outputs, 12-bit, ±10 V / 0–20 mA.
• 6ES7235-0KD22-0XA0: EM 235 — 4 AI / 1 AO combination, configurable input ranges.

Positioning / Motion Control Module

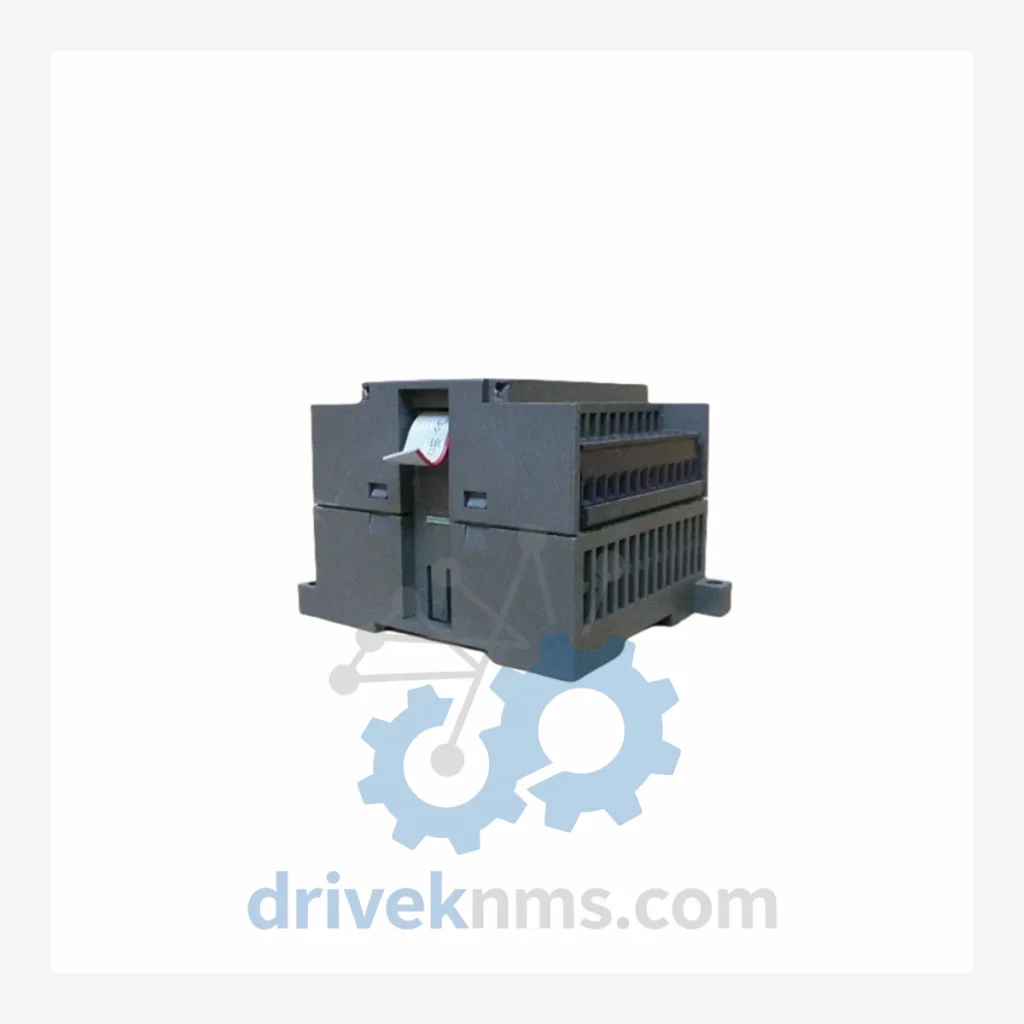

• 6ES7253-1AA22-0XA0: EM 253 Position Control Module — single-axis open-loop stepper/servo positioning via PTO output; supports absolute and relative positioning modes, reference point approach, and speed/position profiles. Requires CPU 224 or higher. Compatible with STEP 7-Micro/WIN V4.0 SP5 and above.

Communication Modules

• 6ES7241-1AA22-0XA0: EM 241 Modem Module — dial-up PSTN modem for remote diagnostics.
• 6GK7243-1EX01-0XE0: CP 243-1 — Industrial Ethernet adapter, 10/100 Mbit/s, S7 communication.
• 6GK7243-2AX01-0XA0: CP 243-2 — AS-Interface master module for S7-200.

Sourcing Hard-to-Find & Obsolete S7-200 Parts

Since Siemens ceased production of the S7-200 line in 2017, authorized distribution channels no longer carry new stock for the majority of EM modules, including the 6ES7253-1AA22-0XA0. DriveKNMS maintains a dedicated inventory of tested surplus and refurbished S7-200 modules sourced from decommissioned plant equipment, authorized liquidations, and long-term storage stock. All units are catalogued by firmware revision and hardware version to ensure cross-compatibility with the customer's existing CPU host unit. For end-users operating S7-200 systems beyond the standard 10-year spare parts support window, DriveKNMS provides lifecycle extension services including module-level repair, functional equivalency assessment, and multi-year supply agreements. Customers requiring a bill of materials for a full S7-200 rack replacement are encouraged to submit their complete part list for consolidated sourcing.

Quality Control for the S7-200 Range

S7-200 expansion modules communicate with the CPU via a 5 VDC EM bus using a proprietary backplane protocol. Failure modes specific to this architecture include bus termination degradation, EEPROM parameter corruption, and output driver MOSFET failure on high-cycle DO modules. DriveKNMS applies the following test protocol to all S7-200 modules prior to dispatch:

• Backplane bus signal integrity verification using a reference CPU 224XP test rig.
• Full I/O channel functional test under rated load (24 VDC / rated current per channel).
• For the 6ES7253-1AA22-0XA0: PTO output waveform verification at 20 kHz maximum pulse frequency, position register read/write cycle test, and reference point seek sequence execution.
• Analog module calibration check against NIST-traceable reference signals (±0.1% accuracy threshold).
• 48-hour burn-in at operating temperature range (0–55°C) for refurbished units.
• Final inspection against Siemens hardware revision documentation to confirm component authenticity.
