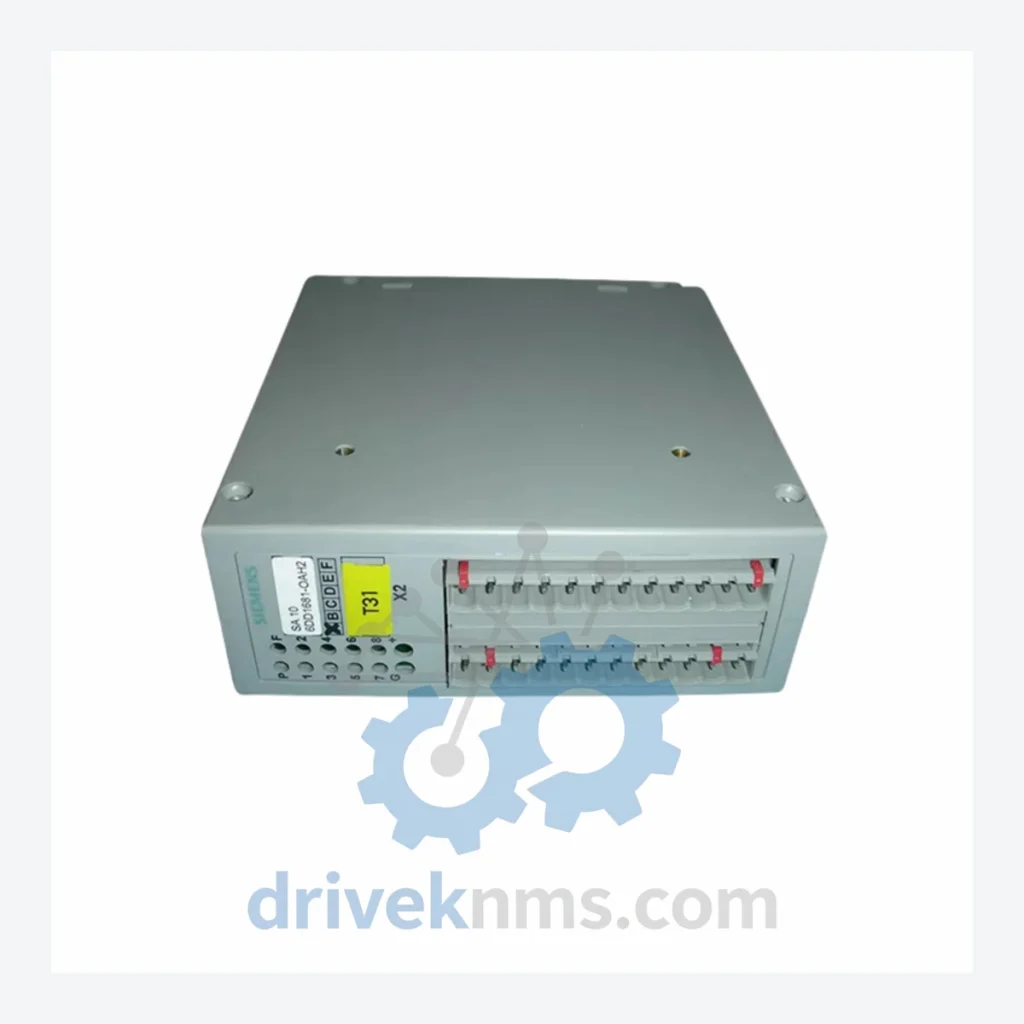

Siemens SIMADYN D 6DD1681 Interface Modules – 6DD1681-0AH2

Technical Dossier

Product Details And Specifications

Siemens SIMADYN D Series Technical Notes

The Evolution of SIMADYN D Architecture

SIMADYN D was introduced by Siemens in the mid-1980s as a successor to the analog SIMADYN C platform, transitioning process control logic to fully digital, software-configurable modules. The architecture is built around a VMEbus-compatible rack structure with a proprietary Siemens extension layer for real-time determinism. Early generations of the 6DD1681 interface modules used parallel bus communication with fixed-function hardware logic. Subsequent revisions introduced configurable firmware, expanded channel counts, and compatibility with PROFIBUS-DP for integration with newer Siemens SIMATIC S7 and PCS 7 environments.

The 6DD16xx module family spans processor cards (6DD1600), I/O modules (6DD1660, 6DD1661, 6DD1662), communication adapters (6DD1681), and power supply units (6DD1682). As Siemens transitioned its DCS portfolio toward SIMATIC PCS 7 and later SIMATIC PCS neo, the SIMADYN D platform entered end-of-life status, with official spare parts support progressively withdrawn. Many 6DD1681 variants are now classified as obsolete (Siemens product lifecycle status: Discontinued), making third-party sourcing the primary supply channel for ongoing maintenance.

SIMADYN D 6DD1681 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented 6DD1681 interface module range within the SIMADYN D system. Each entry reflects a distinct hardware configuration or communication protocol variant:

6DD1681-0AH2: Interface module for SIMADYN D rack; parallel bus communication, 24V DC supply input.
6DD1681-0AH0: Base interface module variant; earlier firmware revision, limited channel configuration.
6DD1681-0AH1: Intermediate revision with expanded diagnostic register support.
6DD1681-0AH3: Enhanced interface module with extended temperature operating range (-10 to +60 deg C).
6DD1681-0AH4: Interface module with PROFIBUS-DP slave port integration.
6DD1681-0AH5: Dual-port interface variant for redundant backplane configurations.
6DD1681-0AH6: High-speed interface module; increased data throughput for fast-scan control loops.
6DD1681-0AJ0: Interface module with optical fiber communication port for electrically isolated rack-to-rack links.
6DD1681-0AJ1: Fiber-optic interface, extended cable length support up to 1000m.
6DD1681-0AK0: Interface module with integrated RS-485 serial port for legacy HMI connectivity.
6DD1681-0AK1: RS-485 variant with configurable baud rate (9600 to 115200 bps).
6DD1681-0AL0: Interface module for SIMADYN D to SIMATIC S5 coupling via 3964R protocol.
6DD1681-0AL1: S5 coupling interface with RK512 block transfer support.
6DD1681-0AM0: Interface module for SIMADYN D to SIMATIC S7 MPI bus coupling.
6DD1681-0AM1: S7 MPI interface with extended node addressing up to 126 nodes.
6DD1681-0AN0: Interface module for inter-rack synchronization; clock master/slave configurable.
6DD1681-0AN1: Synchronization interface with hardware interrupt output for time-critical applications.

Quality Control for the SIMADYN D 6DD1681 Range

Each 6DD1681 interface module processed by DriveKNMS undergoes a structured inspection and functional test protocol specific to SIMADYN D backplane architecture. The test procedure includes visual inspection of the VMEbus connector pins and proprietary Siemens edge connector for mechanical damage, oxidation, and pin alignment. Firmware version identification is performed via the module's onboard EPROM or flash memory read-out. Functional testing is conducted in a live SIMADYN D rack environment using a reference CPU module (6DD1600 series) to verify backplane communication integrity, interrupt response timing, and channel-level I/O signal accuracy. For communication-variant modules (PROFIBUS, fiber-optic, MPI), protocol-level loopback tests are executed to confirm data frame integrity and error-free transmission at rated baud rates. All tested units are assigned a condition grade (Tested/Refurbished/As-Removed) and shipped with an inspection report.
