Siemens 6AV6640-0BA11-0AX0 HMI Operator Panel – Obsolete SIMATIC OP 77A Spare Part

Technical Dossier

Product Details And Specifications

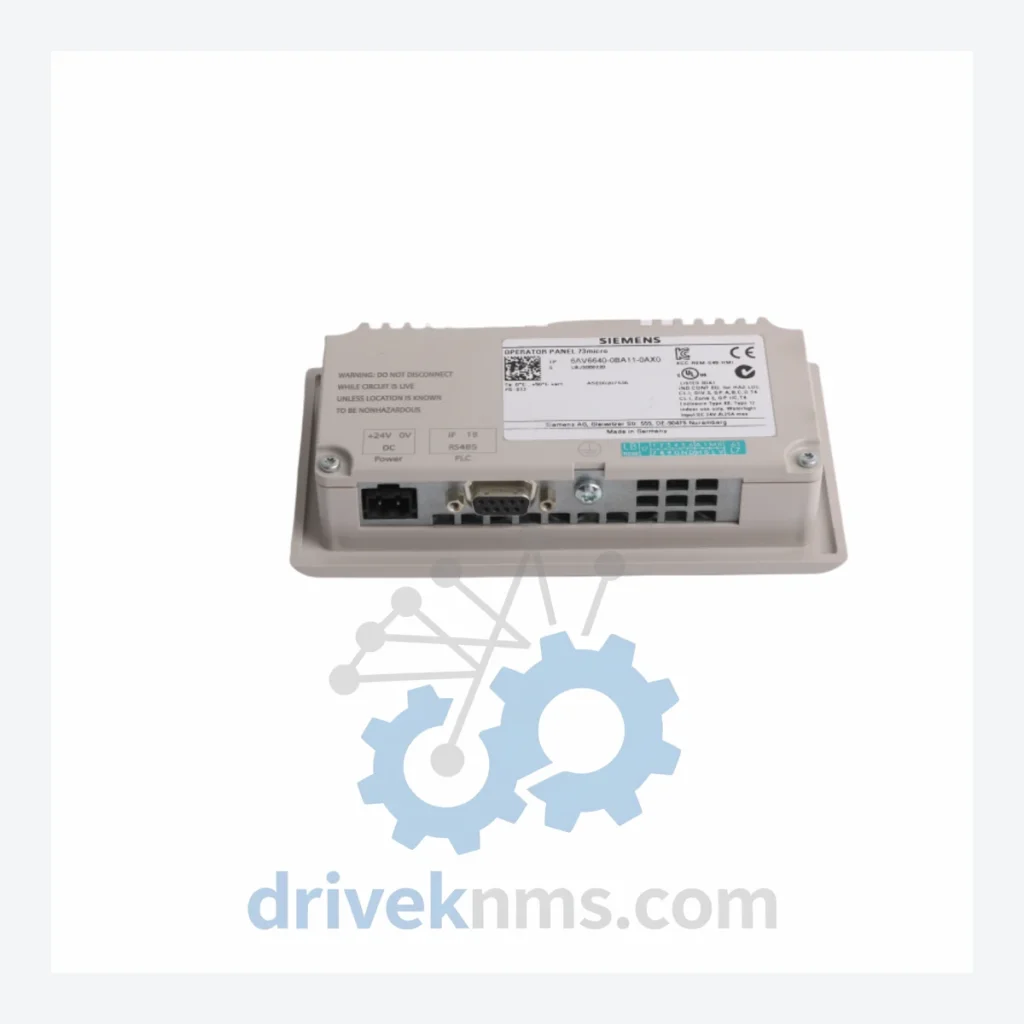

Siemens 6AV6640-0BA11-0AX0 HMI Operator Panel – Obsolete SIMATIC OP 77A Spare Part

Technical Specifications

Note: Parameters are sourced from Siemens published documentation. No values have been estimated or fabricated. For application-specific confirmation, contact our technical team.

Solving the Discontinued Hardware Crisis

The 6AV6640-0BA11-0AX0 was deployed extensively in SIMATIC S7-300 and S7-400 control architectures throughout the 2000s and early 2010s — in automotive body shops, food processing lines, water treatment facilities, and pharmaceutical packaging systems. These installations were engineered for 20–30 year operational lifespans. The HMI hardware was never intended to be the weak link.

Siemens' discontinuation of the OP 77A series creates a structural vulnerability: the underlying PLC logic, field wiring, and process instrumentation remain fully functional, but a single failed operator panel can render the entire control station inoperable. Because the 6AV6640-0BA11-0AX0 communicates via MPI/PROFIBUS DP and is configured through WinCC flexible — a software environment that Siemens has also moved away from — there is no modern plug-in substitute that does not require re-engineering the HMI project from scratch.

For plant managers operating under capital expenditure constraints, the calculus is straightforward: a verified spare unit of the 6AV6640-0BA11-0AX0 extends the productive life of the surrounding automation asset by 5 to 10 years, at a fraction of the cost of a system migration. The engineering risk is near zero. The operational continuity benefit is immediate.

How to extend your legacy SIMATIC system life by 5–10 years with minimal capital outlay:

Condition & Reliability Assurance

Every 6AV6640-0BA11-0AX0 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before it leaves our facility. This process was developed specifically for aging industrial electronics where latent failure modes are not visible during basic power-on testing.

1. Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mechanism in operator panels of this generation. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Units with degraded capacitors are either reconditioned or rejected.
2. Firmware Version Verification: The installed firmware version is documented and cross-referenced against known compatibility matrices for SIMATIC S7-200, S7-300, and S7-400 CPUs. Mismatched firmware is a common source of communication faults post-replacement.
3. Pin and Connector Corrosion Inspection: All interface connectors — MPI port, power terminals, and membrane keypad ribbon connections — are inspected under magnification for oxidation, mechanical deformation, and contact resistance anomalies.
4. Display and Keypad Functional Test: Full display pixel mapping and keypad actuation testing is performed. Dead pixels and non-responsive keys are disqualifying defects.
5. Burn-In and Communication Test: Units are powered continuously for a minimum period and subjected to live MPI communication testing where test equipment permits. This screens for intermittent faults that do not appear during static inspection.

Key Features for System Maintenance

• Drop-in replacement: The 6AV6640-0BA11-0AX0 installs directly into the existing panel cutout and connects to the existing MPI/PROFIBUS cable. No mechanical modification is required.
• No reprogramming required: The HMI project is stored in the connected S7 CPU or on a memory card, not in the operator panel itself. A replacement unit loads the existing project on first connection — no WinCC flexible engineering workstation is needed on-site during the swap.
• No control system re-engineering: Because this is a hardware-identical replacement, the PLC program, I/O mapping, and process interlocks remain completely unchanged. Changeover time is measured in minutes, not days.
• Avoids software migration costs: Upgrading to a current-generation Siemens HMI requires migrating the WinCC flexible project to TIA Portal — a process that routinely requires 40–120 engineering hours and introduces regression testing obligations. A spare 6AV6640-0BA11-0AX0 eliminates this entirely.

How do I know the unit is genuine and not a counterfeit?
All units are sourced from documented industrial decommissioning projects or authorized secondary market channels. We provide unit-level traceability documentation on request, including source origin and inspection records. Siemens product markings, serial number formats, and hardware construction are verified as part of our intake process.

Can you supply units in bulk for long-term spares programs?
Yes. Contact us directly to discuss quantity availability, pricing, and long-term storage options. We work with maintenance engineering teams and MRO procurement departments on structured spares programs for legacy Siemens HMI hardware.
